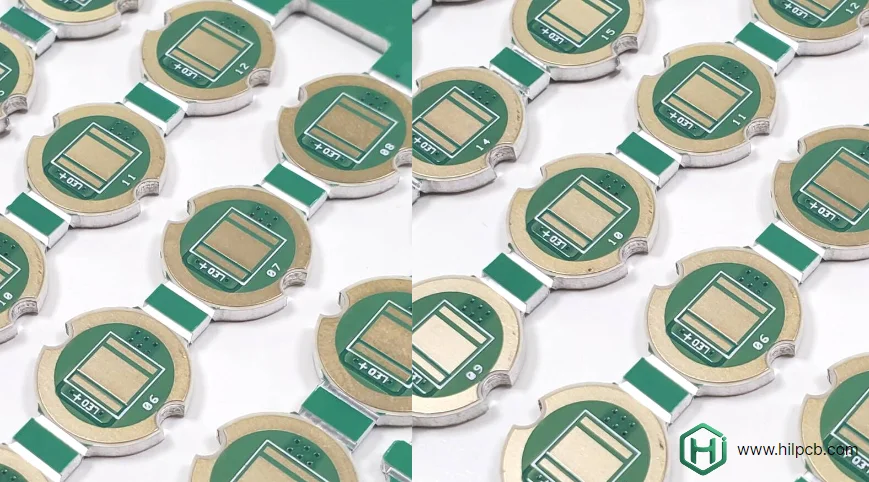

Quality control is the backbone of reliable aluminum PCB manufacturing. In high-performance electronics — where heat dissipation, electrical integrity, and mechanical stability define success — precision and consistency determine product longevity.
At HILPCB, quality assurance runs through every manufacturing stage. From raw material verification to final testing, our certified quality systems (ISO 9001, IATF 16949) and advanced inspection tools ensure that every PCB leaving our facility meets the highest international standards.
1. Foundation of the Quality Management System
Professional PCB production depends on structured, documented, and auditable quality frameworks.
ISO 9001: Provides the foundation for process documentation, customer requirement tracking, and corrective actions. Regular audits ensure sustained compliance and improvement across fabrication, SMT assembly, and logistics.
IATF 16949: Expands ISO 9001 for automotive applications. Includes APQP (Advanced Product Quality Planning), PPAP (Part Approval), and SPC (Statistical Process Control) — essential for automotive and industrial metal-core PCB production.
UL Recognition: Verifies compliance with flammability, insulation, and material stability requirements. UL-listed aluminum PCBs are required for products in North American markets such as lighting and power supplies.
IPC Standards:
- IPC-6012: Qualification and performance specs for rigid boards
- IPC-A-600: Visual acceptability standards
- IPC-610: Assembly workmanship criteria
These frameworks unify terminology and expectations between manufacturers and clients, ensuring measurable, transparent quality outcomes.

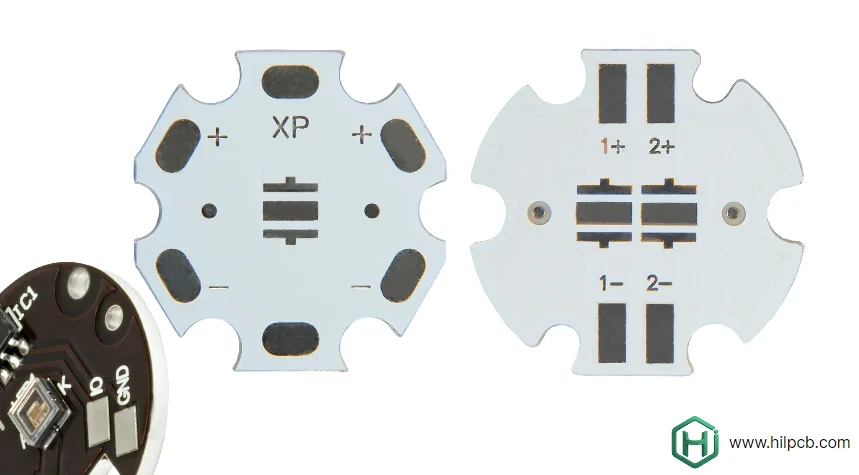

2. Incoming Material Verification
Quality begins before fabrication. All base materials undergo strict incoming inspection.
Aluminum Substrates: Thickness, flatness, and alloy composition are verified using optical and spectroscopic analysis. Surface integrity is inspected for scratches or oxidation that could impair adhesion.
Dielectric Layers: Thermal conductivity (1–8 W/mK), dielectric strength, and thickness uniformity directly affect thermal resistance — crucial for high-thermal PCBs.
Copper Foil: Thickness (1–10 oz), purity, and surface treatment are checked to guarantee conductivity and adhesion performance.
Components and Consumables: Assembly materials are validated for authenticity and storage conditions. Moisture-sensitive components follow MSL-handling requirements to ensure reliability during turnkey assembly.
Supplier Qualification: Vendors are scored via audits, capability assessments, and delivery performance tracking — maintaining long-term stability across the supply chain.
3. In-Process Quality Control
Each fabrication stage includes multi-point inspection and SPC monitoring to detect deviations early.
Lamination Control: Temperature, pressure, and curing profiles are tracked digitally. Cross-section sampling validates adhesion, void-free bonding, and dielectric thickness consistency.
Etching & Pattern Accuracy: AOI systems verify trace width and spacing down to 100 µm. Fine-line precision parallels HDI PCB standards, ensuring dimensional integrity across complex circuits.
Drilling & Via Formation: Automated drill inspection ensures hole diameter, alignment, and wall smoothness meet specifications. Burr-free drilling prevents plating defects.
Surface Finishing: Thickness, solderability, and uniformity are tested on every lot. Finishes such as ENIG and OSP undergo wetting tests to ensure long-term solder reliability.
All production data — operator ID, machine logs, material batches — feed into a traceable digital database for analysis and audit readiness.
4. Electrical and Functional Testing
Functional reliability is confirmed through a comprehensive test suite before shipment.
- Continuity and Isolation Testing: Flying probe and fixture-based testers confirm connectivity and insulation integrity up to 3 kV.
- Impedance Control: Time-domain reflectometry (TDR) ensures trace impedance stability for high-frequency PCBs and RF systems.
- Netlist Verification: Automated netlist comparison guarantees correct routing.
- **Functional Testing (Post-Assembly):**In-circuit and boundary-scan tests validate assembled boards during box-build assembly or integrated product testing.
These measures ensure every board performs as intended under real-world electrical loads.

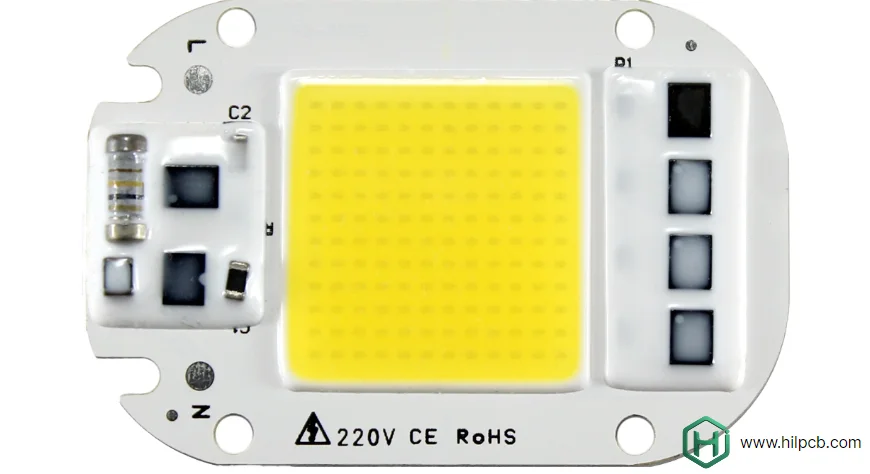

5. Thermal Validation and Reliability Testing
Thermal validation is one of the most critical aspects of aluminum PCB manufacturing, directly determining how well a board performs under sustained electrical and thermal loads. At HILPCB, every design undergoes rigorous reliability testing to verify not just conductivity — but long-term stability, material integrity, and solder joint endurance.
1. Thermal Resistance & Conductivity Measurement Each aluminum PCB is characterized using thermal analyzers and power cycling tests to quantify °C/W values.
- Thermal Resistance (Rθ): Measured across dielectric layers using precision heat flow meters (range: 0.3–3.0 °C/W).
- Thermal Conductivity: Verified by laser flash analysis to ensure accurate W/mK ratings for dielectric materials. These tests confirm that real-world heat dissipation matches simulation models — critical for LED, automotive, and power-control designs.
2. Environmental Stress Testing Reliability validation extends beyond static measurement. Aluminum PCBs are tested under simulated operational environments to evaluate structural and interconnect durability.
- Thermal Cycling: -40 °C to +150 °C, 1,000 cycles, validating dielectric and solder joint fatigue resistance.
- Thermal Shock: Rapid 10 s transitions between extremes for aerospace and EV control boards.
- Power Cycling: Continuous on/off load tests replicate LED driver or inverter duty cycles.
- High-Humidity Storage: 85 °C / 85% RH testing confirms oxidation resistance and solder mask adhesion.
3. Long-Term Reliability & Failure Analysis Post-test evaluations include cross-section microscopy, delamination scanning, and IR thermography to identify any microcracks, voids, or CTE (Coefficient of Thermal Expansion) mismatches. Advanced FMEA (Failure Mode and Effects Analysis) methods help isolate root causes of degradation — such as copper fatigue or dielectric breakdown — and feed that data back into our Design for Reliability (DfR) framework.
These validation procedures ensure that each aluminum PCB maintains consistent thermal performance and mechanical stability across its entire service life. Whether deployed in high-power LED modules, EV motor drivers, or industrial automation systems, HILPCB’s reliability testing guarantees performance consistency under the harshest operating environments.
6. Visual and Dimensional Inspection
Automated Optical Inspection (AOI): Performs 100% inspection for missing copper, misregistration, or contamination. AI-based algorithms improve detection accuracy with ongoing learning.
Manual Workmanship Verification: Trained inspectors (IPC-A-600 certified) evaluate solder mask, silkscreen, and edge quality under magnification.
Cross-Section Analysis: Microsectioning reveals lamination quality, copper adhesion, and via integrity — critical for ongoing process monitoring.
X-ray Inspection: Non-destructive verification of hidden structures such as thermal vias and BGA joints.
Dimensional Accuracy: CMM and optical comparators validate board size, hole positions, and warpage tolerances to ensure assembly compatibility.
7. Documentation, Traceability, and Continuous Improvement
Traceability links every production batch to material lots, machine settings, operators, and inspection results. This database-driven system simplifies audits, warranty tracking, and customer validation.
Certificates of Conformance (C of C): Delivered with every shipment, summarizing all material, test, and dimensional data.
CAPA Systems: Corrective and Preventive Actions turn detected issues into structured improvement cycles. Root-cause analysis, containment, and preventive measures are tracked to closure.
Statistical Analysis: SPC charts and capability indices (Cpk) identify early trends, ensuring process stability and predictability. Regular management reviews align improvement initiatives with quality objectives and customer feedback.
Conclusion
Quality control in aluminum PCB manufacturing is more than inspection — it’s an engineering discipline that determines long-term reliability, safety, and customer trust. A true high-performance PCB is built on verified materials, precise process data, and continuous validation at every production stage.
At HILPCB, we take a preventive approach to quality. Every parameter — from substrate preparation and lamination pressure to solderability testing and electrical validation — is digitally monitored, analyzed, and archived for traceability. This data-driven system allows our engineers to detect deviations before they impact yield, ensuring every board meets the strictest manufacturing reliability standards.
Whether you require small-batch prototyping or large-scale production, our aluminum PCB manufacturing and quality control systems guarantee stable results, fast turnaround, and full documentation support. Partner with HILPCB to experience how disciplined process control translates into consistent product performance, compliance, and long-term supply confidence.
