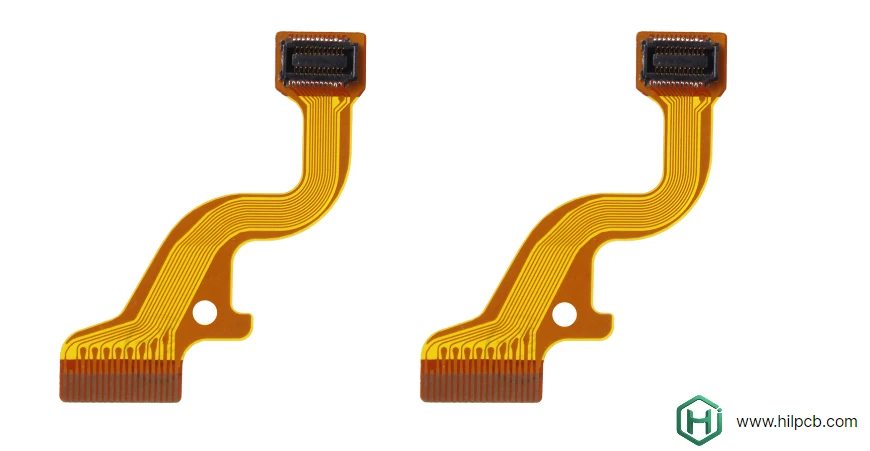

In modern electronics, the connection between flexible and rigid circuits defines both performance and reliability. Flexible connector PCBs serve as critical interconnects linking sensors, displays, or power modules within compact assemblies. But real reliability doesn’t come from the connector alone—it comes from manufacturing every related PCB within the same controlled process chain.
At HILPCB, we provide fully integrated flexible connector PCB manufacturing alongside rigid, flex, and rigid-flex PCB production. By keeping all PCB types under one certified facility, we ensure mechanical compatibility, precise impedance control, and consistent assembly performance across the entire electronic system.
Integrated Connector PCB Engineering

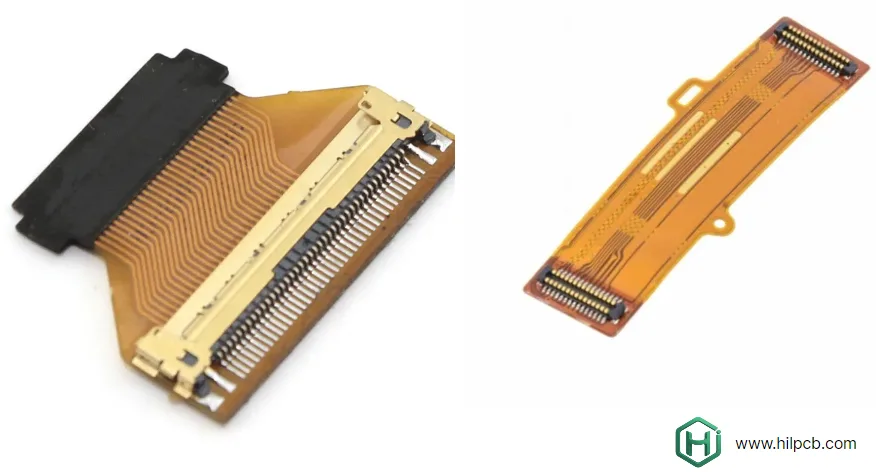

Flexible connector PCBs combine circuit flexibility with reinforced connection zones, allowing smooth transition between flexible sections and rigid mounting points. Common configurations include ZIF tails, reinforced solder areas, and rigid-flex transitions.
Our engineering approach covers:
- ZIF-compatible gold fingers (2–6 µm Au over Ni) for stable engagement
- Polyimide or FR4 stiffeners (0.2–0.3 mm) ensuring precise insertion force
- Controlled impedance for high-speed lines (USB, MIPI, LVDS)
- Direct bonding (ACF, hot-bar solder) for glass or flex-to-board applications
These design strategies ensure long-term durability and simplified SMT assembly during high-volume production.
Dimensional Precision and Quality Control
Every connector tail and stiffened zone must meet exact tolerances to guarantee proper mating. We maintain:
- Pad alignment: ±0.05 mm
- Stiffener placement: ±0.10 mm
- Total tail thickness: 0.2–0.3 mm including adhesive
- 100% AOI inspection and gold-thickness verification via XRF
Testing includes electrical continuity, contact resistance (<100 mΩ), and flex endurance for repeated insertions. Environmental qualification covers humidity, temperature cycling, and mechanical bending per IPC-6013 and IPC-A-610 Class 3.
Application-Driven Interconnect Solutions
Flexible connector PCBs play a key role in:
- Consumer Devices: smartphones, foldable screens, cameras, and wearables
- Automotive Systems: instrument clusters, ADAS sensors, and infotainment modules
- Medical Devices: diagnostic probes, portable ECGs, sterilizable flex assemblies
- Industrial Automation: sensors, robotics, and control units in high-vibration environments
We also produce matching rigid boards, ensuring mechanical fit and electrical reliability between mating PCBs within the same design.
Cost and Manufacturing Integration Advantages
Managing multiple PCB vendors often leads to dimensional mismatches, signal noise issues, and extended lead times. By producing flexible connector PCBs, rigid boards, and rigid-flex assemblies in one facility, HILPCB delivers measurable advantages:
- Guaranteed connector fit across all board types
- Unified impedance and stack-up control across mating circuits
- Simplified logistics and synchronized production schedules
- Consistent materials, finishes, and certifications
- Reduced assembly costs through turnkey coordination
This system-level control minimizes compatibility risks while improving time-to-market efficiency.
HILPCB — One Source for Every PCB You Need
As a full-service PCB manufacturer, HILPCB goes beyond flexible connector fabrication. We design, fabricate, and assemble every PCB type—including rigid, flex, rigid-flex, HDI, high-frequency, aluminum, and ceramic boards—within one controlled supply chain.
This unified production approach ensures that your flexible connector PCBs are not only reliable on their own but perfectly compatible with the entire circuit system they connect to. Whether your project requires fine-pitch ZIF tails, high-speed flex interconnects, or complete system-level PCB assembly, HILPCB provides the engineering continuity and manufacturing precision to make your products perform flawlessly.
