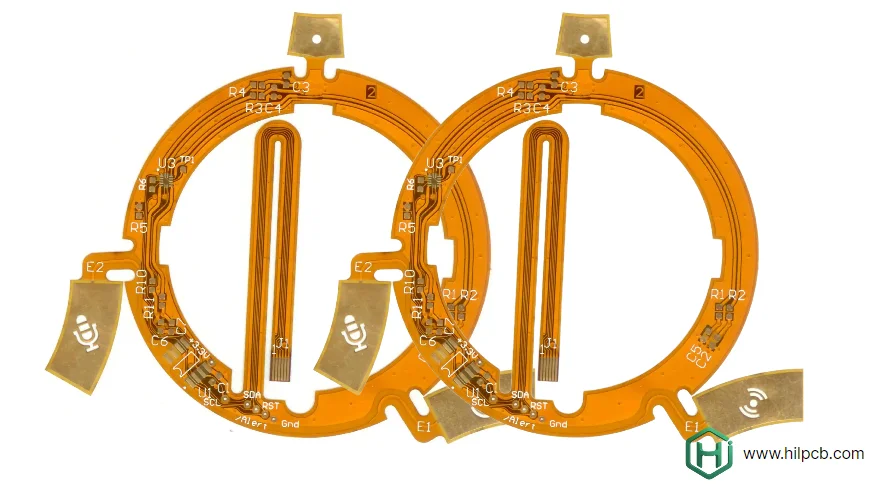

Flexible PCBs expand what product engineers can achieve when electrical interconnects must move, fold, or fit into non-planar structures. Instead of replacing rigid boards, flex circuits complement them — enabling reliable connections inside compact housings, rotating modules, and high-vibration assemblies where cables and connectors introduce failure risks.
At HILPCB, we manufacture 1–16 layer flexible PCBs with controlled impedance, adhesiveless constructions, and precision coverlay processing. Our engineering team works closely with OEMs to align mechanical flexibility, electrical performance, and mass-production reliability from the first prototype through scalable volume delivery.
Understanding Flexible PCB Technology
Flexible printed circuit boards represent a fundamental shift from rigid FR4 PCB construction. Built on flexible polyimide substrates rather than rigid fiberglass, these circuits bend repeatedly without electrical failure. This flexibility enables entirely new product architectures.
Core advantages of flexible PCBs:
- 3D Form Factor Freedom: Circuits conform to curved housings, fold around components, or flex during operation
- Weight Reduction: Eliminating connectors and rigid boards reduces weight by 60-70% compared to cable assemblies
- Reliability Enhancement: Fewer interconnects mean fewer potential failure points, critical for high-vibration environments
- Space Efficiency: FPC boards maximize space utilization in compact devices through folding and stacking
Material foundation:
The substrate material determines flexible PCB performance. Polyimide film provides the ideal balance of flexibility, thermal stability (-200°C to +300°C), and electrical properties. Copper foil laminated to polyimide forms the conductive layer, with thickness ranging from 9μm to 70μm depending on current requirements and flexibility needs.
Flexible PCB Design Principles
Designing flexible circuit boards requires different considerations than rigid PCBs. Mechanical stress, bend radius, and copper ductility become critical parameters affecting reliability.
Bend Radius Calculation Minimum bend radius depends on total thickness and copper weight. Dynamic flexing applications—where the circuit repeatedly bends during operation—require 10× total thickness minimum. Static flex designs, bent only during assembly, can use 6× thickness. Exceeding these limits causes copper cracking and electrical failure.
Trace Routing Strategy Traces should run perpendicular to bend axis when possible, minimizing stress concentration. In bend regions, reduce trace width slightly to increase flexibility. Avoid placing vias in high-stress areas, as via barrels are rigid and prone to cracking under flexing.
Layer Stack-up Optimization Multilayer flexible PCBs balance routing density against flexibility. Each additional layer increases thickness and reduces bend capability. Strategic placement of copper layers around a neutral axis minimizes stress during bending. Adhesiveless constructions further reduce thickness and improve flexibility.
Stiffener Application Areas requiring component mounting or connector attachment need reinforcement. Polyimide or FR4 stiffeners laminate to flexible sections, providing rigid platforms where needed. Proper stiffener design creates gradual stiffness transitions, preventing stress concentration at boundaries.

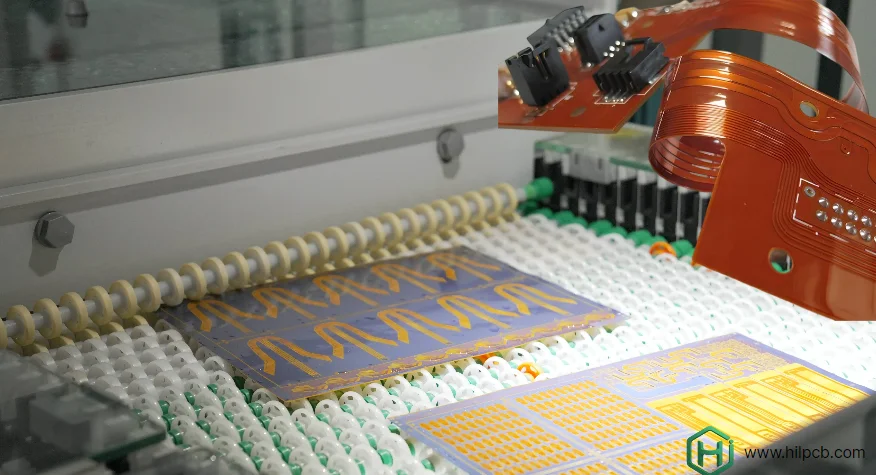

Manufacturing Process for Flexible PCB
Our flexible PCB manufacturer facility employs specialized processes optimized for thin, flexible materials. Standard rigid PCB equipment cannot handle the unique challenges of flexible substrates.
Material Handling Excellence Thin polyimide films (12.5μm to 125μm) require gentle handling. Vacuum hold-down systems secure material during processing without mechanical stress. Support carriers maintain flatness through imaging and etching steps, then remove before final processing.
Precision Imaging and Etching High-resolution photolithography defines circuit patterns with tolerances down to 75μm line width. Controlled chemical etching removes copper while maintaining trace profile and preserving copper ductility essential for repeated flexing. Automated process monitoring ensures consistency across production.
Coverlay Lamination Flexible coverlay—polyimide film with adhesive—protects completed circuits while maintaining flexibility. Precision cutting exposes pads for component attachment and connectors. Lamination under controlled temperature and pressure ensures proper adhesive cure without material distortion.
HILPCB — Your Flexible PCB Partner
Flexible circuit success doesn’t end with fabrication — it depends on a supplier who understands how mechanics, materials, and assembly interact over product lifetime. HILPCB supports customers with:
- Engineering co-development & stack-up optimization
- High-mix to scalable mass-production capability
- Full traceability, electrical test & flex-cycle validation
- Turnkey assembly for complete ready-to--integrate solutions
Whether you are enhancing reliability in automotive sensing, shrinking a wearable form factor, or enabling articulation in consumer devices, our 1–16L flexible PCBs deliver dependable performance throughout product life.
FAQ
Q1: What is the difference between flexible PCB and rigid PCB? Flexible PCBs use polyimide film substrate instead of rigid FR4 fiberglass, allowing them to bend and flex. They're thinner, lighter, and conform to 3D spaces. Rigid PCBs offer lower cost and easier component assembly but cannot bend without breaking.
Q2: How many times can a flexible PCB bend? Flex life depends on design parameters including bend radius, copper thickness, and construction type. Static-flex designs bend once during assembly. Dynamic-flex applications with proper design achieve hundreds of thousands to millions of flex cycles.
Q3: What materials are used in flexible PCB construction? Primary substrate is polyimide film (Kapton, UPILEX) for its thermal stability and flexibility. Copper foil provides conductivity. Acrylic or epoxy adhesive bonds layers. Coverlay film protects completed circuits. Stiffeners use polyimide or FR4 for rigid areas.
Q4: Can flexible PCBs handle high temperatures? Yes, polyimide substrates operate continuously from -200°C to +300°C. This makes flexible PCBs suitable for automotive under-hood applications, aerospace systems, and industrial equipment where temperatures exceed rigid PCB capabilities.
Q5: What are typical applications for flexible PCB? Common applications include mobile device displays and cameras, wearable electronics, medical devices and implants, automotive sensors and displays, aerospace avionics, and consumer electronics. Any application requiring movement, 3D packaging, or weight reduction benefits from flexible PCBs.
