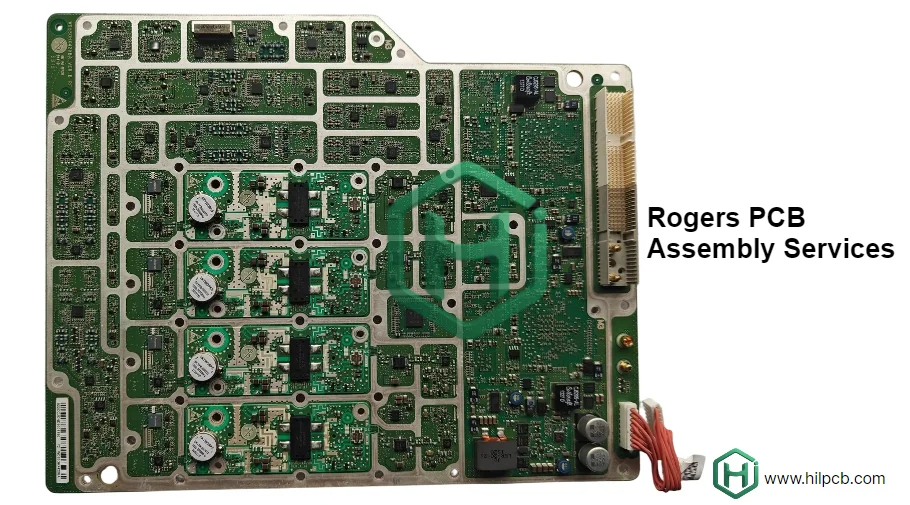

Rogers PCB Assembly Services for RF and Microwave Designs

HILPCB Factory is a professional PCB manufacturing and assembly factory providing high-reliability solutions for Rogers-based high-frequency and RF circuit boards. We combine advanced PCB manufacturing processes, precise SMT assembly, and rigorous RF testing to deliver end-to-end solutions for 5G, radar, aerospace, and satellite communication systems.

By offering integrated fabrication and assembly under one roof, HILPCB ensures superior impedance control, stable signal transmission, and reduced production lead time. Whether for prototypes or mass production, we help customers transform high-frequency designs into finished, production-ready electronic assemblies with guaranteed performance and reliability.

Get Assembly Services Quote

Why Rogers PCB Assembly Demands Specialized Expertise

Assembling on Rogers laminates is more complex than standard FR4 PCB production due to their unique chemical and mechanical behavior.

Low surface energy of PTFE resists solder wetting, requiring tailored fluxes and pastes.
Thermal expansion in the Z-axis can cause delamination if reflow profiles are not optimized.
Moisture control is critical: all substrates undergo pre-bake conditioning to prevent vapor-induced defects.
Precise temperature management avoids over-curing dielectric layers or deforming ceramic-filled materials.

These differences demand advanced assembly process control, specialized reflow profiles, and precision handling throughout the entire Rogers PCB assembly workflow.

Advanced RF Assembly Techniques for Rogers PCBs

At HILPCB Factory, high-frequency PCB assembly follows a carefully engineered process combining SMT precision, controlled reflow profiles, and RF integrity validation to maintain consistent electrical performance across GHz ranges.

1. Surface Preparation and Material Handling

Rogers materials like RO4003C, RO4350B, and RT/duroid 5880 are cleaned and plasma-treated to improve solder wetting. All panels are baked and stored below 40% relative humidity to eliminate moisture absorption, ensuring stable performance through multiple reflow cycles.

2. Precision SMT Assembly and Component Placement

Automated Pick-and-Place: ±25 μm accuracy guarantees stable positioning of RF chips, couplers, and MMICs.
Fine-Pitch Control: Custom stencils ensure consistent solder paste release on low-energy PTFE surfaces.
Reflow Profiling: Multi-zone nitrogen ovens limit peak temperatures below 245°C, maintaining dielectric and metallization integrity.

This precision enables stable impedance and phase behavior across microwave frequencies.

3. Hybrid Technology Integration

Complex modules often combine SMT, through-hole, and chip-and-wire bonding. We use selective soldering and reflow isolation techniques to prevent heat distortion in sensitive layers. Hybrid structures can include metal-core PCB sections for power stages and rigid-flex PCB interconnects for miniaturized RF modules.

4. Controlled Thermal and Mechanical Stress

Temperature cycling and vibration can degrade RF joints. HILPCB optimizes pad geometries and solder alloys for each substrate type, reducing mechanical fatigue and minimizing parasitic inductance. Thermal simulation guides pad design and component spacing for efficient heat dissipation — essential in 5G power amplifiers and radar front-end boards.

5. RF Validation and Calibration

Each assembly undergoes RF-level verification using network analyzers and impedance coupons.

S-Parameter Characterization: Confirms insertion/return loss and phase linearity.
Near-Field Scanning: Detects unintended coupling or EMI issues.
Time-Domain Reflectometry (TDR): Validates trace impedance consistency within ±5%.

These methods ensure that fabricated assemblies perform identically to simulation under real-world conditions.

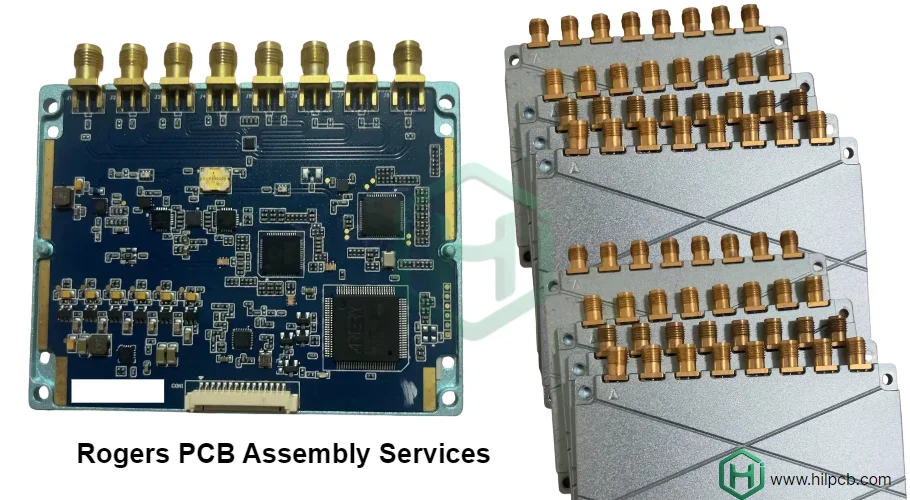

Rogers PCB Assembly Services

Testing, Inspection, and Reliability Control

At HILPCB Factory, Rogers PCB assembly quality is built on a BOM-driven process with full traceability, from component receipt to RF validation.

BOM-Driven Component Sourcing & Traceability

Procurement model: We purchase only to the customer-provided BOM (and AVL/AML where applicable), or assemble with customer-consigned parts. No substitutions are made without written approval (PN, package, tolerance, temp grade, and lifecycle checks).
Incoming control: Lot/date-code capture, certificates of conformance, packaging integrity checks; counterfeit-avoidance via authorized channels; moisture sensitivity (MSL) labeling review.
MSD/ESD handling: Storage and floor-life control per JEDEC MSL guidelines; pre-bake where required; ESD-safe work areas per IEC standards.
Full traceability: Board serials link to PCB lot, reflow profile ID, paste lot, and per-line component lots to support FA/RCCA.

For turnkey jobs, this sits within our end-to-end flow; for consigned builds, we verify incoming quantities, packaging, and shelf life before release to production. See turnkey assembly or small batch assembly.

Multi-Stage Inspection

3D SPI: Solder paste height/volume control before placement.
AOI: Post-placement/post-reflow checks for polarity, coplanarity, bridges, and tombstoning.
X-ray inspection: Voids and wetting under BGAs/QFNs/RF shields and thermal pads.
Microscopy on RF areas: Visual confirmation of keep-out apertures and critical RF features.

Electrical, Functional & RF Testing

ICT / Flying-probe: Continuity, isolation, power rails, and selected analog checks (ideal for proto and pilot runs).
FCT (customer spec): Programmed tests for gain, noise figure, LO leakage, spur masks, etc.
RF validation: VNA-based S-parameters (insertion/return loss, phase), TDR coupons (±5% impedance), and optional near-field scans for coupling/EMI.

Environmental & Mechanical Reliability (as required)

Thermal cycling & shock: Solder-joint/stack-up integrity across −55 °C to +125 °C profiles.
Humidity/bias & salt mist: For outdoor/telecom or marine environments.
Vibration profiles: Automotive/aerospace duty cycles; fixture design per DUT geometry.
Burn-in/power cycling: Early-life failure screening for PA/linear RF stages.

Statistical Process Control (SPC) & Documentation

SPC & capability (Cp/Cpk): Reflow peak/ΔT, placement offset, void ratios—trend analysis with alarm limits.
RCCA: Any escape triggers lot quarantine, 8D, and preventive actions.
Build pack: Reflow profiles, inspection records, test reports, material lots, and deviation approvals delivered with shipment.

All assemblies are built to IPC-A-610 Class 3 with ISO 9001/IATF 16949 quality management. This ensures that whether parts are customer-consigned or purchased strictly per your BOM, the finished Rogers PCB assemblies meet the reliability and RF performance required for 5G, radar, aerospace, and satellite systems.

End-to-End Manufacturing and Assembly Capabilities

As a fully integrated PCB manufacturer and assembler, HILPCB offers complete vertical control — from bare board fabrication to final system integration:

Custom Rogers PCB fabrication with ±5% impedance tolerance.
Turnkey assembly including sourcing, placement, and testing.
Hybrid stackups combining Rogers, FR4, or high-Tg materials.
Box-build and module integration for finished RF subsystems.

This unified process ensures design consistency, short lead times, and guaranteed repeatability for large volume assembly production.

Partner with HILPCB Factory for Complete Rogers PCB Manufacturing and Assembly Solutions

Choosing HILPCB Factory means partnering with a full-service PCB manufacturer and assembler experienced in both Rogers PCB fabrication and precision RF assembly. Our in-house manufacturing and assembly teams work collaboratively to deliver boards that meet exact electrical, mechanical, and thermal specifications — from prototype validation through high-volume production.

Why Engineers and OEMs Trust HILPCB

One-stop manufacturing and assembly: Integrated production minimizes lead time and eliminates inter-vendor variation.
DFM and DFA: Engineering teams assist with stackup, impedance, and reflow compatibility during design.
Quick-turn capability: Rogers PCB prototypes fabricated and assembled within 3–5 days.
BOM-driven sourcing and material traceability: Components are procured or verified strictly per customer BOM, ensuring full compliance and authenticity.
Comprehensive testing: Each board undergoes electrical, RF, and reliability validation before shipment.

Our mission goes beyond simply building or assembling Rogers PCBs — we help customers achieve stable, high-frequency performance, repeatable impedance control, and mass-production reliability for 5G modules, radar transceivers, aerospace communication systems, and advanced microwave products.

With HILPCB Factory, you gain a long-term partner that delivers precision manufacturing, efficient assembly, and dependable technical support — all under one roof.
