Choosing the substrate early is the fastest way to hit thermal, optical, and cost targets in real builds. Align the material with your power density and production route, then lock stackup and interfaces. For a step-by-step view of how designs move from files to hardware, see led-pcb-manufacturing here: led-pcb-manufacturing. This guide maps where each material wins, how to specify thermal paths, and what to document so prototypes ramp to volume without surprises.

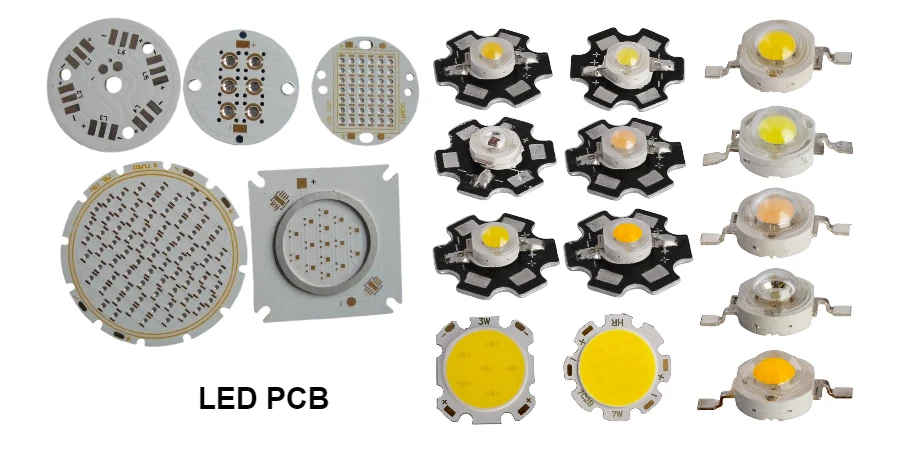

Aluminum MCPCB for LED Lighting: The Cost-Performance Leader
Aluminum metal core PCBs dominate LED applications due to excellent cost-performance balance. The aluminum base provides integrated heat spreading while remaining lightweight and economical.
Standard Aluminum Alloys: We stock 5052 and 6061 aluminum alloys in thicknesses from 0.5mm to 3.0mm. The 5052 alloy offers better formability for applications requiring bending or shaping. The 6061 alloy provides superior strength and thermal conductivity for high-power applications. Surface treatments including anodizing and chromate conversion enhance corrosion resistance and thermal radiation.
Dielectric Layer Options: The thermally conductive dielectric layer bonds the circuit layer to aluminum substrate while providing electrical isolation. Standard dielectrics offer 1.0-2.0 W/m·K thermal conductivity at economical prices. Enhanced materials reach 3.0-5.0 W/m·K for improved thermal performance. Premium ceramic-filled dielectrics achieve up to 8.0 W/m·K for extreme applications.
Manufacturing Advantages: Aluminum PCBs process using standard equipment with minor modifications. V-scoring and routing create clean edges without delamination. The metal substrate provides mechanical rigidity, eliminating the need for additional stiffeners. Direct mounting to heat sinks simplifies thermal management system design.
Ceramic LED PCBs (Al₂O₃ vs AlN): When to Choose Ceramic
When aluminum PCB thermal performance proves insufficient, ceramic substrates deliver exceptional heat dissipation for high-power LED applications.
Aluminum Oxide (Al₂O₃): Alumina ceramics provide 24-30 W/m·K thermal conductivity at moderate cost. The material's high dielectric strength enables thin substrates for improved thermal performance. Excellent dimensional stability maintains consistent performance across temperature extremes. Direct bond copper (DBC) technology creates robust circuit attachments.
Aluminum Nitride (AlN): With thermal conductivity reaching 170 W/m·K, AlN enables extreme power density LED designs. The material's coefficient of thermal expansion closely matches silicon, reducing stress on LED chips. High thermal conductivity eliminates hot spots in densely packed LED arrays. While more expensive than alumina, AlN proves cost-effective for high-value applications.
Silicon Nitride (Si₃N₄): Combining high strength with good thermal conductivity (60-90 W/m·K), silicon nitride excels in mechanically demanding applications. Superior fracture toughness compared to other ceramics improves handling durability. The material maintains properties at elevated temperatures, supporting high-power operation.
Copper Core PCBs for Maximum Heat Dissipation
Copper substrates provide ultimate thermal performance when heat dissipation requirements exceed ceramic capabilities.
Heavy Copper Technology
Copper's 400 W/m·K thermal conductivity enables extreme power density LED designs. Our copper core PCBs utilize:
- Substrate Thickness: 1.0mm to 5.0mm copper plates for massive heat capacity
- Dielectric Systems: Specialized high-temperature adhesives withstand copper's thermal expansion
- Circuit Layers: 2oz to 10oz copper for high current handling
- Surface Finishes: Nickel plating prevents oxidation while maintaining solderability
Manufacturing challenges include controlling copper's high thermal expansion coefficient. Specialized lamination processes prevent delamination during thermal cycling. The increased weight requires consideration in portable applications. Despite higher costs, copper PCBs prove economical for ultra-high-power LED systems.
Embedded Copper Technology
Selective copper embedding combines high thermal performance with design flexibility:
- Copper coins beneath high-power LEDs create localized heat sinking
- Thermal vias filled with copper enhance vertical heat transfer
- Copper inlays in FR-4 boards provide cost-effective thermal management
- Hybrid constructions balance performance with manufacturing complexity
Flexible and Rigid-Flex LED PCB Materials
LED strip lights and conformal lighting applications require flexible substrates maintaining thermal performance.
Polyimide Flex Circuits: Standard polyimide provides adequate performance for low-power LED strips. Enhanced thermally conductive polyimide materials improve heat dissipation. Adhesiveless constructions minimize thermal resistance between layers. Dynamic flex applications require specialized materials preventing conductor fatigue.
Thermally Enhanced Flex: Aluminum-polyimide laminates combine flexibility with heat spreading. Graphite-filled polyimide achieves in-plane thermal conductivity exceeding metals. Phase change materials integrated into flex layers provide thermal buffering. These advanced materials enable flexible LED displays and wearable lighting.
Rigid-Flex Combinations: Rigid sections utilize aluminum or FR-4 for component mounting and thermal management. Flexible interconnects eliminate connectors while maintaining reliability. Controlled impedance flex layers support high-speed LED driver signals. This technology enables three-dimensional LED arrays and conformal lighting systems.
Material Selection Criteria
Choosing optimal LED PCB materials requires balancing multiple factors:
Thermal Requirements:
- LED power density and total heat generation
- Maximum junction temperature specifications
- Ambient temperature and cooling availability
- Thermal cycling requirements
Electrical Considerations:
- Dielectric strength for isolation requirements
- Dielectric constant for high-frequency LED drivers
- Surface resistance for high-voltage applications
- EMI shielding requirements
Mechanical Properties:
- Substrate thickness and rigidity needs
- Vibration and shock resistance
- Dimensional stability requirements
- Assembly process compatibility
Cost Optimization:
- Material costs versus performance gains
- Manufacturing complexity and yield impacts
- Volume pricing and availability
- Total system cost including thermal management
Advanced Material Technologies
Emerging materials push LED PCB performance boundaries:
Graphene-Enhanced Substrates: Graphene additives dramatically improve thermal conductivity while maintaining electrical isolation. In-plane thermal conductivity exceeds 1000 W/m·K for superior heat spreading. These materials enable next-generation high-power LED designs.
Metal Matrix Composites: Aluminum-silicon carbide composites balance thermal performance with controlled expansion. Copper-tungsten materials provide extreme thermal performance with dimensional stability. These advanced materials support cutting-edge LED applications.
Nano-Enhanced Dielectrics: Nanoparticle-filled polymers achieve breakthrough thermal conductivity. Boron nitride nanosheets provide exceptional thermal performance. Carbon nanotube composites enable programmable thermal properties.
Manufacturing Excellence with LED PCB Materials
Our materials expertise ensures optimal LED PCB performance:
- Inventory Management: Stock of common materials enables 24-hour quick-turn prototypes
- Material Certification: All substrates include thermal conductivity and dielectric strength documentation
- Process Optimization: Manufacturing parameters optimized for each material type
- Quality Validation: Incoming inspection verifies material properties meet specifications
- Technical Support: Engineering guidance for material selection and design optimization
LED PCB Materials: Frequently Asked Questions
Q1: Which material offers the best cost-performance ratio?
A: Aluminum PCBs with 2.0 W/m·K dielectric provide optimal balance for most LED applications, offering good thermal performance at economical prices.
Q2: When should I choose ceramic over aluminum substrates?
A: Ceramic substrates become necessary when power density exceeds 5W/cm² or when direct chip attachment is required for COB applications.
Q3: Can you combine different materials in one PCB?
A: Yes, hybrid constructions like embedded copper coins in aluminum PCBs provide localized high-performance thermal management.
Q4: How do materials affect LED color consistency?
A: White solder mask reflectivity and substrate thermal properties impact LED junction temperature, affecting color temperature stability.
Q5: What materials suit outdoor LED applications?
A: Anodized aluminum PCBs with conformal coating provide excellent weather resistance for outdoor lighting applications.
