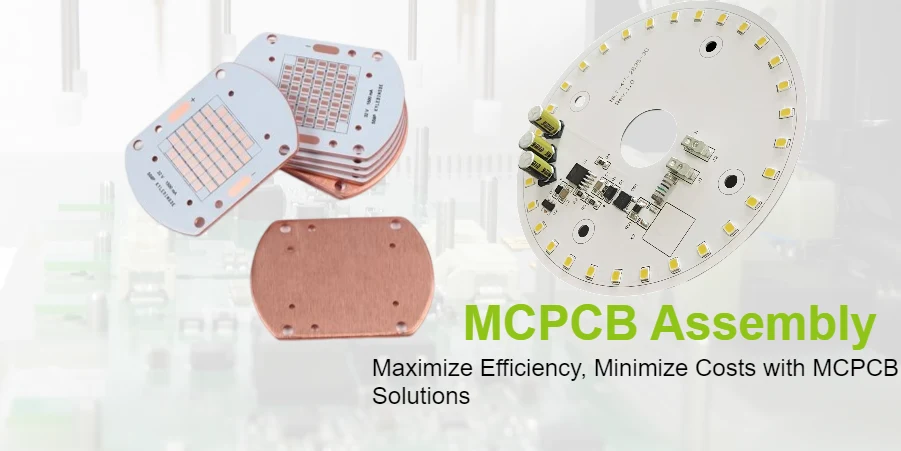

Understanding Metal Core PCB cost structures enables informed procurement decisions and optimal thermal management within budget constraints. At Highleap PCB Factory, we provide transparent pricing models helping engineers and procurement teams evaluate MCPCB investments against performance requirements. This comprehensive cost analysis guide breaks down every pricing component, from material selection through volume manufacturing, ensuring accurate budget planning for thermal PCB projects.

Get Instant MCPCB Quote

Material Cost Breakdown: Foundation of MCPCB Pricing

Material selection represents 40-60% of total MCPCB cost, with substrate choice dramatically impacting both price and performance. Understanding material cost dynamics enables optimal specification balancing thermal requirements against budget constraints.

Aluminum Substrate Economics: Standard aluminum PCB substrates using 5052 alloy cost $8-15 per square foot in production volumes. Premium 6061 alloy adds 20-30% cost while improving thermal spreading. Substrate thickness directly impacts pricing—1.0mm aluminum costs baseline, 1.6mm adds 25%, while 3.0mm heavy plates double material costs. Surface treatments including anodizing or chemical conversion coating add $0.50-2.00 per square foot depending on specification requirements.

Copper Core Premium Analysis: Copper core PCB substrates command 3-4x aluminum pricing, typically $35-50 per square foot for standard thicknesses. The 385 W/m·K thermal conductivity justifies premium pricing for high-power density applications. Copper weight significantly impacts cost—20μm copper adds baseline cost, 70μm doubles circuit layer expense, while extreme 420μm (12oz) copper quadruples circuit material costs.

Dielectric Layer Investment: Thermally conductive dielectric materials range from $5-30 per square foot depending on thermal performance. Standard 1.0 W/m·K materials provide cost-effective solutions, 3.0 W/m·K formulations add 50% premium, while premium 8.0 W/m·K materials triple dielectric costs. Thickness optimization balances cost against electrical isolation—thinner layers reduce material cost but require tighter process control.

Manufacturing Process Cost Drivers

Process complexity significantly impacts MCPCB pricing beyond raw materials. Understanding manufacturing cost drivers enables design optimization reducing production expenses without compromising performance.

Layer Count Impact: Single-sided MCPCBs represent baseline pricing, double-sided designs add 60-80% cost due to complex via drilling and plating requirements. Multi-layer MCPCBs, while technically feasible, multiply costs 3-5x making them economically challenging except for specialized applications. Unlike standard MCPCB vs FR-4 comparisons, metal core constraints limit practical layer counts affecting design flexibility versus cost.

Precision Requirements: Tighter tolerances exponentially increase manufacturing costs. Standard ±10% thickness tolerance maintains baseline pricing, ±5% adds 20% cost, while ±2% precision doubles manufacturing expense. Minimum trace width impacts yield—200μm traces ensure high yield, 150μm reduces yield 15%, while 100μm ultra-fine features decrease yield 40% dramatically increasing per-unit costs.

Surface Finish Selection: HASL provides cost-effective finishing for general applications. ENIG adds $0.30-0.50 per square foot improving solderability and shelf life. OSP offers economical alternative for short-term storage. Immersion silver balances cost and performance for LED applications requiring high reflectivity.

Design Optimization for Cost Reduction

Strategic design decisions significantly impact MCPCB manufacturing costs without compromising thermal performance. Our engineering team provides optimization guidance reducing expenses 20-40% through intelligent design choices. Following proven MCPCB design rules ensures cost-effective manufacturing.

Panel Utilization Strategy: Optimizing board dimensions for standard panel sizes (18"×24" or 20"×24") maximizes material utilization. Rectangular designs outperform irregular shapes reducing waste 30-50%. Multiple designs per panel amortize setup costs across variants. Array configurations for small boards improve handling efficiency reducing labor costs.

Feature Standardization: Using standard drill sizes (0.3mm, 0.5mm, 0.8mm) eliminates tool changes reducing processing time. Maintaining 0.2mm minimum trace/space relaxes registration requirements. Avoiding blind/buried vias simplifies processing saving 40% versus complex via structures. Standardizing copper weights across layers reduces lamination complexity.

Thermal Via Optimization: Strategic via placement maintains thermal performance while reducing drill count. Larger via diameters (0.5mm vs 0.3mm) reduce drilling time 30%. Via-in-pad designs, while thermally superior, add 25% cost due to filling requirements. Thermal pad arrays balance performance against manufacturing complexity.

ROI Calculation Framework

Evaluating MCPCB investment requires comprehensive ROI analysis considering total system costs beyond PCB pricing. Our cost modeling tools quantify economic benefits justifying premium thermal substrate investments.

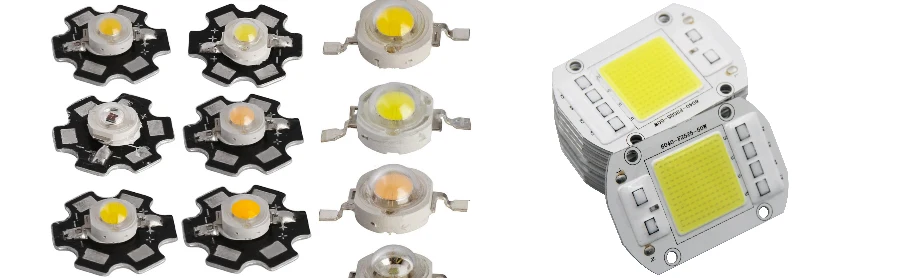

Thermal Performance Value: MCPCBs enabling 20°C junction temperature reduction extend LED lifetime 2x, reducing replacement costs 50% over product lifecycle. Improved thermal management allows 30% power density increase, reducing system size and enclosure costs. Enhanced reliability decreases warranty claims 60-80% for high-power applications. Energy efficiency improvements from cooler operation save 5-10% operational costs.

System Cost Reduction: Eliminating external heatsinks saves $5-20 per unit in materials and assembly. Simplified thermal design reduces engineering time 30-40 hours typical project. Smaller product footprints decrease shipping costs 20-30%. Integrated thermal management eliminates thermal interface materials saving $0.50-2.00 per unit.

Time-to-Market Advantages: Pre-validated thermal solutions reduce development cycles 2-3 months. Fewer thermal iterations save $10,000-50,000 in prototype costs. Accelerated certification testing due to robust thermal design saves 4-6 weeks. First-mover advantages in LED and power markets provide premium pricing opportunities.

Procurement Strategy Guidelines

Strategic procurement approaches optimize MCPCB costs while ensuring quality and delivery reliability. Our supply chain expertise helps establish cost-effective sourcing strategies.

Volume Commitment Benefits: Annual blanket orders reduce unit costs 15-25% versus spot purchases. Scheduled releases optimize inventory carrying costs. Buffer stock agreements ensure supply continuity. Volume pricing tiers provide predictable cost structures. Long-term partnerships enable collaborative cost reduction initiatives.

Design Standardization Impact: Common substrate specifications across products reduce material costs 10-15%. Standardized panel sizes improve manufacturing efficiency. Qualified material lists simplify procurement. Design reuse amortizes NRE across multiple products. Platform approaches reduce variant complexity.

Total Cost Considerations: Evaluate logistics costs including duties and freight. Consider quality costs including inspection and rework. Factor inventory carrying costs for various order quantities. Include engineering support value in supplier selection. Assess supply chain risk mitigation benefits.

Advanced Manufacturing Cost Models

Understanding advanced manufacturing economics enables informed decisions for complex MCPCB requirements. MCPCB assembly integration and specialized processes impact total solution costs.

Assembly Integration Economics: Combined PCB and assembly services reduce handling costs 10-15%. Single-source responsibility simplifies quality management. Integrated DFM/DFA optimization reduces total costs 20-30%. Turnkey solutions eliminate component procurement overhead. Consolidated shipping reduces logistics expenses.

Specialized Process Premiums: Heavy copper circuits (>4oz) add 50-100% to circuit costs. Cavity designs for component embedding double manufacturing complexity. Selective plating for enhanced thermal vias adds 30% process cost. Special surface treatments for harsh environments increase finishing costs 40-60%.

Supplier Selection Criteria

Choosing the right MCPCB manufacturer balances cost against capabilities, quality, and service. Our comprehensive manufacturing capabilities deliver optimal value across all selection criteria.

Technical Capability Assessment: Verify thermal conductivity measurement capabilities. Confirm dielectric breakdown voltage testing. Evaluate thickness tolerance control systems. Review thermal cycling test capabilities. Assess engineering support depth for thermal management PCB optimization.

Quality System Validation: ISO 9001:2015 ensures consistent process control. IATF 16949 certification validates automotive capabilities. UL recognition confirms safety compliance. IPC-A-600 class compliance demonstrates quality standards. Statistical process control data validates consistency.

Service Level Evaluation: Engineering support reduces development costs. Rapid prototyping accelerates time-to-market. Flexible delivery options accommodate demand variation. Technical documentation completeness simplifies qualification. Responsive communication ensures project success.

Get Instant MCPCB Quote

Maximizing MCPCB Investment Value

Strategic MCPCB procurement balances thermal performance requirements against total system costs. While metal core substrates command premium pricing versus standard FR-4, the thermal management benefits often justify investments through reduced cooling costs, improved reliability, and enhanced product performance. Our engineering team helps optimize designs minimizing costs while achieving thermal objectives.

Partner with Highleap PCB Factory for transparent MCPCB pricing and cost optimization expertise. From prototype evaluation through volume production, we provide comprehensive cost analysis ensuring maximum value from thermal PCB investments. Our thermal simulation services help validate designs before committing to production. Upload your design today for detailed cost analysis and optimization recommendations tailored to your specific requirements.
