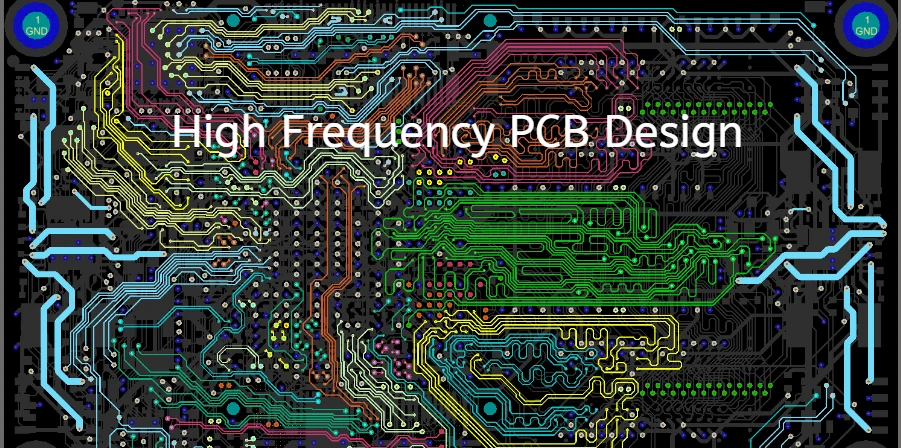

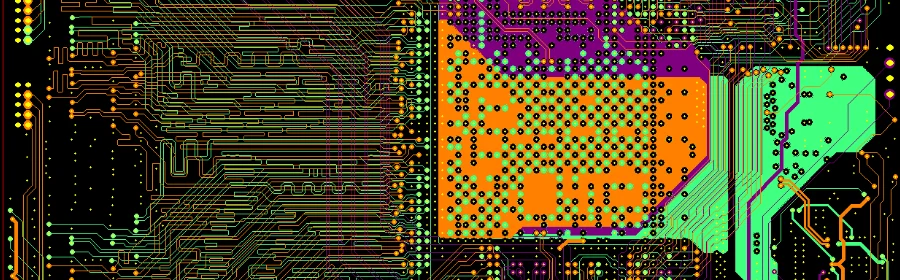

High-Frequency PCB Design and Fabrication for High Frequency Circuits: RF Principles & Layout

Successful PCB designing and fabrication for high frequency circuits requires matching electromagnetic transmission line geometry to tight manufacturing tolerances. At frequencies from 1 GHz to over 77 GHz, signal degradation is dominated by conductor skin effect, dielectric absorption, and impedance discontinuities at layer transitions. Implementing disciplined RF frequency design techniques (grounded coplanar waveguide routing, precise trace etch compensation, controlled-roughness copper foils, and solder mask pull-backs) ensures that fabricated RF boards deliver predictable insertion loss (S21) and return loss (S11 < -15 dB) from prototype through volume production.

Modern systems such as 5G networks at 28 GHz, automotive radar at 77 GHz, and satellite communications beyond 100 GHz push the limits of HF PCB technology. These designs must account for skin effect, dielectric losses, surface roughness, and electromagnetic coupling: phenomena that are negligible at low frequencies but critical at microwave and millimeter-wave ranges. Practical RF engineering requires integrating layout geometry with PCB shop-floor fabrication constraints.

Fundamental Concepts in High-frequency PCB Design

When Does a Trace Become a Transmission Line?

The transition from lumped element to distributed behavior occurs when electrical length exceeds λ/10 of the signal wavelength. This critical threshold determines when transmission line design becomes mandatory.

Wavelength Calculation in PCB Substrates:

λ = c / (f × √εr)

Where:

• c = speed of light (3×10⁸ m/s)
• f = frequency (Hz)
• εr = relative dielectric constant

For a 5 GHz signal in FR4 (εr = 4.4): λ = 3×10⁸ / (5×10⁹ × √4.4) = 28.6mm

Critical length = λ/10 = 2.86mm

Any trace longer than 2.86mm requires transmission line design at 5 GHz.

Understanding Propagation Delay and Signal Integrity

Signal propagation velocity directly impacts timing, phase relationships, and signal integrity in high-frequency circuits:

Propagation Delay Calculation:

tpd = 85 × √εr ps/inch

For Rogers RO4003C (εr = 3.38): tpd = 85 × √3.38 = 156 ps/inch

This propagation delay affects:

• Clock distribution in high-speed digital systems
• Phase matching in differential pairs
• Time delay in filter networks
• Antenna array beam steering

Rise Time and Bandwidth Relationships:

The relationship between rise time and bandwidth determines frequency content:

BW = 0.35 / tr

A 35ps rise time signal contains frequency components up to 10 GHz, requiring careful attention to transmission line effects even in "digital" designs.

RF Frequency Design Techniques

Transitioning an RF schematic into physical hardware requires techniques that prevent parasitic reactance, boundary reflection, and dielectric dissipation from corrupting signal integrity. In microwave and millimeter-wave printed circuits, layout geometry directly dictates transmission line performance. The following design techniques bridge layout practices with physical board fabrication:

Reference Plane Continuity and Ground Stitching

High-frequency signals return through the path of least inductance, flowing directly beneath the signal conductor on the adjacent reference plane. Any interruption in this return path, such as slots, thermal reliefs, or split planes, forces the return current to divert around the discontinuity, creating a loop inductance that radiates EMI and induces severe insertion loss spikes.

• Via Fencing: For Grounded Coplanar Waveguide (GCPW) and isolated RF lines, place ground stitching vias along both sides of the trace. Maintain a via-to-via pitch of ≤ λ/10 (ideally λ/20 at the highest operating harmonic) and keep the distance from the trace edge to the via barrel at approximately 1.5× to 2× trace width to suppress parallel-plate substrate resonance.
• Dedicated RF Ground Planes: Assign Layer 2 as an unbroken solid ground plane directly below top-layer RF conductors. Never route low-frequency control lines or power rails on reference planes beneath RF paths.

Etch Factor and CAM Line Width Compensation

Chemical etching in PCB manufacturing undercuts the copper trace, transforming rectangular conductor cross-sections into trapezoidal profiles. Because trace width at the top (W_top) is narrower than at the base (W_base), the effective characteristic impedance (Z₀) increases by 1.5 to 3.5 Ω compared to idealized CAD models if uncorrected.

• Etch Factor Ratios: Standard 1 oz (35 μm) copper yields an etch factor of approximately 2:1 to 3:1 depending on chemical etchant chemistry.
• Fabrication Compensation: PCB CAM engineers apply trace width compensation (typically adding +0.5 to +1.0 mil / 13 to 25 μm to gerber trace widths) prior to photolithography to achieve the specified nominal impedance within ± 5% tolerance after final etching.

Copper Surface Roughness and Skin Effect Mitigation

At frequencies above 5 GHz, current flow concentrates within a shallow skin depth near the conductor surface (δ ≈ 0.66 μm at 10 GHz for copper). If the root-mean-square surface roughness (R_z or R_q) of the treated copper foil exceeds the skin depth, current must follow the contours of the copper tooth profile, substantially increasing resistive loss and phase delay.

Copper Foil Type	Typical Roughness (Rz)	High-Frequency Suitability	Attenuation Impact at 20 GHz
Standard Electrodeposited (ED)	> 5.0 μm	Low (unsuitable for > 5 GHz)	Up to 50% additional conductor loss
Reverse Treated Foil (RTF)	2.5 - 3.5 μm	Moderate (5 - 15 GHz)	15–25% loss increase
Very Low Profile (VLP)	1.2 - 2.0 μm	High (15 - 40 GHz)	5–10% loss increase
Rolled Annealed (RA) / HVLP	< 1.0 μm	Critical (> 40 GHz, mmWave)	Baseline reference loss

For high-frequency fabrication, specify VLP or HVLP copper foils on low-loss substrates such as Rogers RO4350B, RO4003C, or Panasonic Megtron 6.

Solder Mask Removal over RF Conductor Paths

Liquid Photoimageable (LPI) solder mask is formulated for environmental protection and solder bridging prevention, not microwave dielectric performance. Standard solder mask exhibits a high loss tangent (\tanδ ≈ 0.02 to 0.03) and an unstable dielectric constant (ε_r ≈ 3.8 to 4.2).

When solder mask covers high-frequency microstrip traces, it adds dielectric dissipation and lowers characteristic impedance by 2 to 4 Ω. For RF traces operating above 6 GHz, designers must specify solder mask openings (mask pull-back) with a clearance of at least 3 to 5 mils (75 to 125 μm) from the trace edge. The exposed copper must then receive an immersion silver (IAg) or ENIG/ENEPIG surface finish to preserve conductor conductivity without dielectric loading.

Discontinuity Tuning at Component Landing Pads

Component landing pads (such as 0402/0201 passives, QFN packages, and SMA connector launch pins) have wider dimensions than 50 Ω microstrip lines, creating localized excess capacitance (C_pad). This capacitive discontinuity causes reflection notches in the S₁₁ return loss curve.

• Ground Relief (Cutout): Remove copper directly beneath the landing pad on the immediate reference plane (Layer 2) and reference the pad to Layer 3 instead. This increases effective dielectric spacing (h) under the pad, restoring local characteristic impedance to 50 Ω.
• Tapered Transitions: Use 45° or mitered trace tapers when necking down from connector pins or wide IC pads to narrow RF transmission lines to avoid abrupt step-impedance reflections.

Transmission Line Design and Implementation

Microstrip Design Optimization

Microstrip represents the most common transmission line structure for RF PCBs, offering ease of component mounting and testing. However, achieving optimal performance requires careful consideration of multiple parameters.

Characteristic Impedance Precision:

The accurate calculation of microstrip impedance must account for:

• Effective dielectric constant including air interface
• Conductor thickness effects on current distribution
• Frequency-dependent dielectric properties
• Manufacturing tolerance stackup

For a 50Ω microstrip on RO4350B (h=0.508mm, εr=3.48):

Using the refined Wheeler equation: Z₀ = (87/√(εr+1.41)) × ln(5.98h/(0.8w+t))

Calculated width: w = 1.11mm Manufacturing tolerance: ±0.025mm Resulting impedance range: 49.2Ω to 50.8Ω

Dispersion and Frequency Effects:

Microstrip exhibits frequency-dependent behavior due to the inhomogeneous dielectric (substrate below, air above):

At 1 GHz: εeff = 2.65 At 10 GHz: εeff = 2.71 At 30 GHz: εeff = 2.78

This dispersion causes:

• Frequency-dependent impedance variation
• Phase velocity changes with frequency
• Pulse distortion in wideband applications

Design mitigation strategies include using thin substrates (h < λ/20) to minimize dispersion, selecting low-Dk materials to reduce the substrate-air dielectric contrast, and implementing covered microstrip with thin overlays for controlled environment.

Stripline Implementation for Superior Isolation

Stripline configuration embeds the signal conductor between two ground planes, providing superior isolation and consistent impedance.

Advantages in High-frequency Design:

• Complete electromagnetic shielding
• No radiation loss
• Frequency-independent propagation
• Excellent isolation between circuits

Design Equations for Centered Stripline:

Z₀ = (60/√εr) × ln(4b/πw)

Where:

• b = ground plane spacing
• w = trace width
• εr = dielectric constant

Asymmetric Stripline Considerations:

When the trace is offset from center:

Z₀ = Z₀(centered) × [1 - (2h₁-b)²/b²]

This offset causes:

• Impedance reduction up to 15%
• Mode conversion at discontinuities
• Increased coupling to adjacent traces

Coplanar Waveguide for mmWave Applications

Coplanar waveguide (CPW) excels at frequencies above 20 GHz, offering unique advantages for millimeter-wave circuits.

CPW Design Parameters:

Characteristic impedance depends on:

• Center conductor width (w)
• Gap to ground (g)
• Substrate thickness (h)
• Substrate dielectric constant (εr)

For 50Ω CPW on 0.254mm RO3003 (εr=3.0):

• w = 0.5mm
• g = 0.3mm
• Effective εr = 2.1 (significant air contribution)

Benefits for High-frequency Design:

• Easy shunt component mounting
• No via inductance for ground connections
• Lower dispersion than microstrip
• Compatible with flip-chip mounting

Layer Stack-up Architecture for RF Performance

Optimizing Stack-ups for Mixed-Signal RF Systems

Modern RF systems combine high-frequency analog, high-speed digital, and power circuits, requiring careful stack-up planning:

6-Layer Universal RF Stack-up:

Layer	Function	Material	Thickness
1	RF/Components	Copper	0.5 oz
1-2	Dielectric	RO4350B	0.254mm
2	Ground	Copper	1 oz
2-3	Dielectric	FR4	0.360mm
3	Power/Signal	Copper	0.5 oz
3-4	Dielectric	FR4 Core	0.710mm
4	Signal	Copper	0.5 oz
4-5	Dielectric	FR4	0.360mm
5	Ground	Copper	1 oz
5-6	Dielectric	RO4350B	0.254mm
6	RF/Digital	Copper	0.5 oz

This configuration provides:

• Controlled impedance RF layers (1,6)
• Continuous ground references
• EMI shielding between RF and digital
• Cost optimization with selective high-performance materials

Ground Plane Management Strategies

Proper ground plane implementation is crucial for RF performance, affecting return paths, isolation, and EMI.

Continuous vs. Segmented Ground Planes:

Continuous Ground Benefits:

• Lowest impedance return path
• Maximum shielding effectiveness
• Predictable impedance control
• Simplified design process

When Segmentation is Required:

• Isolation between RF and digital domains
• Noise-sensitive analog circuits
• Different ground potential requirements

Ground Plane Perforation Effects:

Perforations for thermal vias or weight reduction impact RF performance:

For 20% perforation with 1mm holes on 2mm grid:

• Effective εr increases by 3-5%
• Impedance increases by 2-3%
• Shielding effectiveness reduces by 10-15 dB

Design rule: Keep perforation away from RF traces by >5× trace width.

Signal Integrity Optimization Techniques

Via Design and Optimization for High Frequencies

Vias represent necessary discontinuities in RF circuits, requiring careful design to minimize impact on signal integrity.

Via Impedance Modeling:

A via can be modeled as a series inductance and shunt capacitance:

L ≈ 0.2h[ln(4h/d) + 1] nH C ≈ 0.0555εrD₁h/(D₂-D₁) pF

Where:

• h = via height (mm)
• d = drill diameter (mm)
• D₁ = pad diameter (mm)
• D₂ = antipad diameter (mm)

Illustrative Via Calculation:

For a 0.2 mm drill and 1.6 mm via length, the inductance approximation above gives about 1.43 nH. For the same drill and a 0.3 mm via length it gives about 0.17 nH. These are lumped estimates, not a channel qualification. Capacitance depends on the pad, antipad and dielectric geometry; residual-stub resonances also require a distributed via/return-path model. Do not infer a 20 GHz operating limit from via length alone.

Controlling Electromagnetic Coupling

Unwanted coupling between circuits limits system performance, requiring systematic approaches to achieve adequate isolation.

Crosstalk Mechanisms and Mitigation:

Coupling occurs through multiple mechanisms:

1. Capacitive Coupling (Electric Field):

   • Proportional to dV/dt
   • Dominant at high impedance
   • Mitigated by ground shields

2. Inductive Coupling (Magnetic Field):

   • Proportional to dI/dt
   • Dominant at low impedance
   • Mitigated by magnetic shields or orthogonal routing

Isolation Techniques Comparison:

Technique	Isolation Improvement	Frequency Range	Implementation Cost
3W Spacing	10-15 dB	DC-10 GHz	Low
Guard Traces	15-20 dB	DC-20 GHz	Medium
Via Fencing	20-30 dB	DC-40 GHz	Medium
Cavity Shielding	>40 dB	All	High

Differential Signaling in RF Applications

Differential transmission lines offer superior noise immunity and reduced EMI for high-frequency signals.

Design Considerations for Edge-Coupled Differential Pairs:

Target specifications for 100Ω differential impedance:

• Single-ended impedance: 55-60Ω per trace
• Coupling factor: 0.15-0.25 (loose coupling preferred)
• Length matching: <0.1mm for 10 GHz signals
• Spacing variation: <10% along length

Common-Mode Suppression:

Achieving >40 dB common-mode rejection requires:

• Symmetric routing with matched parasitics
• Balanced termination networks
• Common-mode chokes where needed
• Ground plane continuity under pairs

Power Distribution Network Design for RF Systems

Decoupling Strategy Implementation

RF circuits demand exceptional power supply quality, with noise requirements often <1mV RMS across the operating bandwidth.

Frequency-Dependent Decoupling Network:

A properly designed PDN addresses different frequency ranges with appropriate components:

DC to 1 MHz: Bulk Storage

• Capacitors: 100μF-1000μF electrolytic/tantalum
• Location: Near power entry
• Purpose: Energy reservoir for load transients

1 MHz to 100 MHz: Medium Frequency

• Capacitors: 0.1μF-10μF ceramic
• Location: Distributed across board
• Purpose: Local energy storage

100 MHz to 1 GHz: High Frequency

• Capacitors: 10nF-100nF in 0402/0201
• Location: Within 2mm of IC power pins
• Purpose: High-frequency filtering

Above 1 GHz: Ultra-High Frequency

• Solution: Embedded capacitance or ultra-low ESL
• Implementation: Power/ground plane pairs
• Target impedance: <0.1Ω

Power Plane Resonance Management

Parallel plate resonances in power planes can couple noise across the entire board:

Resonant Frequency Calculation:

fr = (c/2√εr) × √(m²/a² + n²/b²)

For a 100mm × 80mm board with εr=4.4: First resonance (m=1, n=0): fr = 357 MHz

Mitigation Strategies:

1. Embedded Capacitance:

   • Thin dielectric (<0.1mm) between planes
   • Achieves >1000pF/in² capacitance
   • Pushes resonances above operating frequency

2. Lossy Materials:

   • Power plane on lossy substrate
   • Damping factor increases with frequency
   • Reduces Q factor of resonances

3. Segmentation with Stitching:

   • Divide large planes into smaller sections
   • Connect with multiple vias and capacitors
   • Increases lowest resonant frequency

EMI Control and Regulatory Compliance

Edge Radiation Suppression Techniques

PCB edges act as slot antennas, radiating electromagnetic energy that can cause EMI failures.

Quantifying Edge Radiation:

Radiated power from board edge: P = (120π × I² × L²)/λ²

Where:

• I = current in edge (A)
• L = edge length (m)
• λ = wavelength (m)

For 1mA at 1 GHz along a 100mm edge: P = 13.2 μW (-18.8 dBm)

This exceeds FCC Class B limits by 20 dB!

Proven Mitigation Methods:

Via Fencing Implementation:

• Spacing: λ/20 maximum (1.5mm at 10 GHz)
• Connection: All ground layers
• Distance from edge: 1-2mm
• Effectiveness: 20-30 dB reduction

20-H Rule Application:

• Power plane setback: 20× dielectric thickness
• Reduces fringing fields
• Effectiveness: 10-15 dB reduction
• Most effective below 1 GHz

Filtering and Isolation Strategies

Strategic filtering prevents noise propagation between circuit sections:

Pi-Filter Implementation for Power Lines:

Component selection for 100 MHz cutoff:

• Series inductors: 100nH (ferrite bead)
• Shunt capacitors: 100nF || 100pF
• Insertion loss: >40 dB above 200 MHz
• DC resistance: <0.1Ω

Common-Mode Filtering:

For differential signals with common-mode noise:

• Common-mode choke: 90Ω at 100 MHz
• Differential impedance: <1Ω
• Common-mode rejection: >30 dB
• Bandwidth: DC to 2 GHz typical

Advanced Design Techniques for Millimeter-Wave

Managing Discontinuities at mmWave Frequencies

At millimeter-wave frequencies, minor discontinuities cause significant reflections and mode conversion.

Bend Optimization Strategies:

Right-angle bends create capacitive discontinuities. Mitigation options:

1. Chamfered Bend (45° cut):

   • Chamfer dimension: 0.5 × trace width
   • Return loss improvement: 10 dB at 30 GHz
   • Simple implementation

2. Curved Bend:

   • Radius: >3 × trace width
   • Return loss: <-30 dB to 40 GHz
   • Optimal for critical paths

3. Compensated Bend:

   • Add inductive compensation
   • Custom optimization required
   • Best performance possible

T-Junction Compensation:

Uncompensated T-junctions exhibit 2-3 dB excess loss at mmWave frequencies.

Compensation techniques:

• Inset at junction: 0.1-0.15 × trace width
• Reduces parasitic capacitance
• Improves matching by 15-20 dB

Substrate Integrated Waveguide Technology

SIW provides low-loss transmission above 20 GHz using standard PCB processes:

Design Parameters:

For 28 GHz SIW on 0.508mm RO3003:

• Width: 4.2mm (for TE₁₀ mode)
• Via diameter: 0.3mm
• Via pitch: 0.6mm
• Insertion loss: 0.05 dB/cm
• Isolation: >60 dB

Advantages over Microstrip:

• 50% lower loss at 60 GHz
• Superior isolation
• No radiation
• Compatible with standard multilayer PCB processes

Simulation and Verification Best Practices

Electromagnetic Simulation Requirements

Accurate prediction of high-frequency behavior requires 3D electromagnetic simulation with proper model setup.

Mesh Density Guidelines:

Minimum mesh requirements by frequency:

• 1-5 GHz: λ/20 maximum cell size
• 5-20 GHz: λ/30 maximum cell size
• 20-40 GHz: λ/40 maximum cell size

• 40 GHz: Adaptive meshing essential

Port Definition Best Practices:

Proper port setup ensures accurate S-parameter extraction:

• Port size: 5-10× trace width + spacing
• Reference plane: De-embedded to measurement point
• Port impedance: Match measurement system
• Boundary conditions: Absorbing or periodic as appropriate

Measurement Correlation Strategies

Achieving correlation between simulation and measurement requires systematic approach:

Test Structure Design:

Essential test structures for validation:

1. Through lines: Various lengths for loss extraction
2. Open/short standards: Reflection coefficient verification
3. Coupled lines: Crosstalk validation
4. Resonators: Dk/Df extraction
5. Impedance standards: TDR correlation

Correlation Process:

1. Measure board materials for actual Dk/Df
2. Update simulation with measured values
3. Include surface roughness models
4. Account for manufacturing tolerances
5. Validate across frequency range

Typical correlation targets:

• S₁₁ magnitude: ±1 dB
• S₂₁ magnitude: ±0.5 dB
• Phase: ±5°
• Impedance: ±2Ω

Design for Manufacturing and Testing

Manufacturing Constraint Integration

Successful RF PCB design requires understanding and accommodating manufacturing limitations:

Critical Manufacturing Parameters:

Parameter	Standard Capability	High-End Capability	Impact on RF Design
Min Trace Width	0.1mm (4 mil)	0.05mm (2 mil)	Impedance range
Min Via Drill	0.2mm (8 mil)	0.1mm (4 mil)	Via inductance
Registration	±0.075mm	±0.025mm	Layer alignment
Copper Thickness	±10%	±5%	Impedance variation
Etch Tolerance	±0.025mm	±0.013mm	Frequency response

Design for Testability

Incorporating test features during design ensures manufacturability and performance verification:

RF Test Point Implementation:

• Impedance: Match system (typically 50Ω)
• Pad size: Compatible with RF probes
• Ground access: Within 1mm of signal
• Isolation: >40 dB from active circuits

Built-in Test Structures:

• TDR coupons on each layer
• S-parameter test vehicles
• Isolation test structures
• Process monitor circuits

Why Choose HILPCB for High-frequency PCB Design

HILPCB combines deep RF engineering expertise with advanced manufacturing capabilities to deliver superior high-frequency PCB solutions:

Design Excellence:

• Full-wave 3D EM simulation capabilities
• Impedance control to ±3% tolerance
• Stack-up optimization for RF performance
• Signal integrity and power integrity analysis

Manufacturing Precision:

• Specialized processes for PTFE/ceramic materials
• Controlled impedance with 100% testing
• Advanced via technologies including backdrilling
• IPC Class 3 quality standards

Comprehensive Support:

• Design review and DFM optimization
• Material selection guidance
• Prototype to production scaling
• Complete electrical testing and validation

High-Frequency PCB Design FAQ

What is high frequency PCB design?

High frequency PCB design is the discipline of laying out printed circuit boards for signals fast enough that traces behave as transmission lines rather than ideal wires, typically above 500 MHz-1 GHz or wherever the critical trace length exceeds λ/10. Whether teams call it high frequency design, RF high frequency PCB layout, or high-frequency RF PCB work, the job is the same: control impedance, return paths, loss, and discontinuities. For a high frequency PCB for RF circuit use, that means GCPW or microstrip routing with uninterrupted reference planes, stitching vias at ≤λ/10 pitch, and laminate selected by Dk/Df at the operating band.

What are the core PCB design rules for high frequency work?

The practical pcb design rules for high frequency layouts, and the basis of most high frequency PCB design guidelines, are: keep a solid ground plane directly under RF traces; place stitching vias along RF microwave high-frequency pcb coplanar structures at λ/10 to λ/20 pitch; pull solder mask back 3-5 mil from traces above 6 GHz; specify VLP or HVLP copper when skin depth approaches foil roughness; compensate trace width for etch undercut; and tune pad discontinuities with ground relief on the layer beneath.

What is the "via inductance" formula with 5.08 and ln(4h/d)?

The empirical estimate is L ≈ 5.08 × h × [ln(4h/d) + 1] nH when h and d are in inches, or L ≈ 0.2 × h × [ln(4h/d) + 1] nH when both are in millimetres. Here h is via length and d is drill diameter. A 1.6 mm via with a 0.2 mm drill gives about 1.43 nH in this model. Use a geometry-specific via and return-path model to assess capacitance, stubs and channel performance; this approximation alone does not establish a resonance frequency.

Related links

• High-Frequency PCB: Advanced Design Guide for RF and Microwave Applications
• multilayer PCB
