A vibration test evaluates a particular assembly, mounting arrangement and loading profile. For a board in an industrial cabinet, vehicle or transported instrument, identify the installed supports, connectors, component masses and operating state before choosing the test. A bare board, populated PCBA, enclosed product and shipping package are different test articles.
The useful result is a reproducible record: what was built, how it was mounted and excited, what was monitored, and which acceptance criteria were met. HILPCB’s fabrication, SMT/THT and box-build services can connect that test article with controlled assembly, programming, inspection and release records.

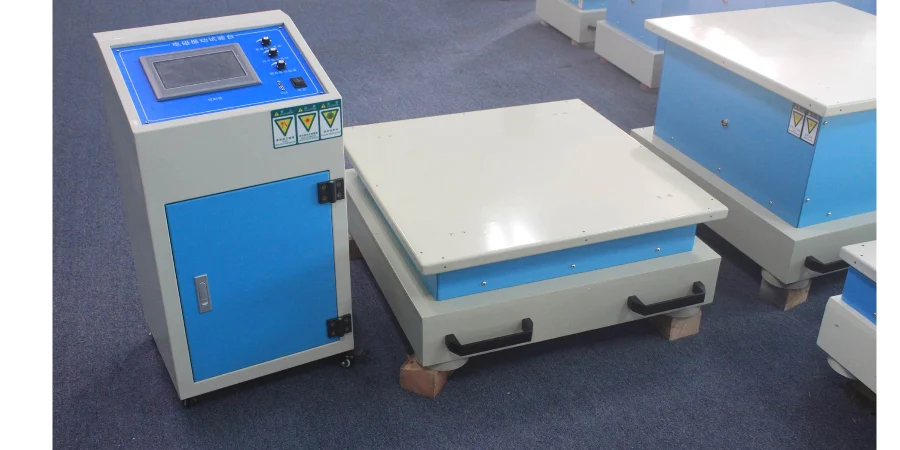

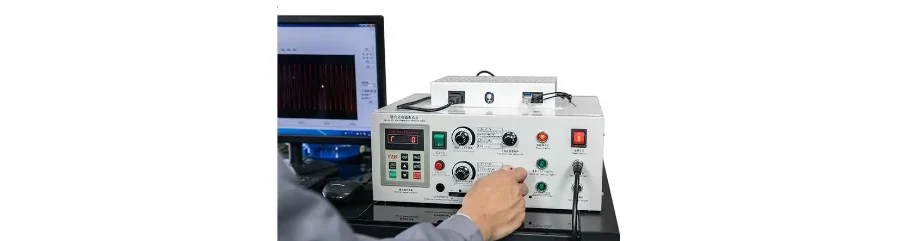

Core Vibration Testing Technologies and Analysis Methods
Select the method from the environment, purpose and approved specification. Qualification, design investigation and production screening need different sample plans and conclusions.
- Sinusoidal vibration: Apply the specified frequency/amplitude profile to investigate response or withstand a defined exposure. State whether acceleration/displacement is peak, peak-to-peak or RMS.
- Random vibration: Define the acceleration spectral density versus frequency, overall RMS acceleration, duration and control strategy. A single “g” value does not describe the spectrum.
- Shock: Specify pulse shape, acceleration, duration, direction and repetitions. Shock is a separate transient exposure, not a substitute for a vibration spectrum.
- Sweeps and dwells: Record sweep law/rate, response investigation and any specified dwell. A search sweep that locates a resonance is not automatically a full endurance test.
- Axes: State the orientation and exposure for each axis. Sequential single-axis testing and simultaneous multi-axis excitation are different arrangements; neither is implied by “three-axis.”
- Combined environments: Add temperature or other conditions only when the plan requires them, with the correct sequence, ramp/dwell and powered state. Thermal cycling and vibration need not always run together.
- Instrumentation: Select control and response accelerometers, mounting, calibration range, cable restraint, sampling/filtering and uncertainty for the required measurements.
- Modal analysis: Use excitation/response measurements or a model to identify mode shapes, frequencies and damping. The fixture and installed supports can change those results.
- Fatigue estimates: Relate the loading, local stress/strain, material/joint model and failure mechanism. One successful accelerated exposure does not by itself establish service life.
Sine acceleration and displacement are related by a_peak = (2πf)² × x_peak. For an illustrative 1g peak sinusoid using g = 9.80665m/s², displacement is about 2.48mm peak at 10Hz but 0.0248mm at 100Hz. This is a motion relationship, not a recommended PCB test level. It explains why frequency, shaker stroke, payload, fixture and force limits must be reviewed together.
Vibration Testing Standards and Compliance Requirements
Select the document, revision, mounting category, severity and acceptance criteria for the actual product. A test-method number alone does not define a qualification or certify every PCB made by a factory.
General environmental methods: IEC 60068-2-6 addresses sinusoidal vibration; IEC 60068-2-64 addresses broadband random vibration. Use the relevant specification to select the exposure and acceptance basis; there is no universal industrial 1–10g requirement.
Automotive equipment: ISO 16750-3 describes mechanical loads for road-vehicle electrical/electronic systems and components, with tests associated with mounting location. Use the applicable OEM/program requirements. AEC-Q100 concerns IC qualification and AEC-Q200 passive components; neither is blanket qualification of a populated board.
Aerospace and defense: Where a program calls for MIL-STD-810, use the tailored method, procedure, configuration and severity. It is not a general PCB product certificate, and a method reference does not establish an aircraft or system approval.
Transport packaging: ASTM D4169 evaluates shipping containers and systems within a distribution-test plan. Test the defined shipping unit and packaging; passing a packaged transport sequence is different from demonstrating installed-board operational endurance.
For heavy-copper assemblies, tall connectors or rigid-flex constructions, capture the actual mass, supports, flex transitions, harness and prior assembly exposure. Those features affect the test article; they do not select an automatic higher-g profile.
Advanced Vibration Testing for PCB Reliability
Close the measurement and configuration details before the qualification samples are built:
- Calibration and uncertainty: Record instruments, sensor mounting, calibration status and the frequency/amplitude range in which the measurement is valid. Instrument accuracy alone is not the uncertainty of the complete test.
- Environment and operating state: Identify temperature, conditioning history, firmware, power, loads and monitoring requirements. Record deviations and interruptions.
- Fixture and mounting: Reproduce the intended boundary conditions, fasteners/torque, standoffs, enclosure and harness restraint. Check fixture response and control locations; an overly rigid fixture can hide a board mode or impose an unrealistic load.
- Monitoring: Define which continuity, supply, communications or functional signals are monitored, with sample rate and interruption limits. A loose connector or transient open may recover before a post-test functional check.
- Failure analysis: Preserve the failed state and configuration. Combine visual inspection, appropriate electrical checks and selected X-ray/microsection or other analysis; no single inspection method reveals every fatigue crack.
- Traceable records: Link sample/lot identity, build revision, hardware/firmware, fixture, profile, raw/control/response data, interruptions and post-test disposition. A PCB viewer can help review board features; stress maps and failure coordinates need their own model, measurement and report references.
Ensuring Vibration Reliability in PCB Design and Testing
Simulation-Based Design for Vibration Resistance
Mechanical FEA can help compare board thickness, component mass, supports, stiffeners and enclosure interfaces. Use representative material properties, joint/contact assumptions and damping, then correlate important modes with measurements. A model of the bare laminate cannot automatically predict the fatigue life of an assembled BGA joint or connector.
Review unsupported spans, heavy components, mounting-hole regions and rigid-flex transitions. Adjust placement or support where it reduces the relevant response without creating a new stress concentration. The aim is to manage response over the specified environment, not simply to minimize resonant frequency. High Tg alone does not establish vibration endurance; construction, temperature-dependent properties, joints and mounting also matter.
Environmental Testing for Mechanical Robustness
Build representative samples with the approved stackup, parts, soldering process, firmware and installed mounting. For industrial machinery, vehicle equipment or civil UAV electronics, agree the relevant measured/customer profile and the assembly/system boundary. Define the before/during/after checks and any order of thermal, humidity, shock or vibration exposures.
Capture intermittent electrical behavior as well as visible damage. If a failure occurs, distinguish fixture or cable problems from board flexure, solder/lead fatigue, pad/barrel damage or loose hardware. Keep the profile, response and build records with the analysis before changing a material, support, component or reflow process. Retest the justified change against the agreed acceptance plan.
HILPCB Manufacturing Support for a Vibration-Tested Assembly
HILPCB’s vibration-testing infrastructure includes electrodynamic shakers, environmental-control chambers, precision accelerometer arrays, automated data acquisition and modal-analysis capability. Its box-build route offers this testing for qualified assembly configurations. Engineering services include fixture development, test-program design, failure analysis and fatigue modeling. Instruments use NIST-traceable calibration within their stated frequency/amplitude ranges; qualified measurement setups offer ±2% accuracy, and controlled-environment testing can hold temperature variance to ±1°C with humidity and ESD safeguards as configured; Vibration testing integrates with HILPCB’s ISO 9001-certified manufacturing quality system at the applicable listed entity/site and current certificate scope, including SPC, failure tracking, field correlation, reporting and test-article traceability. This manufacturing system is not laboratory accreditation or finished-product approval. Combined or multi-axis testing is available for qualified payload/fixture configurations under an agreed profile. Confirm axes, loads and limits for the actual assembly.
Construction and assembly review: Fabrication and SMT/THT review can address board geometry, mounting/slot tolerances, heavy parts, support/carriers, mixed packages, connectors and access. Standard SMT includes 0201 components and 0.4mm pitch, with finer packages reviewed for the actual footprint, stencil, support and inspection route.
Inspection and functional evidence: SPI/AOI, selected X-ray, programming and defined ICT/FCT can establish the specified assembly checks before and after exposure. Provide the firmware, load/fixture, accessible signals and numerical limits so the quoted coverage matches the requirement.
Repeatable release: Turnkey assembly, partial-turnkey or consigned sourcing can follow approved MPNs and substitution rules. First-article, reflow, inspection, programming/test and material/lot records can tie a qualification sample to repeat production. Agree unit/lot linkage, retention, rework/retest and change notification rather than assuming the original result covers later configurations.
For a vibration-related PCB/PCBA inquiry, send the fabrication/stackup, BOM/placement, enclosure and mounting drawings, masses/fasteners/torque, harness details, quantities and build stage. Include the required document/revision, profile/spectrum, axes/duration, powered state, monitoring/failure limits, sample plan and requested records. This lets the build, integration and test scope be reviewed together before releasing qualification samples.
FAQ
What types of failures can vibration testing detect effectively?
It can expose the failure modes excited by the selected profile and mounting, such as intermittent connections, solder/lead fatigue, pad/barrel damage or loose hardware. Define in-test monitoring and post-test analysis; a pass does not rule out every field failure mechanism.
How does vibration testing frequency range selection affect results?
It determines which excitation and response are evaluated. Select the range from the applicable environment/specification and investigation purpose, then review fixture and assembly response. A universal automotive or aerospace frequency band is not sufficient to define the test.
What factors determine vibration testing program duration?
The method, severity, axes, sweep/dwell or random exposure, sample plan and qualification purpose. Life prediction additionally needs a defensible fatigue model and failure-mechanism correlation; simply extending the test does not establish a lifetime.
Can vibration testing accommodate complex assembly configurations?
It can use a designed fixture for a board or box-build assembly, subject to payload, force, stroke, mounting and monitoring constraints. Agree how the enclosure, harnesses, connectors and loads reproduce the installed configuration.
How do environmental factors affect vibration testing accuracy?
Temperature can change the specimen/fixture response and instrumentation behavior; humidity, cabling and electrical noise may affect particular measurements. Control or record the relevant conditions and uncertainty. Not every vibration test requires an EMI-shielded or humidity-controlled chamber.
What quality standards apply to vibration testing programs?
Use the product/customer specification with the selected method—for example, IEC sinusoidal or random methods, vehicle mounting requirements or a tailored environmental program. Packaging distribution and component qualification have different scopes; name the revision, test article and acceptance basis.
What are integrated-circuit vibration testing and the ISO 16750 question?
For packaged ICs, a supplier qualification may reference JEDEC methods such as JESD22-B103. AEC-Q200 concerns passive components, while ISO 16750-3 addresses vehicle equipment mechanical loads within its scope. Component results and board assembly qualification are separate evidence.
