In our hyper-connected world, the radio frequency (RF) antenna is the unsung hero. It is the fundamental component that transforms guided electrical signals into waves that travel through the air, enabling every wireless technology we rely on-from 5G and Wi-Fi to GPS and the Internet of Things (IoT). However, designing a high-performance antenna is a complex multidisciplinary challenge, blending electromagnetic theory with materials science and precision manufacturing.
This definitive guide provides engineers and designers with a comprehensive understanding of RF antennas, from first principles to advanced applications. We will explore the critical performance parameters that define an antenna's effectiveness and delve into the crucial considerations for RF antenna PCB manufacturing, a factor that can make or break a product's wireless capabilities.
1. The Fundamental Physics of RF Antennas
At its core, an antenna's operation is governed by Maxwell's equations. It functions by creating a time-varying electromagnetic field.
- Transmission: When an alternating current from a transmitter is applied to the antenna's conductive elements, it generates oscillating electric (E) and magnetic (H) fields. These fields are perpendicular to each other and radiate away from the antenna as a self-propagating electromagnetic wave.
- Reception: Conversely, when an incoming electromagnetic wave passes over the antenna, its fields induce a small alternating current at its terminals, which is then processed by a receiver.
A key concept is resonance, where the antenna's physical length is tuned to the wavelength of the RF signal (e.g., a half-wave dipole is approximately half a wavelength long). At its resonant frequency, the antenna is purely resistive, allowing for the most efficient energy transfer.
2. Critical Performance Parameters for Antenna Analysis
Evaluating an antenna requires a precise set of metrics. Understanding these parameters is essential for selecting or designing the right antenna for your application.
- Gain & Directivity: Directivity measures an antenna's ability to focus energy in a particular direction, while Gain accounts for real-world losses (efficiency). A high-gain antenna is like a spotlight, concentrating power for long-range, point-to-point links. It's one of the most important key parameters for antenna performance analysis.
- Radiation Pattern: This 3D plot visualizes how an antenna radiates power. It shows the main lobe (desired direction), side lobes, and back lobes (unwanted radiation). The goal is often to maximize the main lobe while suppressing others to prevent interference.
- Impedance Matching, VSWR, and Return Loss: For maximum power transfer, an antenna's impedance (typically 50 Ω) must match the transmission line. Any mismatch causes power to be reflected. This mismatch is quantified by the Voltage Standing Wave Ratio (VSWR) and Return Loss. A low VSWR (ideally < 1.5:1) is critical, as high reflections can even damage transmitter amplifiers.
- Bandwidth: This is the frequency range over which the antenna maintains acceptable performance (e.g., a specified VSWR). Antennas can be narrowband for specific applications or broadband to cover multiple communication standards.
- Polarization: This describes the orientation of the wave's electric field (Linear, Circular, or Elliptical). For stable links, the transmit and receive antennas must have matching polarization. Circular polarization is highly effective for satellite communications and RFID, where the antenna orientation is variable.
- Efficiency: This metric compares the power radiated by the antenna to the power delivered to it. Losses can occur due to impedance mismatch (mismatch loss) and heat dissipation in the antenna's materials (dielectric and conductor loss).
3. A Comprehensive Taxonomy of RF Antenna Types
Different applications demand vastly different antenna designs. Here’s a breakdown of common types:
3.1 Wire Antennas
Simple and effective, these are often used in lower-frequency applications.
- Dipole/Monopole: The foundational antenna types. Monopoles are common in portable radios and require a ground plane.
- Yagi-Uda: A highly directional antenna known for its use in TV reception and amateur radio, providing high gain through a reflector and multiple director elements.
3.2 Aperture and Horn Antennas
These use an opening (aperture) to guide and shape the radiation.
- Horn Antennas: Flared waveguides that provide high gain and low VSWR. They are often used as feed elements for larger parabolic dishes or in microwave testing.
- Parabolic (Dish) Antennas: Offer extremely high gain and a very narrow beamwidth, making them essential for satellite uplinks, radar, and long-distance microwave links.

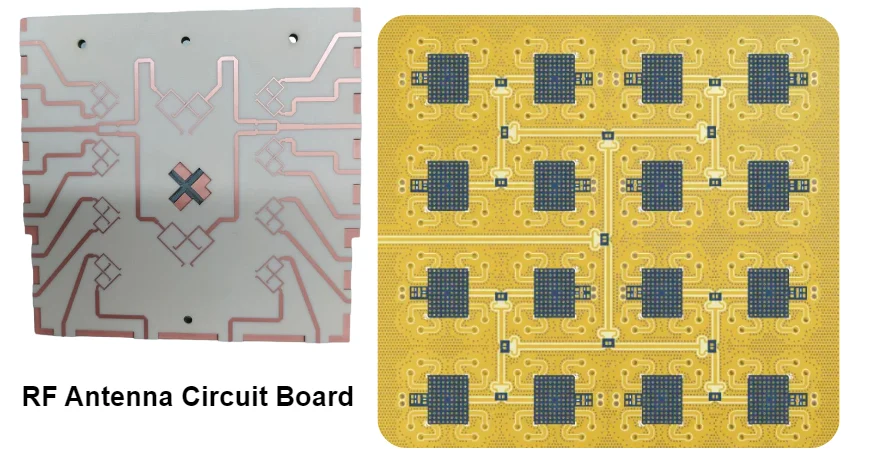

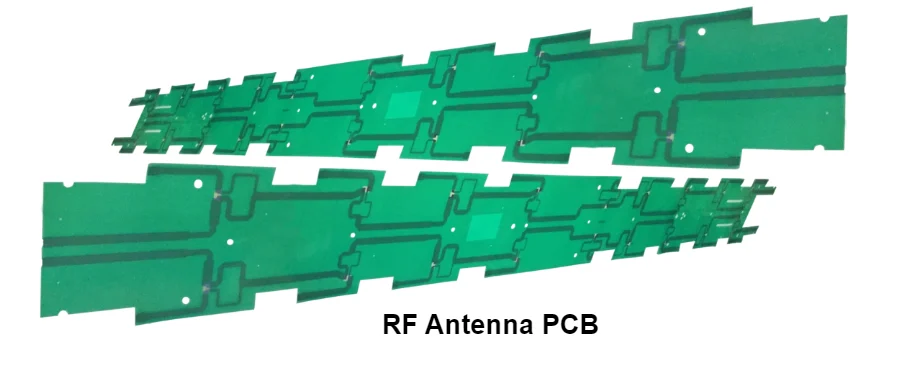

3.3 PCB Trace and Microstrip Antennas
These are fabricated directly onto a circuit board, offering excellent integration for modern electronics.
- Patch Antenna: A metallic patch over a ground plane, separated by a dielectric substrate. They are low-profile and widely used in GPS, Wi-Fi, and 5G devices. Their performance is highly sensitive to the properties of the PCB substrate.
- Inverted-F Antenna (IFA/PIFA): A compact design extremely popular in mobile phones and other handheld devices due to its small footprint and good efficiency. The design and performance of these antennas are heavily influenced by the device's main board, which often serves as the ground plane.
4. The Decisive Role of PCB in Antenna Performance
For PCB-integrated antennas, the circuit board is not just a carrier-it is an integral part of the antenna system. This is where a partnership with an expert manufacturer becomes critical.
4.1 Substrate Material Selection
The choice of PCB laminate is arguably the most critical factor for high-frequency antennas. Standard FR-4 PCB material is cost-effective for frequencies below 1-2 GHz, but its inconsistent dielectric constant (Dk) and high loss tangent (Df) make it unsuitable for more demanding applications.
For superior performance, engineers turn to specialized RF substrates. Materials from Rogers, such as those used in a Rogers PCB, offer stable Dk and extremely low Df, ensuring minimal signal loss. For millimeter-wave (mmWave) applications, a Ceramic PCB provides excellent thermal performance and an ultra-stable dielectric environment.
4.2 Advanced Manufacturing for Complex Antenna Systems
Modern antenna arrays, especially for 5G and radar, are complex systems requiring advanced fabrication.
- Phased Arrays: These systems require intricate feed networks to control the phase of each antenna element. These networks are often built using a Multilayer PCB to manage the dense routing and ensure precise trace lengths for accurate phase shifting.
- Miniaturization: To fit powerful antennas into compact devices like smartphones and wearables, designers often rely on advanced techniques. Using a Rigid-Flex PCB allows the antenna to be placed optimally for performance while conforming to the product's unique shape.
When sourcing production, many companies look for a partner who offers a combination of technical expertise, quality control, and cost-efficiency. This has made China RF Antennas PCB manufacturing a leading choice for businesses worldwide seeking to develop high-performance wireless products. The right partner can provide a complete turnkey assembly solution, from material selection to final testing.
5. Conclusion: An Antenna is a System, Not Just a Component
RF antenna design has evolved far beyond simple wire structures. Today, a successful antenna is the result of a holistic design process where electromagnetic simulation, material science, and precision manufacturing converge. The performance of a PCB-integrated antenna is inextricably linked to the quality of its substrate and the precision of its fabrication.
Whether you are developing a low-power IoT sensor or a complex 5G phased array, understanding these principles is key. Partnering with a manufacturing expert who understands the nuances of high-frequency materials and processes is the ultimate strategy for turning a theoretical design into a successful, high-performance wireless product.
