A 48V-to-12V conversion board can reduce distribution current upstream while supplying a familiar 12V rail to servers, communications equipment, industrial systems, robotics, or other high-power loads. “48V” is only a nominal architecture label, however. A production design needs the real input profile, output load, grounding and isolation rules, fault behavior, cooling boundary, telemetry, compliance targets, and manufacturing evidence.
This checklist makes those decisions explicit. It avoids universal claims about efficiency, copper weight, busbars, hot-swap, redundancy, or PMBus that may fit one rack architecture and fail another.
Key Takeaways
- Freeze the input minimum/nominal/maximum, surge and dropout waveforms before selecting semiconductors or protection clamps.
- Select non-isolated regulated, fixed-ratio, or isolated conversion from the system grounding, regulation, safety, transient and fault-containment requirements.
- At 1 kW, 12V output current is about 83.3 A. Current-path and thermal evidence must include copper, vias, connectors, shunts, fasteners and interfaces—not only MOSFET efficiency.
- Hot-swap, ideal-diode ORing and PMBus are requirement-triggered functions. Each adds failure modes, firmware or test obligations and should not be included by habit.
- Release evidence must cover efficiency and loss mapping, control stability, transients, protection, thermal behavior, EMC, mechanical connections, manufacturing process and change control.
Table of Contents
- Freeze the electrical and mechanical envelope
- Choose the conversion architecture
- Build a current and loss budget
- Engineer input protection and hot-swap
- Add redundancy only when the system requires it
- Lay out switching and high-current paths
- Close thermal, stability, and EMI risks
- Define telemetry and PMBus behavior
- Manufacturing control matrix
- Validation and release matrix
- Standards and responsibility boundaries
- NPI and requalification triggers
- 48V-to-12V conversion board RFQ checklist
- What can HILPCB support?
- Frequently asked questions
Freeze the Electrical and Mechanical Envelope
Start with a requirement table, not a topology. Every blank becomes either a quotation assumption or a future redesign.
| Requirement | Minimum definition | Evidence needed for release |
|---|---|---|
| Input source | Continuous range, tolerance, ripple, startup ramp, dropout, surge, reverse polarity and source impedance | Waveforms at board connector and protection nodes |
| Output load | Voltage/tolerance, continuous and peak current, slew rate, capacitance, pre-bias and dynamic profile | Static regulation and worst-case transient captures |
| Ground/isolation | Common ground or required galvanic isolation; working voltage and insulation objective | Architecture review and, if applicable, insulation test plan |
| Insertion/faults | Hot-plug state, upstream breaker/fuse, short-circuit energy, restart and latch behavior | Inrush, SOA, fault and coordination test results |
| Cooling | Ambient/inlet, airflow and pressure, cold plate or heatsink, altitude, neighboring heat and allowed temperatures | Thermal map with boundary conditions and uncertainty |
| Mechanics | Outline, height, mass, connector/busbar/fastener system, shock/vibration and service sequence | Drawing, torque/retention rules and mechanical validation |
| Control/telemetry | Enable, sequencing, current share, alerts, PMBus commands, accuracy, update rate and fault log | Register map, calibration and host-integration test |
| Compliance | Product market, rack/platform specification, safety, EMC and workmanship requirements | Named standards, editions, limits, owner and laboratory |
The 48V source may be a regulated rack bus, battery, telecom plant, vehicle-derived rail, or industrial supply. Their normal and abnormal voltage profiles are not interchangeable. Design voltage ratings from the specified waveform plus derating and clamp behavior—not from the nominal number.

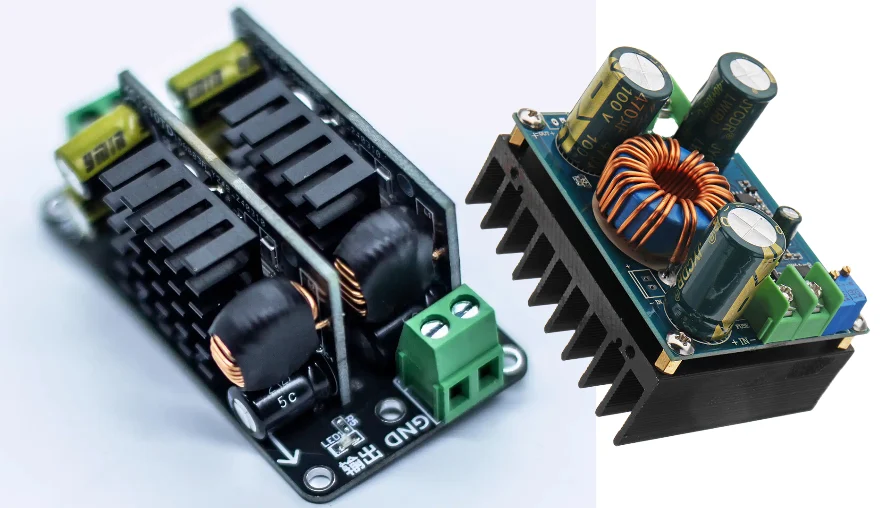

Choose the Conversion Architecture
| Architecture | Use it when | Main risks to close | Evidence before commitment |
|---|---|---|---|
| Regulated multiphase buck | Input/output share ground and a tightly regulated 12V rail is required | Duty-cycle range, phase balance, transient response, MOSFET/inductor loss | Controller operating range, loss model, loop and transient simulation |
| Fixed-ratio non-isolated bus converter | A near-4:1 transformation is acceptable and downstream regulation handles bus variation | Output tracks input, startup/fault behavior, bidirectional or reverse-current paths | Full source/load envelope and downstream tolerance review |
| Isolated LLC, phase-shift full bridge or other isolated topology | Galvanic isolation or system partitioning is required | Transformer design, circulating energy, synchronous rectification, insulation and control range | Isolation objective, turns ratio, loss and fault analysis |
| Two-stage architecture | Wide input, hold-up, isolation or regulation goals are easier to split | Added parts and conversion loss, sequencing and intermediate-bus faults | System-level efficiency, density and fault trade study |
Modern controllers support wide input ranges, interleaved phases, current sharing, pre-biased startup and protection, but a feature list does not select the external MOSFETs, magnetics, compensation or phase count. Likewise, GaN can reduce switching loss in a suitable design; it also changes gate-drive, layout, dead-time, dv/dt, EMI and assembly constraints. Use device-level loss and reliability evidence rather than treating the material as an automatic upgrade.
Isolation is not inherently “safer” unless the insulation system, creepage/clearance, transformer, barriers, accessible circuits and applicable product standard are designed and qualified together. A non-isolated converter may be correct inside an already protected extra-low-voltage architecture.
Build a Current and Loss Budget
Use first-order calculations to expose the real scale. Output current is Iout = Pout / 12V; input current is approximately Pout / (Vin × efficiency). At 1 kW, the nominal 12V current is 83.3 A, while 48V input current is roughly one quarter of that before loss. The exact values must use minimum input voltage, output tolerance, overload and measured efficiency.
Create a loss budget by operating point:
- high- and low-side MOSFET conduction, switching, dead-time and gate-drive loss;
- inductor copper/core loss and saturation margin;
- controller, driver, bias and auxiliary-rail loss;
- capacitor ESR/ripple loss;
- shunt, copper plane, via, connector, busbar, fuse, hot-swap and ORing loss;
- transformer, synchronous rectifier and isolation-related loss when applicable.
Efficiency alone can hide a localized failure. A 98% efficient 1 kW converter still dissipates about 20 W, and contact or current-sharing imbalance can concentrate part of that loss into a small connector, via field or single phase. Correlate calculated loss with current, voltage and temperature measurements.
Engineer Input Protection and Hot-Swap
Hot-swap is justified when the board is inserted into an energized source or when controlled inrush/fault isolation is required. Size it from input capacitance, source droop allowance, connector sequencing, startup time, load during ramp and worst-case temperature.
Charging capacitance stores E = ½CV². During startup or a short circuit, the pass MOSFET may operate simultaneously at high voltage and current. Check its time-dependent safe operating area with tolerance, temperature and repeated-retry behavior. A controller with power limiting can help keep the MOSFET inside SOA, but the designer still owns the FET, gate network, timer, thermal transient and fault waveform.
Protection coordination should define:
- upstream fuse/breaker limits and downstream converter faults;
- UVLO/OVLO thresholds, hysteresis and behavior during slow ramps or brownouts;
- reverse polarity and reverse current if credible;
- surge waveform, source impedance, TVS/clamp voltage, pulse energy and protected-device ratings;
- soft-start, current limit, circuit-breaker delay, latch-off or retry strategy;
- discharge, residual voltage and service safety after removal.
A TVS label or “80V MOSFET” is not enough. Measure the clamped waveform at the device under the specified source and layout parasitics.
Add Redundancy Only When the System Requires It
ORing prevents a failed or lower-voltage source from being back-driven. A diode is simple but its forward drop creates loss; an ideal-diode controller with a MOSFET can reduce that loss and respond to reverse current. The correct choice depends on voltage drop, fault energy, turnoff speed, MOSFET SOA, startup order and failure-mode analysis.
Redundant modules also need a current-share strategy, tolerance analysis and stability review. Test one module starting late, dropping out, shorting, current limiting, losing communication and recovering. “N+1” describes capacity, not proven fault containment or system availability. Availability claims require system architecture, repair assumptions and field data beyond the PCBA.
Lay Out Switching and High-Current Paths
The switching layout should minimize the commutation hot loop, gate-drive loop and high-dv/dt switch-node area. Keep controller sensing and compensation away from these nodes. Use Kelvin connections for shunts, current-sense elements and remote output sense; define where power and signal grounds join from the controller architecture.
For current paths, evaluate every series element. Copper weight alone does not set ampacity or temperature rise. Trace length/width, internal versus external layers, parallel-plane sharing, vias, copper balance, connector contacts, busbar joints, solder, fastener pressure, surface finish, ambient and cooling all matter. IPC-2152 can inform a starting estimate, but a dense multilayer power board needs project-specific modeling and measurement.
A heavy copper PCB or attached/embedded conductor may be appropriate when ordinary planes cannot close voltage-drop, temperature, area or reliability budgets. Specify copper construction, current distribution, via structures, tolerances, coupons and inspection. Review plane-to-pad thermal relief, solderability, warpage and etch capability before freezing the layout.
Close Thermal, Stability, and EMI Risks
Build the thermal network from junction through package, solder, PCB copper/vias, interface material, heatsink or cold plate, air and enclosure. Thermal vias help only when they lead to a useful sink. Specify interface pressure, flatness, pad thickness, airflow direction and blockage. Validate hot components at low line/high current, high line/switching-loss conditions, fan faults, phase imbalance and expected ambient.
Control-loop validation should cover input range, output capacitance/ESR, load steps, pre-bias, current limit, mode changes and component tolerances. Measure loop response where practical and correlate time-domain transients. Paralleled phases or modules need current-share dynamics as well as individual-loop stability.
An input EMI filter can interact with a converter's negative incremental input impedance. Analyze damping and source impedance rather than adding larger inductors and capacitors blindly. Separate common-mode and differential-mode paths, minimize noisy loops and provide defined chassis/shield returns. Pre-compliance scans are useful, but final limits and setup come from the applicable product/platform standard.
Define Telemetry and PMBus Behavior
PMBus is based on SMBus and the PMBus organization identifies revision 1.5 as the current full published specification. Using PMBus still requires a product-specific command and behavior definition.
Specify device addresses, bus voltage, pull-ups/capacitance, speed, PEC use, isolation if any, supported commands, data formats, update rate, warning/fault thresholds, ALERT behavior, startup defaults, nonvolatile settings, firmware access, security and recovery from a stuck bus. Separate measurement resolution from end-to-end accuracy.
Calibrate and validate input/output voltage, current, power and temperature across line, load and temperature. Record sensor location, shunt tolerance/TCR, Kelvin routing, ADC/reference error and filtering. Decide which faults persist, how logs are timestamped and cleared, and what happens if telemetry fails. The converter's protection must not depend on a management link unless the safety analysis explicitly supports it.
Manufacturing Control Matrix
| Manufacturing risk | Required input | Process control | Release evidence |
|---|---|---|---|
| Power QFN/LGA/BGA thermal pad | Land/stencil, package warpage and void/thermal criteria | SPI, profiled reflow, defined X-ray coverage | First article, profile and X-ray data |
| Large inductors/capacitors/connectors | Mass, coplanarity, solder and mechanical support rules | Placement support, reflow/selective/wave or manual process as qualified | Joint inspection, pull/retention or functional evidence |
| Heavy copper/large thermal mass | Stackup, copper balance and soldering constraints | Panel/warpage control and board-specific thermal profile | Cross-section/coupon and profile correlation |
| Shunt and Kelvin sense | Approved part/orientation and sense-node drawing | Placement inspection and controlled solder process | Resistance/offset and current calibration |
| Busbar or bolted joint | Finish, flatness, hardware, torque and sequence | Calibrated tooling, witness/traceability rules | Torque record plus voltage-drop/thermal result |
| MOSFET/heatsink interface | Flatness, pad/grease, pressure and insulation | Controlled material, thickness and fastener sequence | Assembly record and thermal correlation |
| Firmware/PMBus configuration | Released image, defaults, serial/address map and limits | Controlled programming with checksum/readback | Version and test data tied to serial/lot |
For through-hole assembly, select the soldering method from component temperature limits, copper mass, hole fill, accessibility and mechanical requirements. Large power parts are not automatically through-hole, and through-hole construction alone does not prove mechanical reliability.
Validation and Release Matrix
| Gate | Tests | Required result | Does not prove |
|---|---|---|---|
| Bare PCB | Netlist, construction, copper/via coupons, isolation or hipot if specified | Released board matches drawing and acceptance criteria | Converter function or thermal performance |
| Assembly | SPI/AOI/X-ray plan, polarity, profile, cleanliness and first article | Process evidence tied to revision/lot | Control-loop or protection behavior |
| Bring-up | Current-limited start, rails, gate waveforms, timing, phase operation | No abnormal stress; expected sequence and switching | Full envelope or fault safety |
| Performance | Efficiency/loss map, regulation, ripple, load/line transient, loop response | Limits met across defined matrix | Mission-profile durability |
| Protection | Hot-plug, surge, UV/OV, short, overload, reverse current, restart | Predictable containment with no overstressed part | Upstream/downstream system coordination unless tested |
| Thermal/EMI | Component/joint temperatures, airflow/cold-plate cases, conducted/radiated scans | Margins met with stated setup and uncertainty | Final product compliance outside that setup |
| Reliability/system | Power cycling, environmental/mechanical stresses, redundancy, telemetry and host behavior | Post-stress electrical comparison and no unacceptable degradation | Universal lifetime or availability |
Define input source impedance, cable/fixture, load slew, bandwidth, probe method, ambient, airflow, warm-up, sample count and pass limits. Retain raw data, not only a pass/fail screenshot.
Standards and Responsibility Boundaries
Applicable references may include IPC-2152 for current-carrying capacity guidance, IPC-9592B for power-conversion devices in computing/telecommunications, IPC-6012 and IPC-A-600 for rigid PCBs, J-STD-001 and IPC-A-610 for assembly, and J-STD-020/J-STD-033 for moisture-sensitive components. The product may also invoke PMBus 1.5, an Open Compute or other platform specification, CISPR/IEC EMC requirements, or IEC 62368-1 safety.
Use the edition and customer addenda named by the product authority. The customer owns the source/load envelope, topology and isolation decisions, protection coordination, firmware, rack/system behavior, compliance plan and final release. The PCB fabricator and assembler own only contracted construction, process, inspection, programming and test evidence. HILPCB should not be presented as the certifying body or system design authority unless separately agreed and demonstrably qualified for that scope.
NPI and Requalification Triggers
- Engineering validation: close topology, loss, magnetic, loop, protection, layout, thermal and test-access risks on instrumented builds.
- Design validation: use representative components, mechanics, firmware and cooling to test the complete electrical/fault/EMI/environmental matrix.
- Production validation: prove tooling, profiles, fixtures, measurement capability, torque, calibration, traceability, throughput, packaging and reaction plans.
Re-review PCB stackup/copper/via changes, MOSFET/diode/inductor/transformer substitutions, capacitor technology, controller or firmware, shunt/current sensing, connectors/busbars/fasteners, heatsink/interface material, stencil/paste/reflow, test limits/software, manufacturing site and adverse yield or field trends. The risk assessment determines which analysis and tests repeat.
48V-to-12V Conversion Board RFQ Checklist
Electrical design package
- Schematics, PCB data, netlist, stackup/fabrication drawing, BOM/AVL, centroid, assembly drawings, mechanical/thermal model, panel rules and revision history.
- Input/load waveforms and tolerances, topology/isolation, power sequence, protection/fault table, loss model, magnetic design, compensation, current-share and EMI filter details.
Current, thermal and mechanics
- Current-path map, copper/via requirements, connector/busbar/shunt drawings, finish, torque and retention; heatsink/cold-plate/TIM requirements, airflow and temperature limits.
- Component derating, creepage/clearance if applicable, coating/cleanliness, depanelization, shock/vibration and packaging constraints.
Assembly, test and quality
- Paste/alloy, reflow/selective/manual solder rules, inspection/X-ray criteria, rework limits, programming/configuration, fixtures, golden units, calibration, test matrix/limits, sampling, data retention and traceability.
- Applicable standards/editions, nonconformance authority, change notification, requalification triggers, lot definition, forecast and delivery requirements.
What Can HILPCB Support?
HILPCB can review the released 48V-to-12V PCB and assembly package, coordinate agreed copper and stackup requirements, identify DFM/DFA risks, and align fabrication, SMT assembly, through-hole or mechanical integration, inspection, programming, traceability and customer-defined test deliverables. For turnkey assembly, confirm controlled components, magnetics, busbars, heatsinks, fixtures, firmware and acceptance data during quotation.
Exact materials, copper capability, via structures, equipment, inspection coverage, thermal interfaces, torque processes, functional power limits, environmental/EMC tests, certifications and production capacity must be verified for the specific project. HILPCB does not replace the customer's power-system authority, safety/EMC laboratory, rack integration validation or final release decision.
Frequently Asked Questions
Should a 48V-to-12V converter be isolated?
Only when the system grounding, safety, noise or fault-containment requirements demand isolation. Define the insulation objective and applicable standard first; isolation adds transformer, spacing, control and qualification work.
Is a multiphase buck always the best topology?
No. It is strong for regulated, non-isolated high-current conversion, but fixed-ratio, isolated or two-stage architectures may better fit the input range, downstream regulation, fault behavior, density or safety requirements.
Does every 48V board need hot-swap and ideal-diode ORing?
No. Hot-swap addresses energized insertion and controlled inrush/fault isolation. ORing addresses redundant or potentially back-driven sources. Include each only when the system use case and failure analysis require it.
How much copper is required for an 80A output?
There is no universal ounce value. Determine copper, vias and any busbar from path length, allowable drop/temperature, layer sharing, connector/joint resistance, cooling, fabrication limits and validated current distribution.
What should production test on every converter board?
Risk-based candidates include identity/configuration, shorts, controlled startup, rail/current limits, output regulation/ripple, phase operation, telemetry and selected protection checks. High-energy faults, full thermal mapping, EMI and environmental qualification are usually controlled sample tests.
Quote the Power and Fault Envelope
A reliable 48V-to-12V board is a reproducible power system, not a nominal ratio printed on a schematic. Send HILPCB the source/load waveforms, loss and current-path budgets, cooling boundary, protection matrix, manufacturing controls, test limits, traceability and change rules so the quote reflects the evidence required for release.
