Choosing the wrong PCB factory rarely shows up as a lower invoice. It shows up three months later as a slipped ship date, a batch that fails in the field, or a "cheap" quote that grew 30% once tooling, testing, and rework were added. The board is the backbone of your product, and the factory you pick decides whether it performs the same on unit one and unit 100,000.
This is a checklist you can actually use โ written for the sourcing engineer comparing suppliers and the hardware engineer who has to live with the result. It walks through how to define your requirements, evaluate a factory on eight concrete criteria, read a quote without getting caught, protect your design when working with a China-based factory, and audit a facility before you commit. We build PCBs at HILPCB, so we know where buyers get burned โ and we'll flag those traps as we go.
Before You Compare Factories: Define Your PCB Requirements
The biggest sourcing mistake is comparing quotes before defining the spec. A cheaper number is meaningless if the factory can't reliably build your board. Nail down these five things first โ they narrow the field to suppliers who genuinely fit:
- Board type and technology. Rigid, flex, rigid-flex, HDI, heavy copper, metal-core, or high-frequency RF? A shop that only runs standard 2-layer FR4 is the wrong partner for a multilayer mmWave board โ no matter how good the price looks.
- Layer count and stack-up. How many layers, what impedance control, what materials (FR4, high-Tg, Rogers, polyimide)?
- Feature limits. Minimum trace/space (down to 3/3 mil for HDI), smallest via, aspect ratio, tolerances.
- Volume and stage. Prototype, small batch, or mass production. This drives both pricing and which factory makes sense โ the best prototype shop isn't always the best volume partner.
- Certifications and target metrics. Any mandatory standards (ISO 9001, IATF 16949 for automotive, ISO 13485 for medical), plus your target cost and required delivery date.
Write these down before you send an RFQ. The quality of a factory's questions back to you is itself a signal โ a good one will probe the gaps.
The 8-Point PCB Factory Evaluation Checklist
Score each candidate factory 1โ5 on the criteria below, then compare total scores alongside price rather than picking on price alone. This is how experienced buyers turn a fuzzy decision into a defensible one.
- Capability match. Can they demonstrably build your technology combination โ not just list it on a capabilities page? Ask for examples of boards with your layer count, materials, and features. A shop advertising "up to 64 layers" and "77 GHz high-frequency" should be able to show it.
- Quality systems and yield. Do they run statistical process control (SPC)? What is their first-pass yield and defect rate on boards like yours? Certifications matter (next section), but live process data matters more.
- Engineering and DFM support. Do they return real design-for-manufacturability feedback? A factory that flags a dozen potential issues in your files is showing exactly the competency you want. One that returns a quote with zero DFM comments on a complex board is either not looking or not able to look.
- Testing and inspection. AOI, flying-probe, X-ray for BGA, 100% impedance/TDR for controlled-impedance boards, and functional test for assemblies. Confirm what is standard versus an added charge.
- Traceability. Can they trace material lot, date code, and process data per board? Essential for automotive, medical, and aerospace, and a good hygiene signal everywhere.
- Lead-time reliability. Not the headline number โ the on-time delivery (OTD) rate over the last 12 months, and whether capacity fluctuates seasonally. (More on the lead-time trap below.)
- Pricing transparency. An itemized quote that separates fabrication, assembly, testing, tooling/NRE, and express surcharges โ so you can compare apples to apples.
- Communication and IP protection. Response time, a dedicated point of contact, English-language engineering support, and a willingness to sign an NDA/NNN. Slow or vague communication predicts slow, vague projects.
Certifications That Matter โ and What They Don't Tell You
Certifications are a starting point, not a finish line. They prove a factory built and audited a quality system; they do not guarantee every board meets your spec. Verify they're current and relevant to your product:
- ISO 9001 โ baseline quality-management system. Table stakes.
- IATF 16949 โ required for automotive supply.
- ISO 13485 โ required for medical devices.
- UL โ safety listing for the board and materials.
- IPC-A-600 / IPC-A-610 Class 2 or 3 โ workmanship acceptance. Class 3 for high-reliability (aerospace, medical, automotive safety).
- RoHS / REACH โ hazardous-substance compliance for your target markets.
The nuance experienced buyers apply: ask for the certificate number and scope, confirm it covers the specific facility making your board, and โ for anything critical โ back it with a factory audit and a pilot run. A certificate on the wall and a stable process on the floor are not always the same thing.
How to Read a PCB Quote (and Spot Hidden Costs)
Two quotes that look 15% apart can be identical once you normalize them โ or the "cheaper" one can end up higher. Here's what to check:
The lead-time clock. Lead time is the most commonly misrepresented number in PCB procurement. A "5-day standard lead time" usually means five working days from Gerber approval, not from the day you place your order. Before committing, confirm: Is the clock from order confirmation or from file approval? How long is engineering review before production starts? Are express options available, and at what premium? What was OTD over the past 12 months?
Itemized cost, not a lump sum. Insist on a quote that breaks out fabrication, assembly (SMT/through-hole), testing, tooling/NRE, and shipping. A single number hides where the money goes and makes comparison impossible.
Tooling, NRE, and MOQ. One-time tooling and setup fees dominate low-volume unit cost, then amortize away as volume climbs โ which is why mid-volume runs (roughly 500โ5,000 units) see unit cost drop sharply. Ask for the MOQ and the fee schedule so you can model the crossover point.
Total landed cost, not unit price. For offshore orders, add shipping, import duties, and the cost of potential rework and delay. A low base price with a high rework rate is expensive. Always compare landed cost.
As a rough orientation only, a simple 2-layer FR4 prototype (10 pcs) runs materially less from Asian factories than from US/EU shops, while HDI and flex boards cost far more per panel everywhere because the process is more intensive. Use current itemized quotes for real numbers โ benchmarks age quickly.
Choosing a China PCB Factory: IP Protection, Communication & Logistics
China PCB factories offer a real cost advantage, but "cheapest quote" is not the same as "lowest total cost or lowest risk." Three things separate a reliable China partner from a gamble:
Protect your IP in writing. This is the concern buyers raise most and the one that's easiest to address. Require a robust NDA โ and ideally an NNN agreement (Non-disclosure, Non-use, Non-circumvention), which is more enforceable in China than a Western-style NDA alone. Ask how the factory controls access to your design files, and what its data-retention and deletion policy is. A supplier that signs readily and can describe its file-security process is telling you something good.
Confirm real communication capability. Look for English-language engineering support (not just sales), a dedicated contact, and responsiveness across time zones. Miscommunication is where offshore projects quietly lose days and gain defects.
Plan logistics and compliance. Clarify Incoterms, shipping method and transit time, and who handles import duties and customs. Confirm RoHS/REACH compliance for your destination markets. Build the landed-cost picture before you compare against a domestic quote.
Handled well, a China factory gives you international-standard quality at a competitive price. HILPCB pairs that cost benefit with ISO 9001, IATF 16949, and IPC Class 2/3 processes, full traceability, and responsive English-language support โ so you get the savings without the sourcing risk.

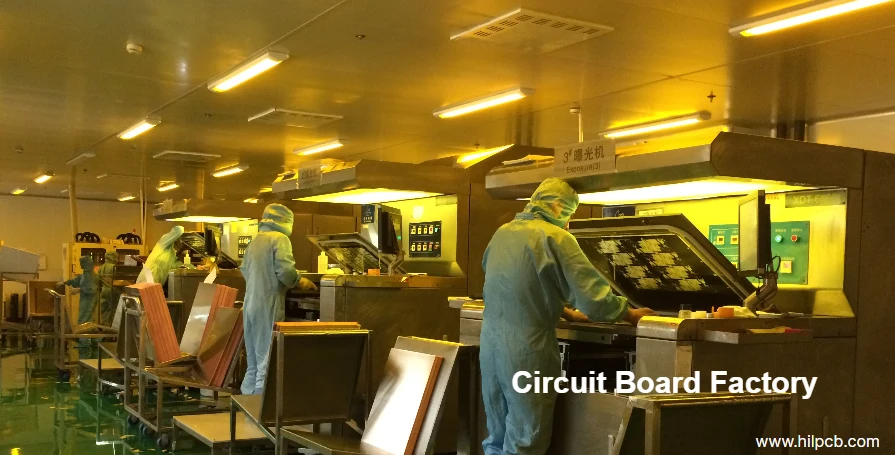

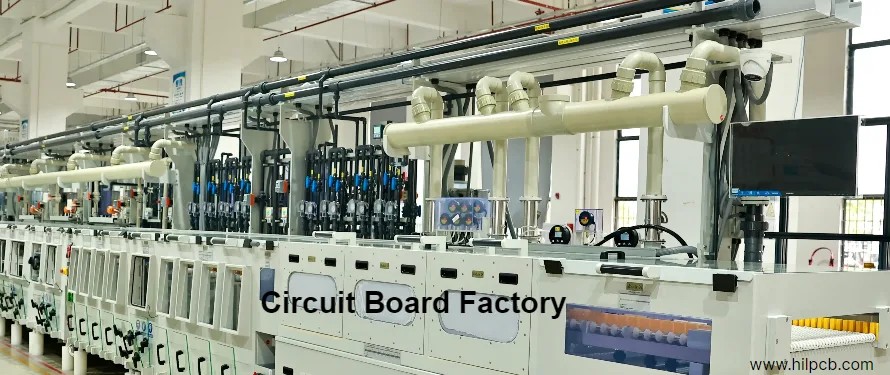

How to Audit a PCB Factory (On-Site or Remote)
For any supplier you're considering for production volume, a factory evaluation is non-negotiable. It can be an on-site visit, a third-party audit, or a structured remote audit using the factory's documentation, photos, and video walkthroughs. Key checkpoints:
- Equipment age and maintenance โ modern, well-maintained lines for drilling, plating, etching, lamination, and testing.
- Process control documentation โ SOPs and work instructions in use on the floor, not just on paper.
- SPC implementation โ are they measuring and controlling process variation, with data to show it?
- Operator training and certification โ skilled, certified operators on critical processes.
- A pilot build โ run one or two pilot lots that mimic your real production conditions, and measure yield, OTD, and issue resolution before you commit critical programs.
A factory that welcomes an audit and shares yield and OTD data is confident in its process. Reluctance is a signal in itself.
Prototype to Mass Production: Scaling Without Surprises
The best partner supports your whole product lifecycle, not one order. A shop that nails a 10-piece prototype may struggle to hold yield and lead time at 500,000 units โ capacity and process stability matter as much as price at volume.
- Prototyping. Fast, accurate quick-turn builds so you can validate the design before committing tooling. Prototypes typically ship in 3โ5 days.
- Mass production. Automated processes that hold consistent quality from the first board to the thousandth, with mass-production lead times around 7โ10 days depending on complexity.
- One partner across stages. Keeping design, fabrication, and assembly under one roof preserves process knowledge and avoids the re-qualification cost of switching suppliers mid-lifecycle.
At HILPCB we run both rapid prototyping and high-volume production, so the transition from validation to scale doesn't mean starting over with a new vendor.
Key Questions to Ask Before You Sign
Copy this into your RFQ or supplier call:
- What is your on-time delivery rate over the last 12 months, and is the quoted lead time from order or from Gerber approval?
- Can you show boards you've built with my exact layer count, materials, and features?
- What is your first-pass yield and defect rate on boards like mine?
- Which certifications do you hold, and do they cover the facility making my board?
- Will you provide DFM feedback before production, and an itemized quote?
- Will you sign an NDA/NNN, and how do you secure and delete my design files?
- What are your MOQ, tooling/NRE fees, and how does unit price change with volume?
- Can I audit the factory (on-site or remote) and run a pilot build?
Why Buyers Choose HILPCB
- Broad, proven capability โ multilayer up to 64 layers, HDI, heavy copper, and high-frequency boards up to 77 GHz for 5G, automotive, and medical electronics.
- Prototype to volume under one roof โ from design and rapid prototyping to assembly and test, without switching vendors as you scale.
- International standards, China pricing โ ISO 9001, IATF 16949, IPC Class 2/3, RoHS-compliant materials, full traceability.
- Responsive engineering support โ real DFM feedback, English-language communication, and NDA/NNN on request.
Frequently Asked Questions
What's the single most important factor when choosing a PCB factory? There isn't one โ but capability match and process control (quality) sit above price. A low quote from a factory that can't reliably build your board costs more in the end through failures, rework, and delay. Score capability, quality, engineering support, and lead-time reliability together, then weigh price.
How long does it take to produce a PCB? Prototypes typically ship in 3โ5 days; mass production runs around 7โ10 days, depending on complexity and volume. Always confirm whether the quoted clock starts at order confirmation or at Gerber approval โ the difference is often several days.
Should I choose a prototype shop or a mass-production factory? Ideally one partner that does both well, so you don't re-qualify a new supplier when you scale. Verify the factory can hold quality and lead time at your target volume, not just at prototype quantities.
Is a China PCB factory cheaper than a domestic one? Base fabrication price is usually lower offshore, but compare landed cost โ shipping, duties, and any rework/delay. A capable China factory with strong quality systems and IP protection often delivers the best total value; the risk comes from choosing on price alone.
How do I protect my design IP with a China supplier? Require an NDA and, ideally, an NNN agreement (Non-disclosure, Non-use, Non-circumvention), which is more enforceable in China. Ask how the factory restricts file access and its data-retention/deletion policy. A supplier that signs readily and can explain its file security is a positive sign.
Which certifications should a PCB factory have? ISO 9001 as a baseline; IATF 16949 for automotive; ISO 13485 for medical; UL for safety; IPC-A-600/610 Class 2 or 3 for workmanship; RoHS/REACH for market compliance. Confirm the certificate's scope covers the facility building your board, and back critical programs with an audit and pilot run.
Can I verify a factory without visiting in person? Yes. Use a structured remote audit โ documentation, floor photos, and video walkthroughs โ plus a third-party audit if needed, and run a pilot build that mimics your real production conditions before committing volume.
