Remote control technology has come a long way from the early days of television clickers and toy cars. Today, remote control circuits are used in everything from smart home systems to industrial robots, drones, and autonomous vehicles. These circuits allow us to control a device wirelessly using infrared light, radio frequency, Bluetooth, Wi-Fi, or even AI-driven systems.
This article explains what remote control circuits are, how they work, and the different types that dominate modern electronics.
What Are Remote Control Circuits?
A remote control circuit is an electronic system designed to send and receive control signals between two devices without a physical connection. It generally consists of a transmitter that converts a user’s input into a coded signal and a receiver that decodes and executes that command.

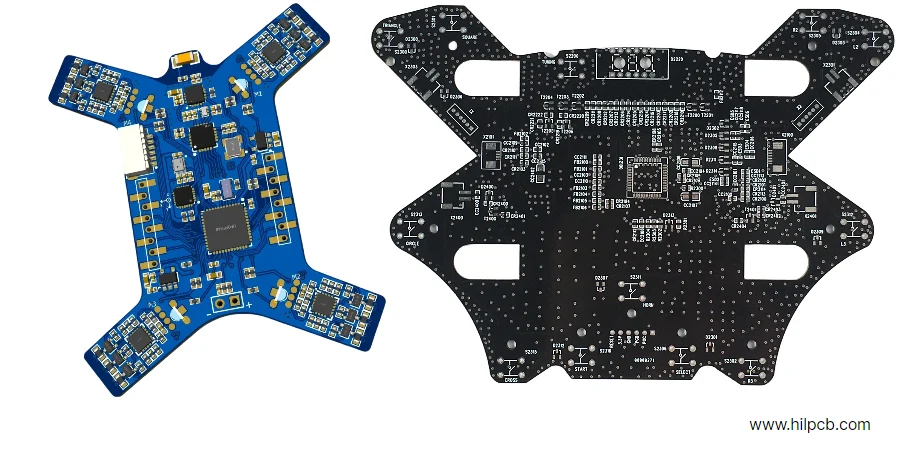

These circuits can be found in televisions, lighting systems, garage doors, drones, and even electric vehicles. In most designs, a printed circuit board (PCB) connects the transmitter, receiver, and other components-ensuring stable power flow and reliable communication.
Early versions used ultrasonic tones or wired control, but today’s designs rely on sophisticated wireless technologies for precision and long-range operation.
How Do Remote Control Circuits Work?
The working principle of any remote control circuit is simple but powerful:
- The transmitter captures user input, such as pressing a button or moving a joystick.
- That input is encoded as an electrical signal and sent wirelessly-via infrared, radio, or digital transmission.
- The receiver interprets the signal and triggers an action-turning on a light, moving a motor, or adjusting volume.
Modern circuits can transmit thousands of signals per second, allowing for real-time control in applications like RC cars, robots, or drones. AI-assisted systems now even analyze signal patterns to predict commands and prevent communication errors.
Types of Remote Control Circuits
Let’s explore the main categories of remote control circuits used today.
1. Infrared (IR) Remote Control Circuits
Infrared remote control circuits were among the earliest wireless systems. They use infrared light (typically 38 kHz) to send signals from transmitter to receiver. These circuits are low-cost and energy-efficient, ideal for TVs, air conditioners, and audio systems. However, they require a line of sight and work only over short distances (around 5-10 meters). A typical IR remote circuit includes an IR LED transmitter, a photodiode receiver, and a decoder IC such as TSOP1738.
2. Radio Frequency (RF) Remote Control Circuits
RF remote control circuits transmit data using electromagnetic waves at frequencies like 315 MHz, 433 MHz, or 2.4 GHz. Unlike infrared, RF can penetrate walls and operate over long distances. They are widely used in remote-controlled cars, drones, and smart home devices.
An RF circuit typically includes:
- An RF transmitter module (encoder + oscillator)
- An RF receiver module (decoder + antenna)
- A control PCB that processes the received signal
Modern RF circuits use spread-spectrum or frequency-hopping techniques for interference-free performance, allowing multiple devices to operate simultaneously.
3. Bluetooth Remote Control Circuits
Bluetooth-based circuits are perfect for short-range, two-way communication. These are common in audio systems, mobile apps, and robotic control. A single Bluetooth module (like HC-05 or BLE 5.3 chipsets) can send and receive data, enabling feedback such as speed, battery level, or motor temperature.
They are extremely power-efficient and can integrate directly into compact PCBs with minimal external components.
4. Wi-Fi and IoT Remote Control Circuits
Wi-Fi circuits have changed the way we interact with electronics. They connect devices directly to cloud platforms or mobile applications, allowing global access and control. Modules like ESP8266 and ESP32 make it possible to design IoT-enabled remotes that can switch appliances, monitor sensors, or even stream video from cameras.
Wi-Fi remote circuits support:
- Real-time telemetry
- Over-the-air (OTA) firmware updates
- Voice assistant compatibility (Alexa, Google Home)
These are now the backbone of smart home automation and industrial monitoring systems.
5. AI and Smart Remote Control Circuits
The latest generation of remote control circuits integrates AI algorithms, sensors, and real-time data analysis. These systems can:
- Recognize gestures or voice commands
- Automatically correct motion (as in AI-based RC cars)
- Map surroundings and plan routes autonomously
- Adjust control sensitivity based on environmental feedback
In advanced designs, AI controllers use machine-learning chips or embedded microcontrollers that process signals directly on the PCB without needing external computation.
6. Smartphone and App-Based Remote Control Circuits
Today, smartphones themselves act as remote transmitters through Bluetooth or Wi-Fi. Paired with embedded circuit boards, they allow users to control devices via mobile apps. App-based remotes support:
- Real-time control dashboards
- Speed and sensitivity adjustment
- Video feedback (FPV)
- Firmware updates and logging
This type of circuit is now common in modern drones, RC vehicles, and smart appliances.
Building a Remote Control Circuit
Designing your own remote control circuit can be an exciting project. The essential components include:
- Transmitter module (IR, RF, Bluetooth, or Wi-Fi)
- Receiver module
- Microcontroller (e.g., Arduino, STM32, ESP32)
- Power supply or battery
- Printed circuit board (PCB)
For stability, PCB design must separate high-current motor lines from low-power logic circuits, add decoupling capacitors, and use short signal traces to reduce interference.**** With these considerations, you can create reliable remote control systems for RC cars, robots, or home automation. Once the design moves past hand-soldered prototypes, SMT assembly keeps RF module and decoupling placement consistent from board to board.
FAQ
What makes a remote control circuit reliable instead of just functional?
A reliable remote control circuit does more than send and receive signals in ideal conditions. It must maintain stable communication, resist interference, manage power correctly, and keep control logic predictable even when the device operates near motors, switching noise, batteries, or changing environments.
Why is PCB layout so important in remote control circuits?
Because remote control performance depends heavily on signal integrity, grounding, and noise isolation at the board level. Poor separation between power and logic paths, weak decoupling, or careless antenna and trace routing can reduce range, create false triggering, or make the system unstable even if the schematic looks correct.
How should teams choose between IR, RF, Bluetooth, and Wi-Fi control methods?
They should choose based on range, data needs, latency tolerance, environment, and system complexity rather than popularity alone. IR is simple and low cost for line-of-sight use, RF is good for robust basic wireless control, while Bluetooth and Wi-Fi make more sense when the product needs app integration, richer data, or bidirectional intelligence.
What should be validated before scaling a remote control circuit into a real product?
Teams should validate communication robustness, EMC behavior, battery performance, response latency, PCB noise control, and behavior under realistic operating loads. The goal is to confirm that the control circuit stays dependable outside the lab, not just that it works in a clean demo environment.
Conclusion
From simple infrared remotes to AI-assisted smart systems, remote control circuits continue to define how we interact with machines. They’ve evolved from basic one-way transmitters to intelligent platforms capable of bi-directional communication, data logging, and autonomous control.
Whether it’s a drone controlled by a smartphone or a robotic car navigating on its own, every device depends on one thing-the precision and reliability of its remote control circuit.
