A wearable circuit may need to fold into a housing, bend around a wrist or elongate with a textile. These motions need different constructions. Ordinary polyimide flex can accommodate bending in a designed flex zone; repeated tensile extension needs an engineered stretchable structure and its own validation.
For designers and buyers, the useful starting point is the motion at the circuit, its electrical function during that motion and the required service life. A fitness tracker with a rigid electronics module and a flex tail may need no stretchable conductor. A skin patch spanning a moving joint may need compliant bridges between protected component islands.

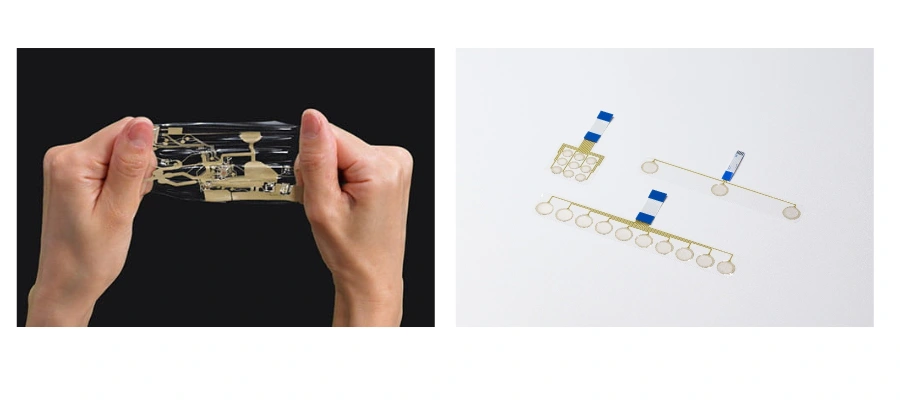

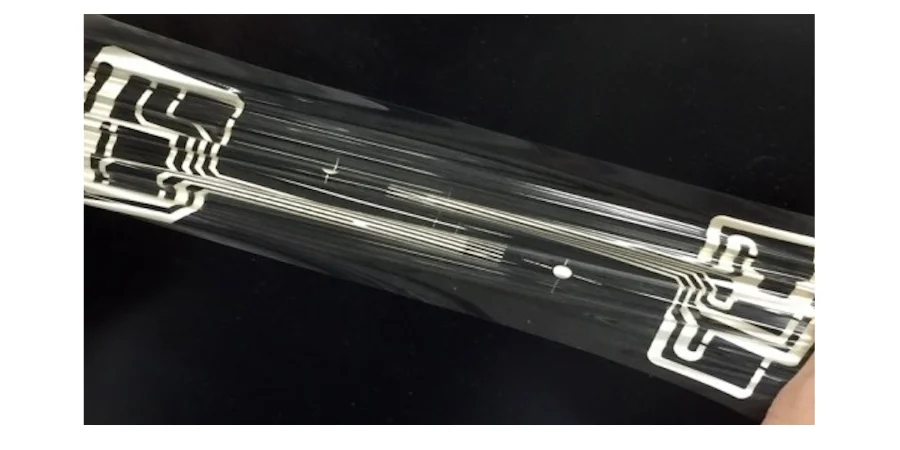

What Is a Stretchable PCB?
“Stretchable PCB” is often used for circuits that tolerate elongation through their materials, their geometry or both. Some use compliant substrates and stretchable conductors; others place conventional devices on relatively rigid islands connected by deformable interconnects. The island-and-bridge approach in published research illustrates how deformation can be directed away from fragile devices. It does not make every flexible laminate elastic.
Serpentine conductors can accommodate movement through geometric deformation. Local copper strain still depends on the shape, thickness, restraint and three-dimensional motion. The elastomer, adhesive, encapsulation, joints and connectors must also survive the intended loading. A material's elongation value alone is not a finished circuit rating.
Applications of Stretchable PCBs
The application determines whether bending flex, an island-and-bridge assembly or a specialized stretchable process is useful:
- Wearable electronics: Fitness trackers, health monitors and smart clothing may combine a rigid battery/radio module with a flexible or stretchable sensor connection. Define the actual extension and attachment points rather than assuming that every part stretches with the garment.
- Medical devices: Wearable ECG monitors and flexible biosensors need stable electrode connections, motion-artifact control and a defined contact duration. Skin-contact materials, processing residues and the finished assembly require the device's biological evaluation; flexibility alone does not establish skin safety.
- Flexible sensors: Touch and pressure surfaces can use deformation as the measured signal. Separate the intended sensor response from unwanted resistance drift in the interconnects, and specify calibration in the installed mechanical condition.
- Robotics: Soft robots and flexible actuators can impose repeated extension, bending and twisting. Keep heavy or rigid parts on supported islands and define the load path through the compliant links, terminals and attachment points.
- IoT and smart-home devices: Conformal sensors may fit curved housings using ordinary flex. Use a stretchable route when the installed circuit actually elongates; a fixed curved enclosure often needs only a controlled bend and secure mounting.
Durability, Comfort and Component Integration
Stretchable structures can reduce mechanical restraint on moving surfaces, but durability and comfort depend on the whole assembly. Assess the conductor, substrate and interface together:
- Durability: Identify the direction, extension, bend/twist, loading rate, dwell and cycle count. Check continuity and resistance while loaded and after unloading; intermittent opens can disappear in a stationary inspection.
- Comfort: Thickness, edge shape, adhesive, breathability, battery mass and attachment pressure affect wear. Sweat, cleaning and laundering are separate exposure conditions. Define which parts contact the user and who qualifies the finished device.
- Functionality: Sensors, antennas, microcontrollers and batteries can share the assembly, but most packaged parts need supported mounting areas. Movement can change an antenna's geometry or a sensor's calibration; validate function in representative worn or installed states.
As an illustrative calculation, extending a 50 mm gauge length to 55 mm gives (55 − 50) / 50 = 10% global engineering strain. If a monitored path changes from 5.0 Ω to 5.4 Ω while loaded, ΔR/R₀ = 8%. These are assumed measurements, not capability limits. They do not describe the local copper strain or establish fatigue life; record the unloaded recovery and behavior across the agreed cycles as well.
A high-Tg rigid laminate can suit a component island when its thermal/process properties are needed. Tg is not a measure of stretchability. Select the flexible link and compliant materials from their mechanical, electrical, bonding and environmental requirements.
Manufacturing Routes HILPCB Can Support
HILPCB's documented flex PCB route provides a practical manufacturing option for wearable interconnects and supported component areas. It includes PI constructions, with LCP and other advanced constructions by review, coverlay and stiffener choices. The published envelope lists 1–4 layers as standard and up to 8 by advanced review, with 75/75 µm standard and 50/50 µm advanced line/space. These are separate screening values; the released stackup, copper, coverlay, bend zone and assembly support determine the available combination.
A bend-radius or bending-cycle specification for flex does not establish allowable tensile elongation. For a true elastomer-based circuit or printed stretchable conductor, confirm the specialized fabrication, bonding and validation route before treating it as a production option. HILPCB can review the conventional flex, rigid island and assembly portions against their released drawings.
- Materials and construction: Define the conductor, substrate, adhesive, coverlay/encapsulation and stiffener boundaries. Keep component pads, vias and connector terminations out of the intended deforming zone unless that complete structure is specifically validated.
- Design handoff: Supply neutral and deformed outlines, island locations, clamping/attachment points and the required electrical paths. The transition from a stiff island to a compliant bridge deserves particular review because it transfers mechanical load.
- Assembly: SMT assembly can populate supported areas using a suitable panel/carrier, stencil and thermal route. Agree when compliant materials are added and whether they tolerate soldering, cleaning and rework.
- Inspection and validation: Gerber and 3D PCB viewers help inspect artwork and assembly geometry; they do not calculate tensile fatigue or certify a strain limit. Combine fabrication/assembly inspection with a defined fixture and electrical measurements during the actual motion.
From Prototype to a Repeatable Wearable Assembly
HILPCB supports custom stretchable-project design, material and process selection, assembly and validation, including qualified specialist stretchable elements integrated with conventional flex circuits and rigid islands. Test options cover stretch, bend and environmental exposure. Fast prototyping and low-volume flexibility support early builds, with global design-to-delivery customer support. Select the elastomer, interconnect geometry, strain limits and cycle profile for the intended wear location; a stretchable PCB does not by itself establish wearable-product durability.
Use the prototype to test the construction and its interfaces before committing to repeat quantities. HILPCB's flex and turnkey assembly services can combine conventional board fabrication, component sourcing, supported-area assembly and customer-defined testing. Identify any specialist stretchable element and its supply/assembly responsibility in the BOM and drawing package.
For comparable quotations, provide the following:
- Motion and environment: Original gauge length, maximum extension and direction, bend/twist, loading rate, dwell, cycles, temperature and sweat/wash/cleaning exposures where relevant.
- Electrical acceptance: Nets to monitor, current and voltage, resistance-change limits, allowable interruptions, sensor/antenna operating states, measurement method and pass/fail criteria during and after motion.
- Mechanical and material data: Conductor/substrate/adhesive/encapsulant identities, island and bridge geometry, attachment datums, skin-contact areas, tolerances and any approved specialist supplied parts.
- Build and release data: Fabrication files, stackup, BOM/MPNs, CPL, drawings, quantity, sourcing ownership, firmware/fixture/test requirements and the records needed for pilot release.
Ask the review to identify the conventional flex/assembly route, any specialist process dependency and the prototype evidence needed before repeat release. For enclosure, harness or mounting integration, include the relevant box-build assembly scope so the quoted work covers the installed load path as well as the board.
Frequently Asked Questions
Is a flexible PCB for wearable electronics the same as a stretchable PCB?
No. An ordinary flex circuit is designed to bend; it does not automatically tolerate repeated tensile extension. A stretchable structure uses compliant materials, engineered interconnect geometry or both to accommodate elongation. Specify the motion at the circuit: a flex tail may suit a fixed wearable housing, while a circuit spanning moving skin or textiles may need deformable bridges and a validated strain/cycle envelope.
