Power supply and cooling boards for data centers, electric vehicles, and high-performance computing now push more current through less copper than ever before. When the power delivery network (PDN) or the thermal path is undersized, the symptoms show up late and expensively: voltage droop under load, overheating BGAs, and field failures. This guide walks hardware and sourcing teams through the design decisions and manufacturing controls that make a high-power board reliable — from target-impedance planning through to conformal coating.
For a turnkey build, the useful objective is a revision-controlled flow from DFM and stack-up review through fabrication, assembly, inspection, programming, and contracted functional testing. System-level EVT, DVT, PVT, thermal, safety, and EMC acceptance still require customer-owned requirements and test limits.
A reliable power and cooling system PCB combines a defined PDN impedance target, current paths sized for allowable temperature rise, complete junction-to-coolant thermal paths, an assembly process matched to thermal mass, and tests with measurable limits. None of those outcomes is proven by copper weight or a "low-void" label alone.
Key Takeaways
- Derive PDN target impedance from the rail tolerance and worst credible load step, then define the frequency band and measurement boundary.
- Size copper, vias, connectors, shunts, fuses, and terminals from current, temperature rise, fault energy, and cooling conditions.
- Treat heatsinks, cold plates, fans, pumps, thermal-interface materials, sensors, and control firmware as part of the thermal system.
- Define voiding and workmanship acceptance by package, thermal-pad geometry, inspection method, and product risk.
- Put load-step conditions, thermal loads, environmental tests, fixtures, and retained evidence in the RFQ.
How to Calculate PDN Target Impedance
The job of a power delivery network is to keep the supply rail stiff — low impedance across every frequency the load cares about, from DC up to hundreds of MHz. The most useful single number for that is target impedance:
Z_target = (V_supply × Ripple_tolerance) / I_transient
Here Ripple_tolerance is the allowed ripple expressed as a fraction of the rail (5% = 0.05). A 1.0 V rail with a 5% ripple budget and a 20 A transient step needs:
Z_target = (1.0 V × 0.05) / 20 A = 2.5 mΩ
The 2.5 mΩ target applies across the frequency range assigned to the board-level PDN. Define that band from the regulator response, package and die contribution, plane geometry, load edge, and measurement boundary; it is not automatically "DC to hundreds of MHz" for every rail. Model the network, then correlate it with load-step or impedance measurements on representative hardware.
How to Choose and Place Decoupling Capacitors
You hit that target impedance by building a decoupling network — a mix of capacitor values, packages, and chemistries, each covering a different slice of the frequency spectrum. No single capacitor does the whole job, because every capacitor's self-resonant frequency (SRF) marks the point beyond which its parasitic inductance takes over.
The practical hierarchy:
- Bulk capacitors (polymer or tantalum) store charge for slow, low-frequency load changes in the kHz range.
- Mid-frequency MLCCs cover the MHz range, where low ESR and ESL matter most.
- High-frequency MLCCs in small packages sit right against the chip's power pins to suppress fast noise.
Placement is where most PDN designs succeed or fail: every capacitor must sit as close to the load pin as the layout allows, because the loop inductance between the capacitor and the pin sets its effective SRF. That puts real pressure on SMT assembly precision — component registration and solder-joint quality directly determine whether a 0201 decoupling cap performs at its datasheet value or well below it.
| Capacitor type | Strengths | Limitations | Effective frequency range |
|---|---|---|---|
| Ceramic (MLCC) | Low ESR/ESL, high SRF, low cost | Capacitance drops under DC bias; piezoelectric/microphonic effects | Mid–high (~1 MHz–1 GHz) |
| Polymer | Very low ESR, high capacitance density, stable | Humidity-sensitive, higher cost | Mid (~100 kHz–10 MHz) |
| Tantalum | High capacitance density, stable | Higher ESR, reverse-voltage sensitive | Low–mid (~10 kHz–1 MHz) |
| Bulk electrolytic | Large charge reservoir for slow load steps | Bulky, higher ESR/ESL | Low (<100 kHz) |
Optimizing Transient Response for High dI/dt Loads
Modern processors and FPGAs can slam their load current up or down within nanoseconds. That high dI/dt is brutal on a PDN: the decoupling network supplies the first burst of charge, but the voltage regulator module (VRM) has to catch up before the bulk capacitors drain.
So transient response is a two-part problem. The decoupling network handles the fast edge; the VRM's control loop handles the recovery. Evaluate that loop with a Bode plot — check phase margin and gain margin to confirm the regulator stays stable across load conditions rather than oscillating at the edge of instability. Throughout the NPI EVT/DVT/PVT cycle, load-transient behavior gets tested and tuned iteratively, because simulation gets you close but silicon and layout parasitics decide the final number.
PCB Layout for Power Integrity: Return Paths, IR Drop & EMI
Current always flows in a loop, which means the return path matters as much as the forward path. A broken or overlong return path raises loop inductance, which shows up as IR drop and ground bounce — and radiates as EMI, because that loop is now an antenna.
Best practices that consistently pay off:
- Continuous reference planes. Give power and ground dedicated, unbroken plane layers in your multilayer PCB stackup.
- Small loop area. Keep power traces tightly coupled to their return plane; don't let the loop open up.
- Deliberate via stitching. Place enough stitching vias between power and ground planes — especially where high-speed signals change layers — to give return current a low-impedance path.
Skip these and you pay twice: once in rail noise, once in an EMC lab.
Manufacturing High-Power PCBs: Heavy Copper and Low-Void BGA Reflow
Carrying tens or hundreds of amps changes what the fab has to do. Heavy copper PCBs — often 3 oz to 12 oz — demand tighter control of etching and lamination, and the thermal-pad design under power devices (MOSFETs, DrMOS) directly sets their junction temperature and lifespan.

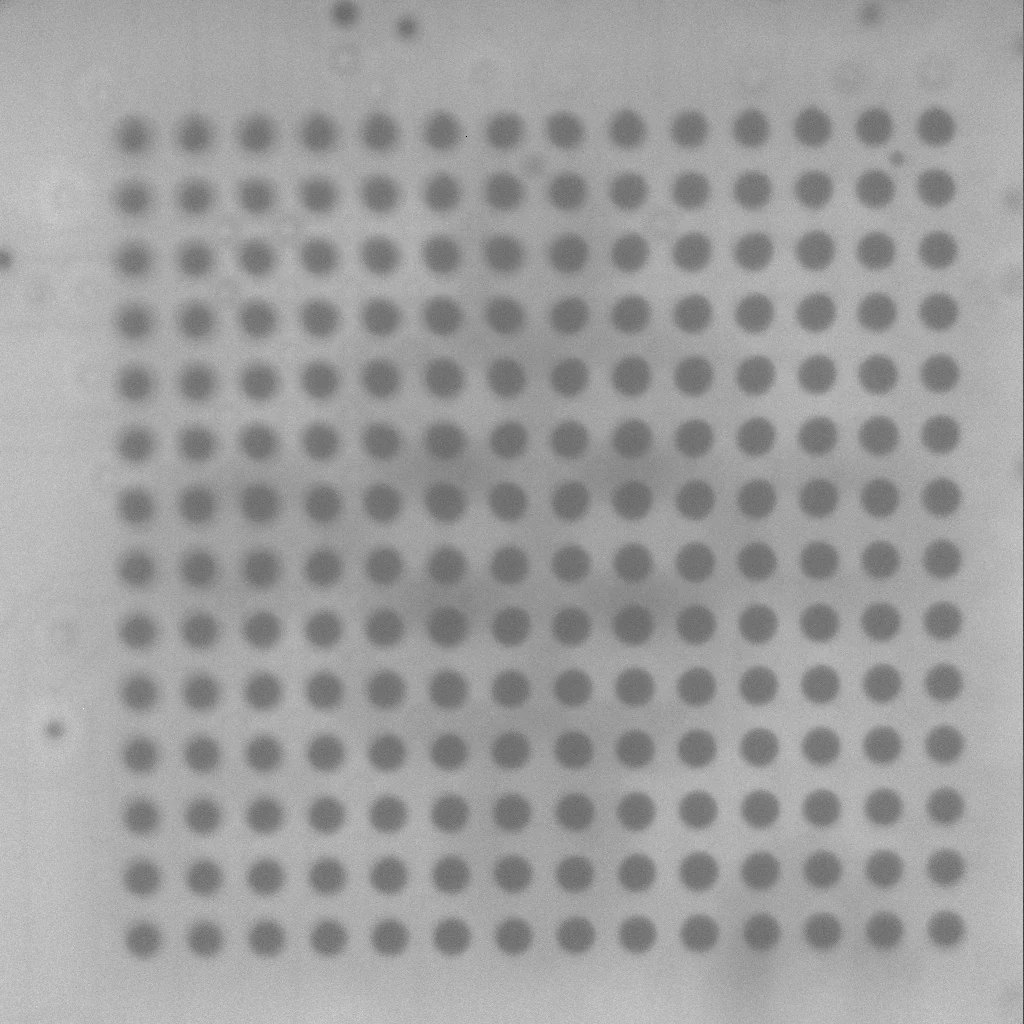

For power ICs in BGA packages, solder voids are the defect that matters most. A void doesn't just weaken the electrical joint — it blocks the heat path from die to board, and a hot BGA is a short-lived BGA. Low-void BGA reflow — optimized solder paste, a tuned reflow profile, and vacuum reflow where needed — keeps void rates to a minimum. On thermal pads under high-current parts, that's not a nice-to-have; it's the difference between a board that holds temperature and one that thermally throttles or fails.
For a HILPCB RFQ, identify the required copper construction, laminate system, package-specific void acceptance, and inspection coverage. Confirm any heavy-copper limit, high-Tg material, vacuum-reflow need, AOI coverage, and X-ray sample plan against the exact stack-up, component geometry, quantity, and acceptance standard rather than treating a headline capability as release evidence.
Testing & Validation: JTAG Boundary Scan, Load Step & Environmental Stress
After design and build, testing is the last line of defense — and on a power board it's where you catch the failures simulation missed.
- Boundary-scan / JTAG. For controllers and FPGAs with JTAG, boundary-scan finds opens and shorts on hidden BGA pins with no physical probe access — a major boost to test coverage on dense boards.
- Load-step testing. Drive real transient current with an electronic load and watch rail overshoot and undershoot on a scope. This is the direct, measured validation of the PDN work above.
- Environmental stress. Temperature cycling and vibration surface latent defects — cracked joints, marginal vias — before the customer does.
Conformal Coating for Harsh-Environment Reliability
For power and cooling hardware living in industrial, automotive, or outdoor settings, the environment is the main long-term threat. Conformal coating — a thin polymer film that follows the contours of every component and trace — blocks moisture, salt spray, mold, and corrosive gases. It's applied after electrical and functional testing (including boundary-scan), so the coating never interferes with test access. On the right board, it's a low-cost step that materially extends service life.
What Should a Power and Cooling PCBA RFQ Include?
- Schematics, BOM with approved alternates, fabrication and assembly data, stack-up, copper requirements, mechanical files, and revision history
- Input and output ranges, continuous and transient currents, ripple limits, load-step waveforms, sequencing, protections, and fault behavior
- Loss estimates, component thermal limits, ambient and airflow conditions, heatsink or cold-plate interfaces, sensors, fans or pumps, and thermal-interface materials
- Solder alloy, thermal-pad and via design, voiding criteria, coating or cleanliness needs, press-fit or high-current connector requirements, and rework limits
- AOI, X-ray, electrical test, programming, load-step, efficiency, thermal, protection, environmental, and burn-in requirements with pass/fail limits
- Prototype and production quantities, traceability, report format, fixture ownership, packaging, change notification, and requalification triggers
Reference Standards and Responsibility Scope
Confirm the current revision, product class, test method, and contractual precedence for the program.
- IPC-2221 — IPC
- IPC-2152 — IPC
- IPC-6012 — IPC
- IPC-A-610 — IPC
- IPC J-STD-001 — IPC
- IPC-7095 — IPC
- IEC 61000-4 series — International Electrotechnical Commission, when applicable
HILPCB can manufacture the released PCB and PCBA and provide the inspection and electrical or functional tests defined in the quotation. The customer retains responsibility for the power architecture, protection strategy, thermal model, cooling hardware, firmware, system safety, EMC, environmental qualification, and final product compliance unless those activities are explicitly contracted and validated.
Frequently Asked Questions
How do you calculate PDN target impedance?
Use Z_target = (V_supply × Ripple_tolerance) / I_transient, where ripple tolerance is a fraction (e.g. 5% = 0.05). A 1.0 V rail with a 5% budget and a 20 A transient step needs about 2.5 mΩ, held from DC up to hundreds of MHz.
What copper weight does a high-current power PCB need?
It depends on the current, allowed temperature rise, and trace geometry, but power paths carrying tens of amps commonly move from standard 1–2 oz copper into heavy copper of 3 oz and above — up to 12 oz for the highest-current designs.
Why do BGA solder voids matter in power PCBs, and how are they reduced?
Voids under a power BGA block the die-to-board heat path and degrade the electrical joint, causing overheating and early failure. Low-void reflow — tuned paste, an optimized thermal profile, and vacuum reflow — keeps void rates low, verified by X-ray.
What tests validate a power PCB's dynamic performance?
Load-step testing (electronic load plus oscilloscope) directly measures rail overshoot and undershoot under transient current. Boundary-scan/JTAG verifies hidden interconnects, and temperature cycling plus vibration confirm reliability under stress.
Conclusion
A dependable power supply or cooling board is the sum of many correct decisions: PDN target impedance defined up front, a decoupling network matched to the load, layout that respects return paths, copper and reflow sized for the current, and testing that proves the board under real transient and environmental stress. Handling those steps in one place removes the gaps where problems hide between design, fabrication, and assembly.
HILPCB brings PDN-aware design support, heavy-copper and high-Tg fabrication, low-void BGA reflow, precision SMT, and full EVT/DVT/PVT validation together in one-stop turnkey PCBA. If you're building high-power or thermally demanding hardware, share your stackup and current requirements and our engineers will review the design for manufacturability before the first board is built.
