The mechanical keyboard community thrives on personalization, and nothing defines a keyboard's character more fundamentally than its circuit board. A Custom Keyboard Circuit Board enables unique layouts, specialized features, and branded aesthetics that off-the-shelf PCBs simply cannot provide. Whether you're a keyboard designer launching a group buy, a brand developing signature products, or an enthusiast creating a one-of-a-kind build, custom PCB development opens unlimited possibilities.
This guide explores the custom keyboard PCB development process, from initial concept through production, highlighting the options and decisions that shape your final product.
Menu Navigation
- Why Choose Custom Keyboard PCB Development
- The Custom PCB Design Process
- Customization Options and Features
- Production and Manufacturing Considerations
- Working with a PCB Manufacturing Partner
Why Choose Custom Keyboard PCB Development
While numerous pre-designed keyboard PCBs exist, custom development offers advantages that generic options cannot match. Understanding these benefits helps justify the investment in custom design for serious keyboard projects.
1. Unique Layout Requirements
Many keyboard concepts require layouts that don't exist in standard PCBs. Non-standard form factors include ortholinear, ergonomic splits, and custom macro pads. Regional layouts accommodate specific ISO variants and language-specific key requirements. Custom key arrangements enable unique modifier positions and rotated key placements. Asymmetric designs support Alice-style and arisu layouts that define the enthusiast market.
2. Feature Integration
Custom PCBs incorporate exactly the features your product needs. Specific wireless chipsets can be chosen for optimal range, latency, or power efficiency. Display integration enables OLED, LCD, or e-ink placement matched to your case design. Encoder positioning optimizes knob locations for ergonomic interaction. Expansion ports provide USB pass-through or audio jack capability where needed.
3. Brand Identity
Custom PCBs strengthen brand recognition. Logo placement in visible locations reinforces brand awareness. Color coordination matches PCB to overall product aesthetics. Signature features create distinctive design elements across product lines that customers recognize and seek out.
Our Mechanical Keyboard PCB customization services support brands in creating distinctive, recognizable products that stand apart from generic offerings.
The Custom PCB Design Process
Creating a Custom Keyboard Circuit Board follows a structured process that transforms ideas into manufacturable designs. Each phase builds on the previous, ensuring the final product meets all requirements.
Phase 1: Requirements Definition
Functional requirements establish target layout and key count, switch type selection (MX, Choc, optical), hot-swap versus soldered configuration, lighting requirements, and wireless versus wired capability. Mechanical requirements define case compatibility dimensions, mounting style preferences, thickness constraints, and flex cut requirements. Electrical requirements specify controller selection, USB specification, ESD protection level, and power source requirements.
Phase 2: Schematic Design
The schematic captures electrical connectivity including key matrix architecture with diode protection, controller pinout assignment, power regulation circuitry, USB interface with ESD protection, LED driver implementation, and peripheral connections for encoders and displays.

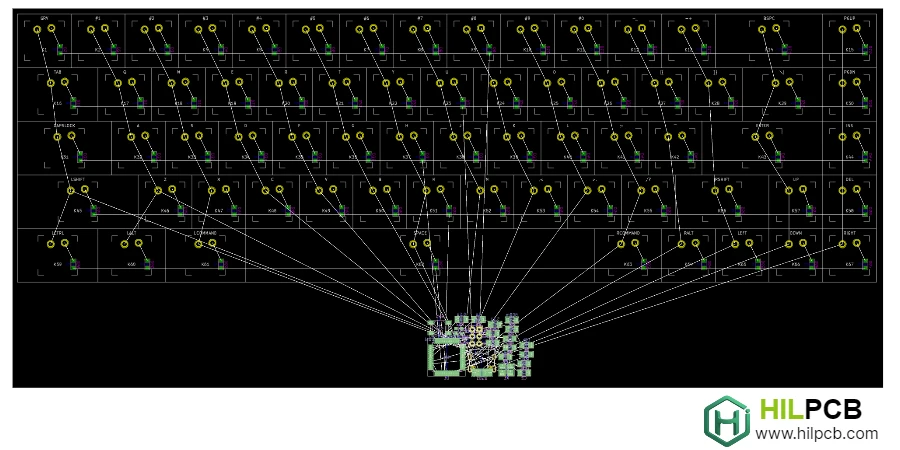

Phase 3: PCB Layout
Layout translates the schematic to physical board design. Critical elements include switch positions requiring exact plate alignment for typing feel and aesthetics, USB-C placement matching case cutouts for user experience, controller location balancing heat and space for reliability, and LED positions ensuring consistent lighting quality.
Signal integrity considerations include USB differential pair routing with impedance control, clean return paths for high-frequency signals, proper crystal oscillator placement, and High-Density PCB for Keyboards techniques when space is limited.
Phase 4: Design Review
Before fabrication, comprehensive review catches issues. Design Rule Check (DRC) verifies manufacturing compliance. Electrical Rule Check (ERC) confirms circuit correctness. Mechanical fit verification with case CAD ensures compatibility. BOM review confirms component availability before commitment.
Customization Options and Features
Custom Keyboard Circuit Board development enables extensive personalization beyond basic functionality. These options differentiate your product in a competitive market.
PCB Aesthetics
Soldermask colors range from standard options (green, blue, red, black, white, yellow) to premium finishes (matte black, purple, orange, pink) and specialty options (clear solder mask for exposed copper aesthetics).
Silkscreen design enables logo and branding placement, decorative patterns and artwork, key position indicators, and build information with versioning.
Copper exposure techniques include exposed copper traces for decorative effect, gold-plated exposed copper using ENIG over exposed areas, and artistic trace routing for visual appeal.
Electrical Customization
Lighting options include RGB Keyboard PCB with addressable LEDs, single-color backlight for professional aesthetics, RGB Backlit Keyboard PCB with underglow zones, and status LEDs with custom positioning.
Connectivity features encompass Wireless Keyboard PCB with Bluetooth and 2.4GHz capability, USB-C with reversible orientation, split keyboard interconnects, and audio output for typing sounds.
Controller Options
Controller selection depends on project requirements. ATmega32U4 offers mature QMK support for proven designs. STM32F072 provides more GPIO and native USB for feature-rich boards. RP2040 delivers dual-core processing at low cost for modern projects. nRF52840 integrates BLE for wireless builds requiring battery efficiency.
Mechanical Customization
Flex and feel customization includes strategic flex cuts for gasket mount typing feel, thickness variations for different mounting styles, and Flexible PCB for Keyboards sections for articulating designs.
Layout flexibility enables multi-layout support with ANSI/ISO on single PCB, configurable bottom row options, and multiple split spacebar configurations to serve diverse user preferences.

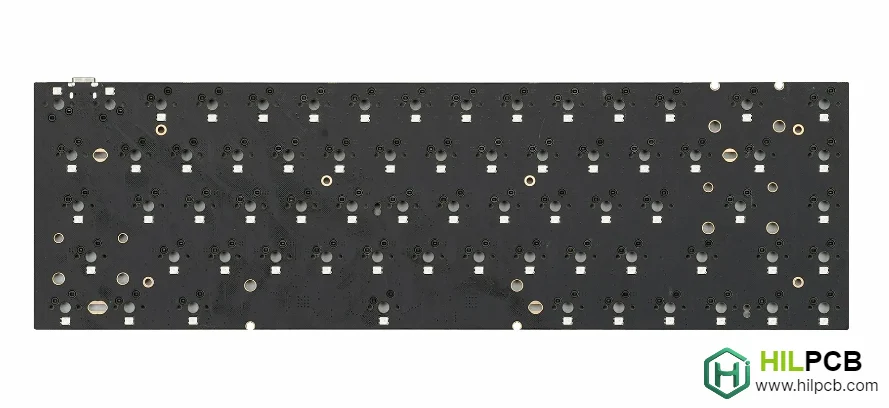

Production and Manufacturing Considerations
Transitioning from custom design to manufactured product requires careful planning to ensure quality and cost effectiveness across production volumes.
1. Prototyping Strategy
Initial prototypes (5-10 units) focus on electrical verification, testing all features and functions, and identifying design issues before tooling investment. Engineering validation (20-50 units) enables extended testing with actual users, firmware development and refinement, case fit verification, and Small Batch Assembly for controlled testing.
2. Design for Manufacturing (DFM)
DFM optimization reduces cost and improves quality. Standard component packages reduce placement costs. Adequate component spacing enables automated assembly. Proper fiducial and tooling hole placement ensures accuracy. Panel optimization improves material efficiency.
3. Volume Production Planning
Production volume determines assembly approach and lead time. 1-100 units use small batch assembly with potential manual steps in 2-3 weeks. 100-1000 units employ full automation with dedicated setup in 3-4 weeks. 1000+ units use Large Volume Assembly with 4-6 week lead time.
Cost Optimization
Cost reduction strategies include component alternatives without quality compromise, panel utilization improvements, and Mechanical Keyboard PCB Manufacturing process efficiency gains.
Working with a PCB Manufacturing Partner
Successful Custom Keyboard Circuit Board projects require close collaboration between designers and manufacturers. Choosing the right partner and establishing effective workflows ensures project success.
Partner Selection Criteria
Technical capabilities should include experience with keyboard PCB specifics, hot-swap pad reinforcement expertise, USB-C connector handling, and RGB LED assembly experience. Quality systems require documented processes, appropriate testing capabilities, and traceability for components and processes. Communication and support should provide responsive engineering assistance, clear DFM feedback, and flexible revision handling.
Project Workflow
Design submission includes complete Gerber files with all layers, drill files in Excellon format, Bill of Materials with approved alternatives, and assembly drawings with pick-and-place data. Review and feedback provides manufacturer DFM review identifying potential issues, cost optimization suggestions, and lead time confirmation. Production monitoring includes first article inspection approval, in-process quality updates, and shipping coordination.
Common Pitfalls to Avoid
Design issues frequently include insufficient hot-swap pad reinforcement, USB-C footprint mismatch with specific connectors, incorrect stabilizer hole positions, and missing ESD protection. Communication gaps lead to unclear specifications causing assumptions, component substitutions without approval, and schedule misalignment with case/plate production.
For PCB for Mechanical Keyboards projects, our team provides comprehensive support from initial consultation through production. We understand the unique requirements of keyboard PCBs and work closely with designers to ensure successful outcomes.
Whether you're creating your first Custom Keyboard Circuit Board or expanding an established product line, our Custom PCB for Keyboards services deliver the quality, flexibility, and expertise your project demands. Contact us to discuss your custom keyboard PCB vision and discover how we can bring it to life.
Common Questions
What should be finalized before sending a custom keyboard PCB to manufacturing?
Matrix layout, connector footprints, stabilizer locations, hot-swap strategy, case constraints, and BOM assumptions should be locked together. Most delays come from mechanical mismatches and unclear revision control rather than routing itself.
Why is DFM especially important for custom keyboard circuit boards?
Small mechanical or assembly errors can break fit, feel, or compatibility even when the circuit works electrically. Early DFM review catches pad reinforcement, USB-C fit, panelization, and assembly access issues before tooling or case production begins.
How should a custom keyboard project move from prototype to volume?
Use prototypes to validate fit, firmware behavior, and assembly flow, then freeze approved revisions before volume sourcing. Volume planning works best when the PCB, plate, case, and assembly documents stay synchronized.
