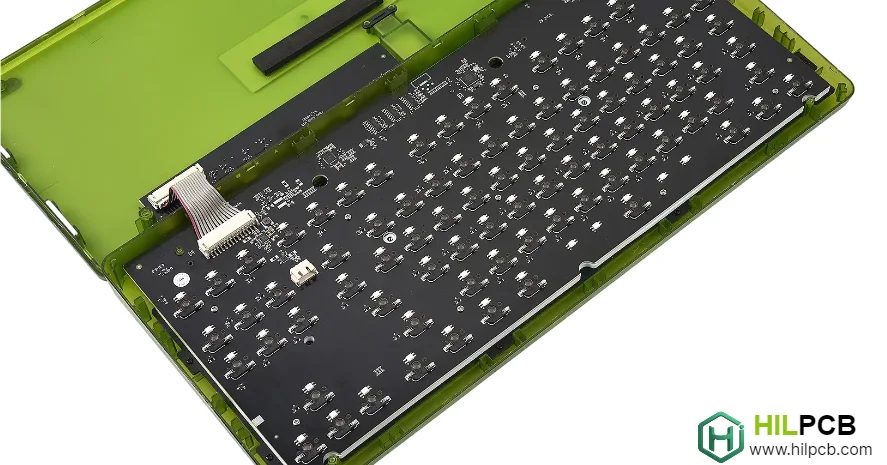

As mechanical keyboards evolve toward smaller form factors with increasing feature sets, High-Density PCB for Keyboards technology becomes essential. HDI (High-Density Interconnect) techniques enable routing density impossible with standard PCB construction, allowing designers to pack wireless connectivity, RGB lighting, displays, and sophisticated controllers into compact keyboard footprints.
This technical guide explores HDI applications in keyboard design, covering when high-density construction is necessary, available technologies, and practical implementation considerations.
Menu Navigation
- What is HDI? Understanding High-Density Interconnect for Keyboards
- When Your Keyboard Design Needs HDI Technology
- Microvias, Build-Up Layers, and Via-in-Pad Techniques
- HDI Layout Rules: Routing, Reliability, and Design Documentation
- HDI Cost Analysis: When High-Density Construction Makes Sense
What is HDI? Understanding High-Density Interconnect for Keyboards
High-Density Interconnect technology encompasses multiple techniques that increase routing density beyond standard PCB capabilities. Understanding these technologies helps designers select appropriate solutions.
1. What Defines HDI
HDI PCBs are characterized by specific features. Microvias smaller than 150μm diameter enable escape routing from fine-pitch components. Higher wiring density with narrower traces and spaces than standard construction. Multiple via types including blind, buried, and stacked microvias. Sequential lamination processes create complex layer structures.
2. HDI vs Standard PCB Comparison
Understanding differences clarifies when HDI is necessary:
- Via Size: Standard 0.3mm vs HDI 0.1mm or smaller enables denser routing.
- Trace/Space: Standard 0.15/0.15mm vs HDI 0.075/0.075mm doubles routing density.
- Layer Efficiency: Microvias don't penetrate entire stack, preserving routing channels.
- Component Support: HDI enables fine-pitch BGAs and CSPs difficult with standard vias.
3. Relevance to Keyboard Design
Most keyboard applications don't require HDI, but specific situations benefit significantly. Ultra-compact designs with wireless modules and RGB in minimal space. Keyboards with integrated processing or display capabilities. Premium products where size constraints drive technology selection. Multi-Layer PCB for Keyboards represents intermediate option before HDI becomes necessary.
When Your Keyboard Design Needs HDI Technology
Certain keyboard design challenges specifically benefit from HDI technology when standard approaches prove insufficient.
Ultra-Compact Form Factors
Extremely small keyboards face routing challenges standard PCBs cannot address. 40% and smaller layouts with full wireless capability. Macro pads with dense feature integration. Travel keyboards prioritizing minimum size. Competition for routing space between switches, LEDs, and electronics.
Advanced Wireless Integration
Sophisticated wireless implementations may require HDI:
- Multi-Protocol Support: Bluetooth plus 2.4GHz in compact space.
- Antenna Complexity: Multiple antennas with proper isolation.
- Battery Integration: Maximum battery capacity with minimum PCB area.
- Wireless Keyboard PCB Evolution: Demanding designs push toward HDI territory.
Integrated Display Systems
Keyboards with built-in displays face particular density challenges. Display driver ICs with fine-pitch interfaces require microvia escape routing. Connector placement competes with keyboard matrix routing. Touch controller integration adds routing complexity. Display ribbon cable area reduces available PCB space.
Premium Product Requirements
Flagship products may justify HDI for maximum feature integration. Every possible feature in smallest possible footprint. Industrial design goals demanding internal miniaturization. Brand differentiation through technical capability. Custom PCB for Keyboards development can evaluate HDI necessity for ambitious projects.
Microvias, Build-Up Layers, and Via-in-Pad Techniques
Multiple HDI techniques offer different capabilities for keyboard applications. Selecting appropriate technology balances capability against cost.
1. Microvia Types
Different microvia constructions serve various needs:
- Laser-Drilled Microvias: Standard HDI vias, typically 0.1mm diameter.
- Blind Vias: Connect outer layer to adjacent inner layer only.
- Buried Vias: Connect inner layers without reaching outer surfaces.
- Stacked Microvias: Multiple microvias aligned vertically for deep connections.
2. Build-Up Structures
HDI layers added to conventional core. 1+N+1 structure adds single HDI layer each side of N-layer core. 2+N+2 structure provides additional routing density. Any-layer HDI enables via connections between any layers. Keyboard applications rarely require beyond 1+N+1 construction.
3. Via-in-Pad Technology
Placing vias within component pads increases density:
- Space Savings: Components mount directly over vias.
- Thermal Benefits: Vias provide heat transfer path.
- Fill Requirements: Vias must be filled and planarized for reliable soldering.
- Cost Impact: Additional processing increases manufacturing cost.
Alternative High-Density Approaches
Before committing to HDI, consider alternatives. Fine-pitch standard construction with 0.1/0.1mm trace/space. Additional Multi-Layer PCB for Keyboards layers may provide needed capacity. Optimized component selection using smaller packages. Layout optimization extracting maximum from standard technology.
HDI Layout Rules: Routing, Reliability, and Design Documentation
Designing for HDI manufacturing requires attention to specific guidelines ensuring manufacturable, reliable results.
Component Selection
Component choices affect HDI requirements. Select packages that don't require HDI when possible. Fine-pitch components (< 0.5mm) may require microvia escape routing. QFN packages benefit from via-in-pad for thermal and density reasons. Balance newest, smallest components against manufacturing complexity.
Routing Strategies
HDI enables different routing approaches:
- Escape Routing: Plan microvia patterns for fine-pitch IC breakout.
- Layer Utilization: Use blind vias to preserve inner layer routing.
- Via Stacking: Carefully plan stacked via locations for reliability.
- Impedance Control: HDI stack-ups require careful impedance calculation.
Reliability Considerations
HDI structures require reliability attention. Microvia reliability depends on proper aspect ratio and plating. Stacked vias need careful design to prevent failure. Thermal cycling affects HDI structures differently than standard vias. IPC Class requirements may limit HDI options for some applications.
Design Rule Documentation
Clear specification ensures manufacturing success:
- Stack-Up Definition: Specify layer thicknesses, materials, and via types.
- Via Requirements: Document via sizes, types, and locations.
- Trace/Space Rules: Define minimum widths and clearances.
- Testing Requirements: Specify reliability testing needed for qualification.
HDI Cost Analysis: When High-Density Construction Makes Sense
HDI manufacturing requires specialized capabilities with associated cost implications affecting project viability.
1. Capability Requirements
HDI demands specific manufacturing equipment. Laser drilling equipment for microvia formation. Sequential lamination capability for build-up structures. Fill and planarization for via-in-pad applications. Advanced inspection for microvia quality verification.
2. Cost Impact
HDI significantly increases PCB cost:
- Material Cost: Specialized materials for build-up layers.
- Process Complexity: Multiple lamination and drilling cycles.
- Yield Considerations: Higher defect risk with advanced features.
- Typical Premium: 2-4x cost increase versus standard multi-layer.
3. Lead Time Implications
Advanced construction affects schedules. Sequential processes add manufacturing time. Specialized materials may have longer procurement cycles. Prototype iterations become more expensive and slower. Planning must account for HDI schedule impact.
When to Use HDI
HDI investment makes sense in specific situations. When design simply cannot be accomplished with standard technology. Premium products where cost is secondary to capability. High-volume production amortizing NRE across many units. When HDI enables significant product differentiation.
When to Avoid HDI
Many keyboard projects should avoid HDI complexity. Standard 4-layer sufficient for most wireless keyboards. Budget constraints make HDI prohibitive for cost-sensitive products. Standard density adequate for target feature set. RGB Keyboard PCB implementations rarely require HDI.
Our HDI PCB capabilities support keyboard projects requiring high-density construction, while our engineering team helps evaluate whether HDI is truly necessary for your specific requirements. Contact us to discuss your compact keyboard design challenges and discover the most appropriate technology solution.
Common Questions
When does a keyboard project actually need HDI construction?
HDI is worth considering when routing density, package pitch, or compact wireless integration cannot be solved cleanly with standard stackups. If a design fits comfortably on conventional 4-layer construction, HDI often adds cost without meaningful benefit.
What is the main trade-off of using HDI in keyboard PCBs?
The main trade-off is higher cost and process complexity in exchange for more routing freedom and tighter integration. Designers should confirm that the added density solves a real product constraint rather than just making the board more advanced on paper.
How should HDI keyboard designs be reviewed before release?
They should be checked for manufacturability, reliability limits, documentation quality, and schedule impact together. HDI decisions are safest when engineering, fabrication, and sourcing assumptions all align before prototype release.
