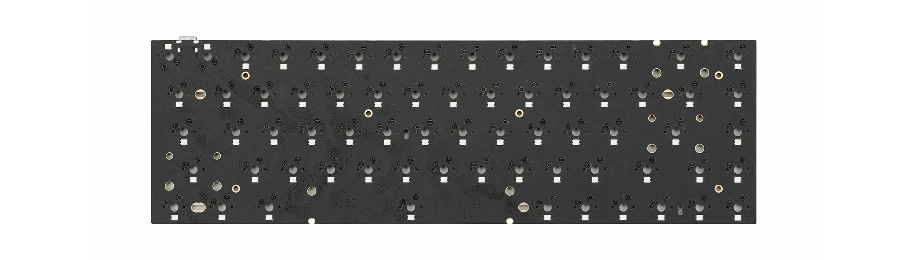

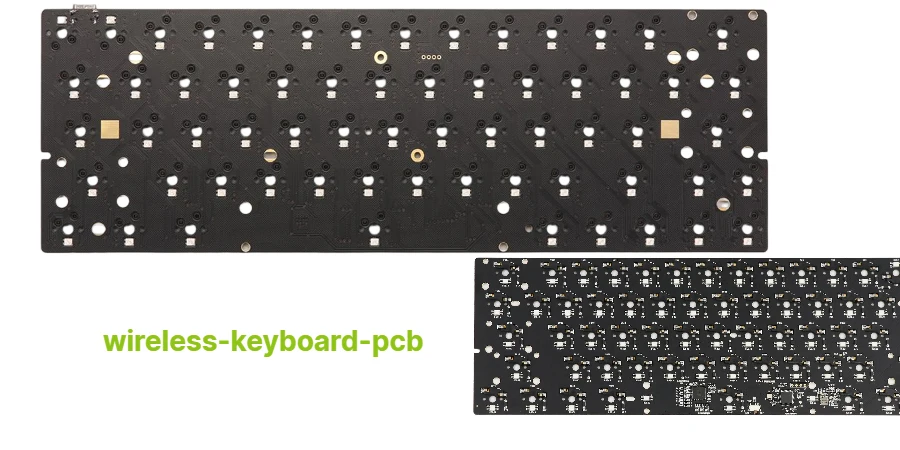

Wireless mechanical keyboards have evolved from compromise solutions to preferred choices for both productivity and gaming applications. Implementing a Wireless Keyboard PCB successfully requires expertise spanning RF engineering, power management, and firmware optimization. The PCB must deliver reliable connectivity with latency matching wired performance while maximizing battery life—a challenging combination that demands careful design attention.
This guide explores the technical considerations for creating wireless keyboard PCBs that meet professional user expectations for connectivity, responsiveness, and battery longevity.
Menu Navigation
- Bluetooth vs 2.4GHz: Choosing the Right Wireless Protocol
- Antenna Design and RF Layout for Wireless Keyboards
- Extending Battery Life: Power Management Strategies
- Li-Po Battery Integration and USB-C Charging Design
- Wireless Keyboard PCB Assembly and FCC/CE Certification
Bluetooth vs 2.4GHz: Choosing the Right Wireless Protocol
Choosing the right wireless technology establishes the foundation for keyboard connectivity performance. Different protocols offer distinct advantages depending on application requirements.
1. Bluetooth Implementation
Bluetooth provides universal device compatibility:
- BLE (Bluetooth Low Energy): Modern standard balancing connectivity with power efficiency.
- Multi-Device Pairing: Connect to multiple hosts with easy switching.
- No Dongle Required: Works with any Bluetooth-enabled device directly.
- Latency Considerations: BLE latency typically 7-15ms, acceptable for typing but may concern competitive gamers.
2. 2.4GHz Proprietary Protocols
Custom 2.4GHz solutions optimize for raw performance. Lower latency achievable than Bluetooth—down to 1ms with optimized protocols. Dedicated dongle provides consistent connection without host Bluetooth dependency. Higher power consumption than BLE but superior responsiveness. Preferred for gaming keyboards prioritizing input speed.
3. Dual-Mode Implementation
Premium keyboards offer both connectivity options:
- User Flexibility: Choose optimal protocol for each use case.
- Design Complexity: Requires both Bluetooth and 2.4GHz RF sections.
- Antenna Considerations: May need multiple antennas or broadband design.
- Multi-Layer PCB for Keyboards Benefits: Layer separation improves dual-mode RF isolation.
Protocol Selection Guidance
Application requirements guide technology choice. Office keyboards benefit from Bluetooth multi-device convenience. Gaming keyboards prioritize 2.4GHz latency performance. Premium products offer dual-mode flexibility. Battery life priorities may favor BLE-only implementation.
Antenna Design and RF Layout for Wireless Keyboards
Wireless keyboard RF design directly determines connectivity range, reliability, and interference immunity.
Module vs Integrated Design
Wireless implementation approaches offer different trade-offs. Pre-certified modules simplify development and certification. Integrated designs using discrete chips enable optimization but require RF expertise. Hybrid approaches use modules with custom antenna implementations. Most keyboard projects benefit from module-based designs reducing risk and time-to-market.
Antenna Design Considerations
Antenna implementation significantly impacts wireless performance:
- PCB Trace Antennas: Cost-effective solution requiring careful tuning and matching.
- Chip Antennas: Compact, consistent performance with minimal tuning required.
- External Antennas: Maximum performance for premium designs with space flexibility.
- Placement Optimization: Position away from hands, batteries, and metal components.
Ground Plane Design
Antenna reference plane affects the radiation pattern. Proper ground plane dimensions optimize antenna efficiency. Keep-out zones prevent component interference with RF fields. Ground plane cutouts may be required for specific antenna types. High-Density PCB for Keyboards designs require careful RF planning.
Shielding and Isolation
RF sections benefit from isolation techniques:
- Physical Separation: Distance between RF and noisy digital circuits.
- Shield Cans: Metal shields contain emissions and block interference.
- Ground Stitching: Via fences create isolation barriers.
- Power Filtering: Prevent noise coupling through power distribution.
Extending Battery Life: Power Management Strategies
Battery life defines the wireless keyboard user experience. Sophisticated power management extends operation between charges while maintaining instant responsiveness when you need it.
1. Power State Management
Intelligent power modes balance performance and consumption. Active mode maintains full responsiveness during typing. Idle mode reduces power while monitoring for activity. Sleep mode minimizes consumption during extended inactivity. Deep sleep preserves battery during storage with longer wake time.
2. Wake-Up Mechanisms
Quick wake response provides seamless user experience:
- Key Press Detection: Any key activity immediately wakes the keyboard.
- Motion Detection: Accelerometer triggers wake on movement.
- Bluetooth Connection Events: Host connection requests wake sleeping keyboards.
- Wake Latency: Design determines time from wake trigger to first keystroke registration.
3. Power Rail Design
Clean, efficient power distribution maximizes battery life. LDO regulators provide low-noise supply for RF and analog circuits. Buck converters efficiently step down battery voltage for main supply. Power sequencing ensures proper startup and shutdown behavior. Custom PCB for Keyboards wireless designs optimize power architecture for target battery life.
Consumption Optimization
Every milliamp affects battery runtime. Efficient MCU selection with low-power modes. LED brightness limiting or RGB disable options during battery operation. Scan rate reduction during idle periods. Firmware optimization eliminates unnecessary processing.
Li-Po Battery Integration and USB-C Charging Design
Battery system design affects both user experience and safety. Proper implementation ensures reliable operation throughout the battery life cycle.
Battery Selection
Lithium polymer batteries dominate wireless keyboard applications. Capacity selection balances runtime against weight and size. Cell configuration typically single-cell 3.7V nominal. Quality cells from reputable suppliers ensure safety and longevity. Battery shape customization fits available enclosure space.
Charging System Design
USB-C charging has become the standard expectation:
- Charging IC Selection: Integrated solutions simplify design with proper safety features.
- Charge Rate: Balance charging speed against battery longevity and heat generation.
- Temperature Monitoring: Protect battery from charging outside safe temperature range.
- Power Path Management: Enable keyboard use while charging without battery stress.
Safety Considerations
Battery safety requires design attention. Over-voltage and under-voltage protection prevents cell damage. Over-current protection handles fault conditions. Temperature monitoring suspends charging if overheating occurs. Proper PCB layout separates battery from heat sources.
User Experience Features
Battery system features enhance usability:
- Battery Level Indication: LED or software display shows remaining charge.
- Low Battery Warning: Alert users before complete discharge.
- Fast Charging Support: Reduce charging time for user convenience.
- Pass-Through Operation: Full functionality while connected to USB power.

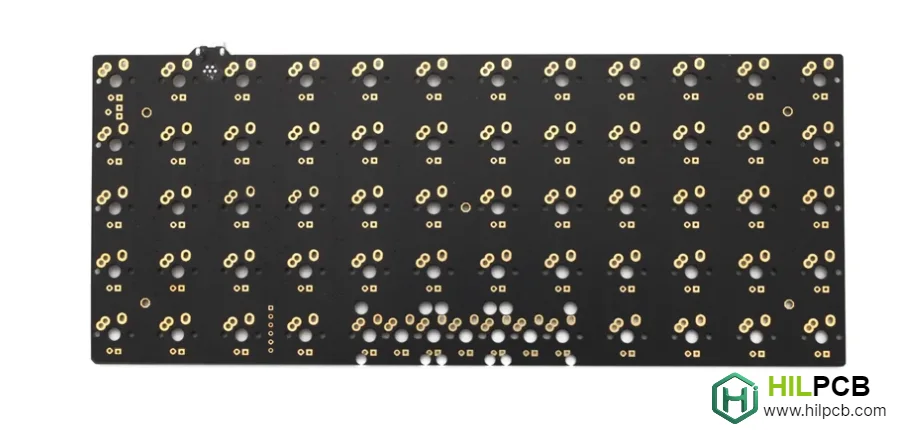

Wireless Keyboard PCB Assembly and FCC/CE Certification
Wireless Keyboard PCB manufacturing requires attention to RF-specific processes and validation.
1. Assembly Requirements
RF components demand careful handling:
- Module Placement: Precise positioning affects antenna performance.
- Reflow Profiles: RF components may have specific thermal requirements.
- ESD Protection: Strict ESD controls prevent RF component damage.
- Keyboard PCB Assembly Expertise: Wireless-specific handling procedures.
2. Testing and Validation
Wireless functionality requires specialized testing. RF performance testing validates range and signal strength. Pairing functionality confirms reliable connection establishment. Latency measurement verifies performance meets specifications. Battery life testing validates power management effectiveness.
3. Certification Requirements
Wireless products require regulatory compliance:
- FCC (US): Radio frequency certification for 2.4GHz and Bluetooth.
- CE (EU): European conformity marking including RF requirements.
- Module Pre-Certification: Using certified modules simplifies product certification.
- Testing Documentation: Maintain records for compliance verification.
Production Scaling
Wireless keyboard production scales efficiently with proper planning. Small Batch Assembly validates wireless performance before volume commitment. Large Volume Assembly maintains RF consistency across production. Turnkey Assembly provides complete wireless keyboard manufacturing including RF testing.
Whether implementing Bluetooth for universal compatibility or 2.4GHz for gaming performance, our Wireless Keyboard PCB expertise delivers connectivity that meets professional user expectations. Contact us to discuss your wireless keyboard project requirements.
Common Questions
What design blocks matter most on a wireless keyboard PCB?
The critical blocks are the wireless radio path, keyboard matrix controller, battery and charging circuit, power rails, wake-up logic, and the USB interface used for charging or wired mode. Those subsystems have to be designed together because RF performance, latency, and battery life all interact.
How do engineers balance battery life with fast wake-up and low typing latency?
They usually combine low-power MCU states, efficient regulators, controlled scan behavior, and carefully tuned wake triggers from keypress, motion, or connection events. The goal is to cut idle consumption without making the first keystroke feel delayed or unreliable.
What validation and certification work should happen before volume production?
Teams should validate RF range, pairing stability, latency, charging safety, and battery runtime, then confirm the product's certification path such as FCC or CE. Using pre-certified modules can simplify compliance, but assembly quality and production consistency still need to be proven before scaling.
