In-Circuit Testing (ICT) for PCBA: Coverage and Fixture Design

How PCBA in-circuit testing works: bed-of-nails fixtures, component checks, test accessibility, coverage limits, flying probes, boundary scan and functional test handoff.

In-circuit testing (ICT) is an electrical test method for populated PCB assemblies. A fixture probes accessible nets to measure component and interconnection characteristics; bare-board electrical test, boundary scan, and flying-probe assembly tests are separate or complementary methods.

Core ICT Testing Technologies and Measurement Capabilities

ICT can detect many assembly faults and component-value errors when nets are accessible and the test program is well designed. It does not directly prove all component placements, hidden solder joints, firmware behavior or overall product function.

Advanced ICT Testing Technologies:

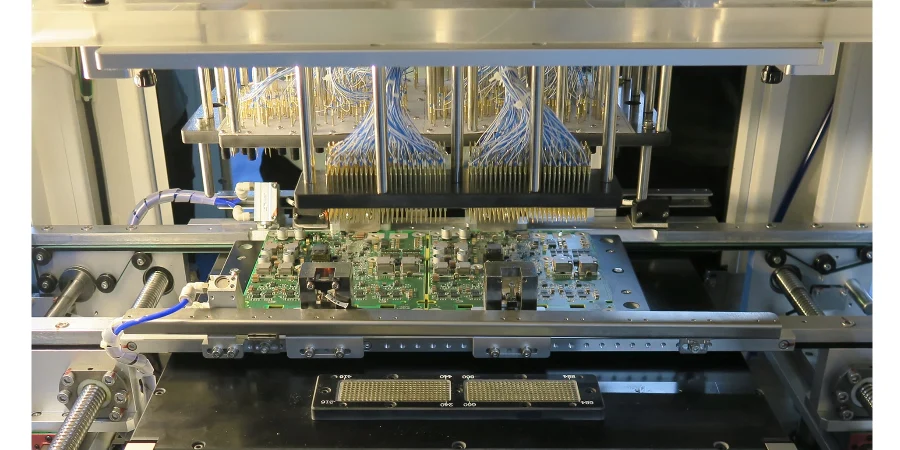

  • Bed-of-Nails Testing: High-throughput fixture-based approach utilizing custom probe assemblies for simultaneous multi-point access
  • Accuracy: Resistance and capacitance measurement uncertainty is tester-, range-, fixture-, and DUT-dependent; quote calibrated performance for the configured ranges rather than an unqualified ±0.5% or ±1%.
  • Flying-probe assembly testing: Useful for prototypes and lower-volume builds without dedicated fixtures; test coverage and probe accessibility still need review.
  • Boundary scan: IEEE 1149.1 may test supported digital interconnects through compliant devices; it cannot replace analog performance, SerDes eye diagrams or complete board functional testing.
  • Guard driving: Drive selected surrounding nodes to reduce parallel-path effects during component measurements. Feasibility and residual error depend on circuit topology, drive limits and fixture access.
  • Kelvin measurements: Four-wire sensing reduces lead and contact resistance errors when the fixture and DUT support suitable force/sense contacts.
  • Test limits: Set guard bands from component tolerance, instrument uncertainty and manufacturing variability; adaptive limits must not silently override approved acceptance criteria.
  • High-speed channels: ICT continuity checks do not measure SerDes eye opening, BER or channel jitter; these require appropriate high-speed functional or signal-integrity tests.
  • Component models: Use the tester's supported component models and verify pin mapping, values, limits and safe stimulus for the actual BOM.

An ICT coverage report should identify the fault model, tested components/nets, access restrictions, exclusions and diagnostic limits. A percentage is meaningful only with a defined denominator; test duration and fixture cost should be compared at that same coverage.

ICT Testing Implementation Strategies and Methodology Selection

Effective ICT testing program development requires strategic methodology selection based on production volume, board complexity, and quality specifications to maximize fault detection while maintaining cost-effectiveness and manufacturing throughput.

Production Volume and Methodology Matching: High-volume manufacturing environments benefit from bed-of-nails ICT testing systems providing rapid test execution with excellent repeatability through custom fixture assemblies. These systems excel in standardized production scenarios where consistent board configurations enable fixture optimization and automated handling integration. Low-volume or changing designs may benefit from flying-probe assembly testing without a dedicated bed-of-nails fixture. Probe approach angles, target dimensions, component height, support and safe contact forces still restrict access; exposed copper is not automatically a usable test point.

Complex Assembly Testing Approaches: HDI PCB assemblies demand specialized ICT testing strategies addressing high component density and limited test point accessibility. Hybrid testing methodologies combine bed-of-nails systems for analog circuits with boundary scan testing for digital sections, maximizing test coverage while managing complexity. On multilayer PCB assemblies, accessible endpoints can expose some connectivity faults. ICT does not locate or inspect every internal structure; bare-board tests, microsections, assembly inspection and functional tests cover different risks.

Test Coverage Optimization: Effective ICT testing programs balance comprehensive fault detection against execution time constraints through strategic test point placement and measurement prioritization. Critical component verification focuses on high-failure-rate parts and expensive components, while interconnection testing emphasizes power and ground integrity alongside signal path continuity. Statistical analysis of historical defect data guides test coverage decisions, ensuring resources focus on areas with highest quality impact while maintaining cost-effectiveness.

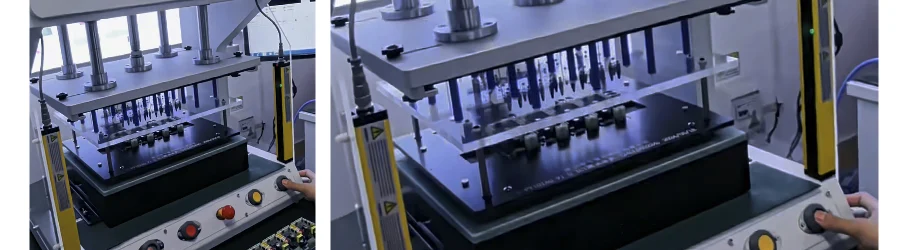

ICT Testing Technology

Manufacturing Process Integration and Quality Control Systems

ICT testing integration within comprehensive quality management systems enables statistical process control, defect trend analysis, and continuous improvement initiatives that enhance manufacturing efficiency while maintaining consistent product quality standards.

Key ICT Testing Control Elements:

  • Fixture verification: Verify fixture contacts and references at a documented interval determined by risk, equipment and calibration policy rather than assuming every fixture requires the same daily calibration.
  • Environment: Use the tester and component specifications to set temperature/humidity limits, settling time and ESD controls; no universal ±2°C factory band applies.
  • Program validation: Use characterized reference assemblies and controlled fault insertion where appropriate to check limits and diagnostic behavior. A known-good board alone does not demonstrate defect detection.
  • Process monitoring: Track measurement trends, fixture contact failures and defect categories separately; investigate drift before changing approved limits.
  • Correlation: Compare ICT findings with downstream functional and inspection results, including escapes and false failures.
  • Records: Link program revision, fixture identity, calibration status and unit/lot results; control retests and repairs.
  • Maintenance: Set cleaning, probe replacement, fixture verification and equipment calibration intervals from the actual process.
  • File review: A Gerber viewer can help inspect test-pad geometry. Complete DFT review also needs the netlist, BOM, assembly heights, probe rules and electrical test specification.

Test Program Development and Optimization Techniques

Automated Test Generation and Development Tools

Modern ICT testing platforms provide sophisticated development environments enabling rapid test program creation through automated analysis of CAD data and component libraries. They can generate initial test sequences from supported CAD/netlist and BOM data. Engineers must still check access, safe power/stimulus, parallel paths, component models, test limits and expected coverage before accepting the program. Advanced development tools incorporate simulation capabilities allowing validation of test programs before implementation, identifying potential issues and optimizing measurement sequences for maximum efficiency.

Measurement Optimization and Parametric Testing

Effective ICT testing programs employ intelligent measurement strategies that adapt to component characteristics and circuit topology. Parametric testing focuses on component value verification within specified tolerances while detecting subtle variations indicating assembly problems or component quality issues. Advanced algorithms optimize measurement sequences, minimize switching overhead, and employ parallel testing techniques where possible, reducing overall test execution time while maintaining measurement accuracy and fault detection capability.

Debug and Diagnostic Capabilities

Comprehensive ICT testing systems provide detailed diagnostic information enabling rapid fault isolation and repair guidance. When defects are detected, advanced systems offer component-level diagnostics, suggest probable causes, and recommend corrective actions based on failure analysis databases. This diagnostic capability proves particularly valuable for SMT assembly operations where rapid defect resolution maintains production flow and minimizes rework costs.

Advanced ICT Testing Applications and Industry Solutions

ICT testing requirements vary significantly across industry sectors, with each application demanding specific capabilities and performance standards. Understanding these requirements enables optimization of testing strategies for maximum effectiveness while controlling implementation costs.

Automotive and industrial assemblies: Define manufacturing fault coverage, traceability and reporting with the product team. Thermal cycling, aging and environmental screening are separate qualification or screening activities; they are not inherent ICT measurements. A turnkey assembly order should identify which party performs each test.

RF and high-speed assemblies: ICT may check accessible DC connections or low-frequency component values. RF loss, impedance, eye diagrams, jitter and bit-error rate require appropriate instruments, fixtures and calibration. Probe loading and connector launches can change the measured circuit.

Medical and aerospace assemblies: Use the program's approved manufacturing and product-validation requirements. ICT detects specified manufacturing faults; it does not by itself establish regulatory approval or long-term field reliability.

Define the HilPCB ICT Handoff

HILPCB provides ICT, flying-probe and boundary-scan services, including bed-of-nails and flying-probe platforms, guard and Kelvin measurement options, test engineering, program and fixture development, DFT/coverage optimization and troubleshooting, including supported component models and component-library/test-program support matched to the actual BOM, platform and approved stimulus and limits. On supported components and approved ranges, available measurement scopes include ±0.5% resistance and ±1% capacitance; realized uncertainty depends on calibration, access, fixture, DUT and range. Automated handling, environmental and calibration controls, SPC, traceability and test reports can be included in the agreed program.

Provide the assembly revision, netlist, BOM, CAD/placement data, test-pad coordinates and electrical specification. For ICT fixture development, agree:

  • Accessible targets, probe dimensions/forces, board support and keepouts
  • Power sequencing, current limits, safe stimulus and discharge requirements
  • Measurement ranges, uncertainty, guard strategy and acceptance limits
  • Fault coverage, validation boards/faults and diagnostic expectations
  • Fixture/program ownership, changes, maintenance, calibration and delivered records
  • Separate AOI/X-ray, programming, boundary-scan and functional-test responsibilities

Confirm available equipment and engineering deliverables in the quotation. Any quality-system certification should identify the certified legal entity, location, scope and current certificate; a generic ICT service description is not certification evidence.

Frequently Asked Questions

What types of defects can ICT detect?

A suitable program can detect selected opens/shorts, component-value errors, missing or incorrectly oriented parts and other electrical faults when access and circuit topology permit. It cannot establish every placement coordinate or hidden-joint condition. State the covered fault classes and exclusions.

How does ICT compare with functional testing?

ICT targets accessible component/interconnect faults and can aid diagnosis. Functional testing exercises defined board behavior with supplies, stimuli and loads. Either can miss faults outside its coverage; choose them from the product's risks rather than assuming one always replaces the other.

What determines program development time?

Data quality, circuit complexity, access, component models, fixture design and the required validation determine the work. Agree a schedule after DFT review and identify which missing data, fixture changes or firmware dependencies could affect it.

Can ICT handle dense packages?

ICT can measure accessible nets connected to dense devices, but hidden BGA balls are not direct probe targets merely because placement is precise. Boundary scan requires supported devices and a working chain; X-ray addresses different structural features.

How does the environment affect ICT accuracy?

Follow configured tester specifications, calibration and fixture policies. Temperature, humidity, probe contamination, contact wear and DUT settling can affect measurements; control them according to the actual error budget.

Which standards apply?

IPC-9252 addresses electrical testing of unpopulated printed boards. For PCBA ICT, agree a test specification, coverage and limits alongside the applicable assembly process/workmanship requirements. Those assembly standards do not automatically define a complete ICT program.

What are ICT and flying-probe testing?

A bed-of-nails ICT fixture gives repeatable access to selected assembly nets. Flying-probe assembly testing moves probes without that dedicated fixture and may suit lower volumes, but throughput and coverage depend on the board and program. Distinguish either from bare-board flying-probe continuity/isolation tests.
