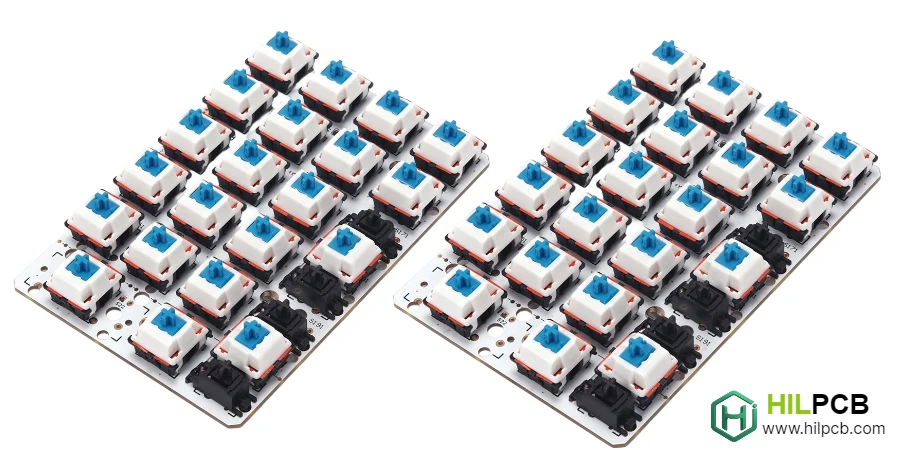

Industrial environments demand input devices that withstand conditions destroying consumer electronics within days. Industrial Keyboard PCB design prioritizes durability, reliability, and long service life over features or aesthetics. These keyboards must operate reliably despite dust, moisture, vibration, temperature extremes, and continuous use across multiple shifts.
HILPCB provides professional PCB fabrication and PCBA assembly services for industrial keyboard manufacturers, delivering the rugged construction and extended-temperature capability these demanding applications require.
Menu Navigation
- Industrial Environment Requirements
- Durability Engineering for Factory Conditions
- Environmental Protection Design
- Industrial Interface Standards
- Extended-Temperature PCB Manufacturing
Industrial Environment Requirements
Understanding industrial operating conditions informs design decisions ensuring reliable keyboard performance across factory and field environments.
Factory floors expose keyboards to contamination, temperature swings, vibration, and intensive use patterns that standard consumer products cannot survive. Manufacturing process requirements dictate specific reliability targets and service life expectations.
Environmental Challenge Analysis
- Contamination Exposure: Dust, oil, metal particles, coolant mist, and chemical vapors penetrate unsealed enclosures, corroding contacts and contaminating switch mechanisms within weeks of deployment.
- Temperature Extremes: Operating ranges from -20°C to +60°C challenge component ratings, with thermal cycling causing solder joint fatigue and material expansion mismatches.
- Moisture Conditions: Humidity condensation, washdown procedures, and splash exposure require sealed construction preventing water ingress to electronics.
- Mechanical Vibration: Continuous vibration from nearby machinery stresses solder joints, loosens connectors, and causes intermittent failures in poorly designed assemblies.
- Usage Intensity: 24/7 operation across multiple shifts accumulates millions of keystrokes annually, demanding switch lifecycle ratings far exceeding consumer specifications.
- Reliability Targets: MTBF expectations of 50,000+ hours with 5-10 year service life require industrial-grade components and manufacturing quality throughout.
Manufacturing Impact on Reliability
PCB fabrication quality directly affects keyboard reliability in industrial environments. Consistent copper plating prevents trace failures under thermal stress. Proper laminate selection ensures dimensional stability across temperature ranges. Conformal coating protects circuits from contamination and moisture.
Durability Engineering for Factory Conditions
Industrial keyboards require design decisions prioritizing long-term reliability over consumer-oriented features, with manufacturing processes matched to industrial performance requirements.
Switch technology selection, PCB construction standards, and component choices collectively determine whether keyboards survive industrial deployment or require frequent replacement disrupting production operations.
Construction Standards for Industrial Applications
- Switch Technology Selection: Membrane switches provide sealed construction with 10M+ cycle life; industrial mechanical switches offer tactile feedback with 50M+ cycle ratings; Hall effect switches eliminate wear mechanisms entirely.
- PCB Thickness Requirements: 1.6mm minimum board thickness provides rigidity preventing flex-induced solder joint failure; 2.0mm boards suit applications with severe vibration or mounting stress.
- Copper Weight Specifications: 2oz copper on power traces and ground planes improves thermal distribution and reduces resistance heating; 1oz minimum on signal traces ensures reliability.
- Connector Robustness: Locking connectors prevent disconnection from vibration; gold-plated contacts maintain low resistance over years of environmental exposure; strain relief protects cable entry points.
- Component Derating: Operating components well within rated limits extends service life—capacitors rated 25% above operating voltage, resistors at 50% power rating maximum.
- Second-Source Strategy: Critical components with multiple qualified sources ensure production continuity when supply disruptions occur.
Material Selection for Longevity
Industrial-rated components specified for extended temperature operation (-40°C to +85°C) survive environmental extremes that destroy commercial-grade parts. High-Tg laminate materials (Tg 170°C+) resist thermal degradation during reflow and operational thermal cycling.
Environmental Protection Design
Protecting electronics from environmental hazards ensures reliable operation throughout the keyboard's expected service life. Ingress protection ratings define specific protection levels for different deployment scenarios.
Sealing strategies must address all potential ingress paths while maintaining manufacturability and serviceability requirements.
Ingress Protection Implementation
- IP54 Protection: Dust-protected and splash-resistant construction suits general factory environments with moderate contamination and occasional cleaning requirements.
- IP65 Protection: Dust-tight and water-jet resistant design addresses factory floors with regular washdown, coolant exposure, and heavy particulate contamination.
- IP67 Protection: Dust-tight with immersion resistance enables deployment in food processing, pharmaceutical, and outdoor environments requiring aggressive cleaning protocols.
- Gasket Sealing Systems: Compression gaskets at enclosure joints, sealed switch construction, and potted cable entries create complete environmental barriers.
- Conformal Coating: Acrylic, urethane, or silicone conformal coating provides secondary PCB protection against moisture and contamination penetrating primary seals.
- Chemical Resistance: Material selection resisting oils, solvents, and cleaning agents prevents degradation from industrial chemical exposure.
Thermal Management Across Temperature Ranges
Extended temperature operation requires components rated for the full operating range, thermal design preventing overheating at high ambient temperatures, and cold-start performance ensuring reliable operation from frozen conditions.
Industrial Interface Standards
Industrial keyboards must interface with diverse control systems using appropriate communication standards, from legacy serial connections to modern industrial Ethernet protocols.
Interface selection depends on the target control system architecture, with many applications requiring multiple interface options for maximum compatibility.
Communication Protocol Options
- USB Interface Implementation: Universal compatibility with modern industrial PCs and HMI systems; USB 2.0 requires 90Ω differential impedance with proper ESD protection for industrial electrical environments.
- PS/2 Legacy Support: Many industrial PCs and older PLCs require PS/2 interface; keyboard controllers supporting both USB and PS/2 maximize deployment flexibility.
- Serial RS-232/RS-485: Direct connection to PLCs and embedded controllers; RS-485 enables long cable runs in electrically noisy factory environments.
- Industrial Ethernet Protocols: Profinet, EtherNet/IP, and Modbus TCP connectivity integrates keyboards directly into automation networks without intermediate PCs.
- Safety System Integration: Dedicated E-stop circuits with safety-rated contacts interface with machine safety systems per ISO 13849 requirements.
- Custom Key Programming: Macro capability and programmable function keys accelerate operator workflows in specific automation applications.
Interface PCB Requirements
Industrial interfaces require proper isolation, protection, and impedance control. Galvanic isolation prevents ground loops between keyboard and control system. Transient protection survives industrial electrical noise.
Extended-Temperature PCB Manufacturing
Industrial keyboards require PCB fabrication and assembly processes validated for extended temperature operation. HILPCB provides industrial-grade manufacturing with material certifications, process controls, and testing appropriate for demanding factory environments.
Why Choose HILPCB for Industrial Keyboard PCB
Extended-Temperature Material Selection
Industrial applications demand materials maintaining performance across -40°C to +85°C or wider ranges. Our FR4 PCB fabrication uses High-Tg laminates (Tg 170°C+) preventing delamination during thermal cycling. Material certifications document thermal properties for your qualification records.
Industrial-Grade Assembly Processes
Our SMT assembly maintains strict process controls ensuring reliability in harsh environments:
- Thermal profiling optimized for industrial-rated components
- AOI inspection catching defects before conformal coating
- Conformal coating application with proper cure verification
- IPC Class 2 or Class 3 workmanship as specified
Environmental Testing Support
We support your qualification testing requirements:
- Temperature cycling screening per your specifications
- Pre-shipment functional testing at temperature extremes
- Documentation packages for quality audits
Conformal Coating Capability
Factory environments demand PCB protection beyond bare assembly. We apply acrylic, urethane, or silicone conformal coating with:
- Proper masking of connectors and test points
- Controlled thickness meeting IPC-CC-830 requirements
- UV inspection verifying complete coverage
Production Flexibility
- Small batch assembly for qualification units and specialty configurations
- Large volume assembly with SPC monitoring for production consistency
- Turnkey assembly sourcing industrial-rated components through authorized channels
Contact us with your industrial keyboard specifications for manufacturing review and quotation.
Common Questions
How should a team choose the right IP rating for an industrial keyboard?
The rating should match the real contamination, washdown, and chemical exposure of the operating environment instead of aiming for the highest number by default. IP54 may suit general factory floors, while IP65 or IP67 make more sense where dust, fluids, or aggressive cleaning procedures are part of normal use.
Why do extended-temperature parts and conformal coating matter so much in industrial keyboards?
Industrial keyboards often run for long hours across temperature swings, moisture exposure, and contamination that simple enclosure sealing cannot fully eliminate. Extended-temperature components and conformal coating help the electronics survive thermal stress, condensation, and chemical residue over a longer service life.
Which interface options should be planned early in industrial keyboard development?
USB, PS/2, serial links, industrial Ethernet protocols, and safety-related connections should all be decided early because they affect layout, protection strategy, connector choice, and isolation requirements. Early interface decisions reduce redesign risk and make it easier to match the keyboard to the target control architecture.
