Smart-lock electronics can use PCBs for sensing, motor drive, secure elements, radios and power management. More demanding security and defense applications require separate specifications, supplier qualification and evidence; generic PCB fabrication does not demonstrate approval for those systems.

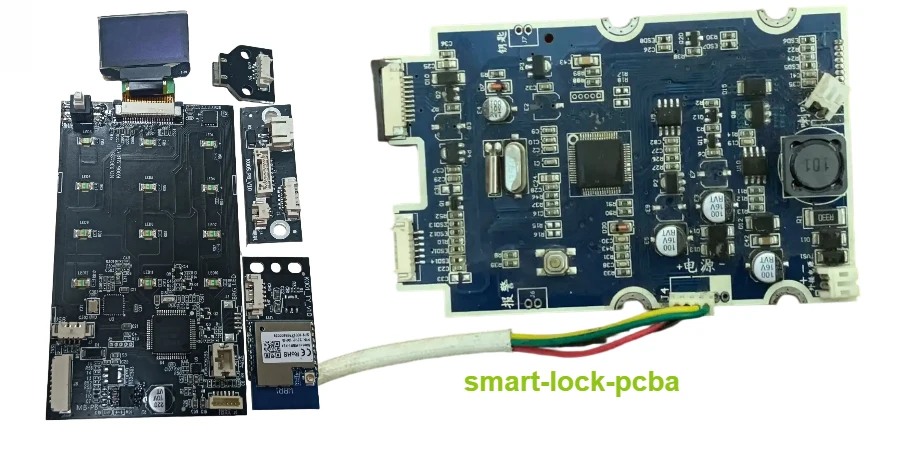

PCB Manufacturing for Smart Locks and Biometric Systems
Define the lock’s sensor, actuator, radio and power architecture before releasing the board. Agree fabrication and assembly requirements for the selected interfaces; biometric matching, access authorization and enclosure security require separate system evidence.
Biometric Authentication PCBs: Capacitive, optical or ultrasonic fingerprint sensors have different interfaces, mechanical openings and protection needs. Define enrollment, matching thresholds, presentation-attack handling, template protection and fallback access for the selected system. Board placement accuracy alone does not establish false-match or false-rejection performance.
Power Management PCBs: Select primary-cell or rechargeable-pack protection and charging for the actual chemistry; not every lock needs a lithium-ion BMS. Budget sensing, radio, standby and motor-stall energy, including cold/aged-cell impedance and brownout recovery. Solar or thermoelectric harvesting is an optional design only where available energy and storage meet the required operation.
Wireless Connectivity and Communication PCBs: Select Wi-Fi, BLE, RFID/NFC or another interface for the actual access method. Follow module-specific antenna/ground requirements and test the installed lock on its intended metal door and enclosure. Radio connectivity does not grant authorization to unlock.
SMT Assembly and Manufacturing Checks: For SMT assembly, agree package/pitch feasibility, placement tolerances, soldering profile, inspection and functional-test access. Verify thermal paths and sensor alignment on the assembled lock; placement and inspection do not establish security or service life.
Provide the released schematic, PCB files, BOM, mechanical tolerances and test plan so HILPCB can confirm the supplying site, construction and assembly scope for the order.
Wireless Connectivity and Network Security
Remote access needs both a usable radio path and authenticated, authorized commands. Evaluate physical, firmware, application and cloud attack paths together.
WiFi module PCB integration can support network monitoring and control. Mesh behavior depends on the selected protocol, role, powered routers and installation; it does not remove dead zones or gateway/cloud failures. Measure link margin, reconnection and command latency in the installed environment.
Bluetooth PCB design can support local phone access. Review pairing, device identity, authorization, replay/relay resistance and lost-phone revocation. BLE energy depends on advertising, connection and application duty cycles. If proximity unlock is provided, validate intent and relay resistance; received signal strength alone does not establish authorized presence.
Encryption and authentication: Use an appropriately configured, reviewed cryptographic protocol with device identity, protected key storage, anti-replay measures and secure firmware update. Wireless range does not imply security; evaluate relay attacks, physical tampering and recovery paths at the complete-system level.
Network Protocol Support: Implement the selected Zigbee, Z-Wave, Thread or Wi-Fi roles and application profiles. Thread provides IP networking; Matter defines an application layer and supported device functions. Verify the actual controller, firmware, credential flow and required certification; a radio or protocol label does not ensure future ecosystem compatibility.
Offline and Emergency Access: Define local credentials, mechanical override and any backup power or network path for the intended use. Check whether codes require cloud validation, cellular access shares a failed supply, and logs persist through power loss. Power-loss locking, fire-system interfaces and emergency egress must follow the installed door’s applicable requirements; neither always-unlock nor always-lock is universal.
Mechanical Integration and Environmental Protection
Smart lock electronics must integrate seamlessly with mechanical locking systems while surviving harsh environmental conditions.
Motor Control Systems: Size the motor driver, supply path and connectors for startup, stall and repeated actuation. Use appropriate position/current feedback, limits and timeout behavior, and test door misalignment or obstruction. A command or motor-current threshold alone may not prove the bolt is fully engaged.
Sensor Integration: Hall sensors, encoders or limit switches can report selected mechanical positions. Distinguish door-closed from bolt-engaged status, and define wiring/sensor fault detection. Tamper and vibration criteria cover specified events; validate nuisance and missed-event behavior rather than assume every attack can be classified.
Environmental sealing: IP65/IP67 are enclosure ingress-protection classifications, not inherent PCB properties. Test the complete lock and its gaskets, buttons and sensor interfaces to the specified IEC 60529 conditions.
Temperature Performance: Specify ambient, storage, sunlight and internal temperatures, then qualify electronics, sensors, lubricants and batteries together. Calibration cannot compensate every sensor or battery limit. Any heater adds an energy and fault-protection requirement; it does not automatically maintain operation in extreme cold.
Physical Security: Evaluate enclosure, fasteners, exposed connectors, debug ports and credential storage against the intended attack model. Seals indicate some access attempts; they do not prevent every intrusion. Define tamper response and reset so lockout does not create an unacceptable egress or recovery failure.
Smart Home Integration and Automation
Modern smart locks function as integral components of comprehensive home automation and security systems.
Smart doorbell PCB integration can present video and visitor notifications to an authorized operator. A camera match or notification is not by itself permission to unlock; define the approval, command authentication and log behavior.
Security camera PCB coordination can correlate access events with video where identity, timestamps and privacy controls permit. Test analytic false/missed events and notification delivery; video or AI output is supporting evidence, not a guarantee of authorized entry.
Home automation PCB systems can coordinate lighting or climate actions after an authenticated entry event. Use separately authorized rules for unlocking and alarm disarming. Geofencing is a location signal, not proof of identity or permission.
Voice Integration: Voice control PCB interfaces may support status and authorized commands. Evaluate replay, nearby listeners, account permissions and confirmation for sensitive actions. Voice recognition or a spoken code alone does not establish secure unlocking; provide a defined alternative access path.
Mobile App Integration: Define user roles, device enrollment/revocation, temporary credential expiry and offline behavior. Protect remote commands and stored logs, synchronize time where validity depends on it, and test lost connectivity or notification delivery. Confirm which events are actually captured and retained.

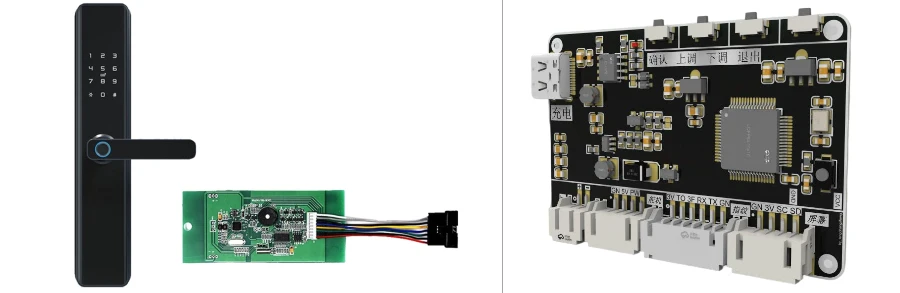

PCB Manufacturing and Assembly for Smart Locks and Secure Access Control Systems
Separate manufacturing acceptance from access-control and product qualification. For the released smart-lock assembly, agree:
- Fabrication and assembly: Stackup, geometry, copper, sensor/connector tolerances, package feasibility, workmanship and approved rework.
- Power and motion tests: Idle/radio current, motor startup/stall, battery sag, bolt/door status, brownout and recovery under the specified conditions.
- RF checks: Installed antenna behavior, coexistence, link margin and the actual protocol/controller combination.
- Security verification: Assign threat review, protected enrollment/provisioning, secure boot/update, credential handling and tamper tests to the responsible teams. Manufacturing inspection does not establish low biometric rejection rates or resistance to all attacks.
- Records: Retain configuration, programmed firmware, test limits/results and agreed lot/serial linkage. Confirm any special cleanroom or secure-sourcing service with site-specific evidence.
NISTIR 8259A provides a useful IoT baseline for device identity, access to interfaces, data protection, authorized updates and security-state reporting. Select controls for the actual product; the baseline is not a smart-lock approval or a promise of complete security.
HILPCB supports smart-lock projects with control-board design and manufacturing, plus integration planning for biometric readers, battery-management and motor controls, wireless, energy harvesting, touch and haptic interfaces. Available project support includes prototype-to-volume planning, project-scoped cleanroom assembly, secure component sourcing, rigorous quality-assurance testing and turnkey coordination. Product security, firmware approval, enclosure ingress protection and authentication performance must be established at the system level.
Preparing a Manufacturing Quote
Send HILPCB the released PCB/BOM data, sensor and antenna guidance, mechanical interfaces, power/motor limits, firmware/programming responsibility and inspection/test requirements. Confirm actual production site, subcontracted work, feasibility, records and acceptance before release. A smart home PCB service category does not establish a qualified military, banking or certified access-control product.
Keep lock hardware and installation compliance separate from PCB acceptance. UL’s access and egress guide explains why power-loss behavior, fire-system integration and the selected locking arrangement must be evaluated together. Verify the requirements applicable to the actual door and installation rather than infer them from a board’s connectivity or security features.
Frequently Asked Questions
What should a smart-lock PCB prototype demonstrate?
Verify sensor and actuator interfaces, installed antenna behavior, realistic battery loads, bolt/door status and failure/recovery modes. Use representative mechanics and firmware; a functional bench prototype is not complete security or installation qualification.
How should a lock handle network or battery failure?
Define which local credentials and mechanical or backup-power paths remain available, how the lock reports low energy and what state it takes under each fault. Evaluate emergency egress and recovery with the installed hardware. A cloud code, cellular modem or electronic event log may depend on the same failed power or network path.
Can moving RF keepouts reduce smart-lock PCB cost?
Compare panelization, connector choices and stackup after preserving the module’s required antenna clearance and ground arrangement. Test on the intended door/enclosure. Keepouts, shields and return paths have different functions; moving or deleting them without RF and EMC evidence can invalidate the design.
