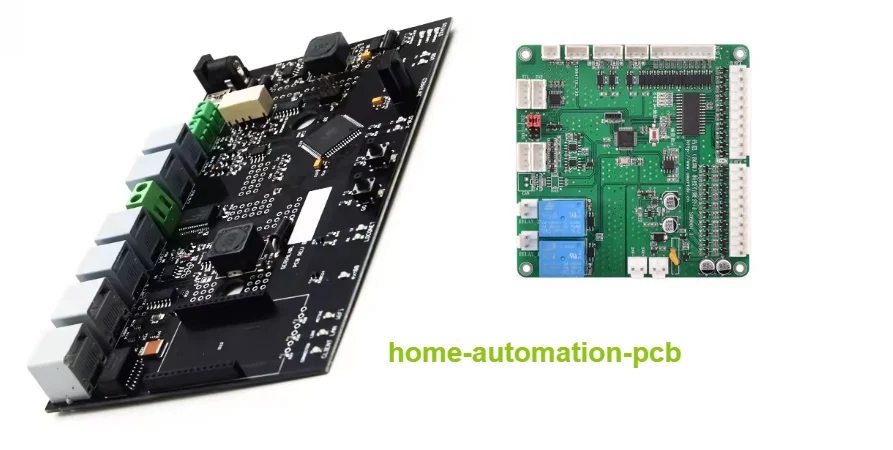

A home automation PCB may provide sensor inputs, approved load outputs, local rules or a gateway to other devices. Define these functions and their electrical interfaces before selecting the board construction. HILPCB can review fabrication and assembly scope against released files; a backplane PCB or rigid-flex PCB is a construction choice, not proof of universal automation capability.
Intelligent Hub and Sensor Integration for Home Automation PCBs
Select the required radios, wired interfaces, sensor ranges, actuator loads and processing resources for the product. Manufacturing tests should verify the specified hardware; application behavior and interoperability require configured-system validation.
Multi-Protocol Connectivity: Wi-Fi, Zigbee, Z-Wave, Thread and Bluetooth use different networks and device roles; not every product needs all of them. Matter is an application interoperability layer, not another radio. WiFi module PCB and Bluetooth PCB design must follow the selected module, antenna and interface constraints. The CSA Matter FAQ distinguishes setup from operating connectivity. A local mesh can continue supported local transactions without internet only if its controllers, power, credentials and application services remain available; cloud rules and remote access may fail.
Sensor Integration: Specify temperature, humidity, air-quality and presence measurements with calibration, placement, units, freshness and fault indications. A presence sensor does not establish identity or continuous location. Interfaces to a smart thermostat PCB, smart speaker PCB or voice control PCB need defined data and command ownership; the PCB alone does not create energy savings or voice-platform compatibility.
Processing and Scale: Budget CPU time, memory, radio scheduling and worst-case event load for the implemented stacks. An RTOS or mesh topology does not guarantee response time, self-recovery or an arbitrary device count. Test congestion, interference, stale messages, watchdog recovery and rejoining, with secure provisioning and authenticated updates.
Manufacturing Scope: Agree board inspection, RF/electrical tests, programming and any environmental or protocol testing separately. Specify fixtures, peers, firmware and acceptance limits; a manufactured hub is not automatically certified for all listed networks.
Intelligent Scene and Automation Control
Sophisticated automation engines enable complex scenarios coordinating multiple devices and systems while learning user preferences and adapting to changing needs.
Scene Management Systems: Predefined and customizable scenes coordinate lighting, climate, security, and entertainment systems with single commands. Time-based scheduling enables automatic scene activation while sunrise/sunset algorithms adjust timing seasonally for optimal energy efficiency.
Adaptive Automation: Treat inferred occupancy or learned preferences as uncertain inputs. Keep user override, bounded setpoints, validity checks and a defined fallback. Validate model behavior rather than assuming continuous learning preserves comfort or safety.
Geofencing and Location Services: Phone location can request an away/home scene with permission, freshness and confidence checks. Missing or delayed location is not proof that a home is empty; define behavior when the phone, network or location service is unavailable.
Conditional Logic Processing: Complex automation rules enable sophisticated responses based on multiple inputs including time, weather, occupancy, and device status. Boolean logic engines process multiple conditions while priority systems resolve conflicting automation commands.
Smart lock PCB integration must use the approved credential and access policy. Geofence, proximity or face recognition alone is not a general authorization to unlock a door. Security camera PCB events can support review and logging but do not independently establish identity or a permitted action. Keep fire/egress and other life-safety functions under their approved system design and local requirements.
Reliable Connectivity and Power Management for Automation PCBs
Separate local control availability from cloud connectivity. At PCB level, define supply ranges, power sequencing, port protection, antenna coexistence and output states during reset, power loss and communication failure. Test those states on the configured product.
Communication Integration: Confirm the exact product versions, supported functions, credentials and gateway/cloud dependencies for Amazon Alexa, Google Assistant, Apple Home and Samsung SmartThings integration. Radio support or a protocol logo does not establish all platform features. Define local command authority, network segmentation, authenticated administration and behavior when a service disappears.
Power Systems: SMT assembly implements the released power design; placement accuracy alone does not provide clean or backed-up power. Size backup energy from measured loads and required duration, including radio peaks, conversion losses and usable battery capacity. Specify low-battery indication, load priorities and restart behavior; backup is not unlimited continuity.
Diagnostics and Recovery: Monitor specified rails, watchdogs and communication/sensor validity. Identify what is detectable and what action follows. Redundant links or cellular backup can improve availability only with independent supported paths, provisioned service and tested switchover; shared power or software faults can disable them together.
Manufacturing Handoff: Record board/firmware identity, I/O ranges, approved loads, radio settings, faults exercised, exclusions and change approval. Assign installed-system commissioning, cybersecurity and protocol qualification to the responsible product teams.
Wide-Scale Applications for Automation PCBs
The following are possible application contexts, each with distinct electrical, environmental and product-qualification requirements. A home-controller build does not qualify every listed use.
Smart Buildings & Facilities Office complexes, apartments and facilities may integrate HVAC, lighting and security status. Approved fire and emergency systems retain their required independence, command authority and commissioning; ordinary automation is not a substitute.
Industrial & Infrastructure Factories, warehouses, logistics centers, energy plants, transportation hubs, and data centers rely on automation PCBs for process control, predictive maintenance, and energy management at scale.
Enterprise Access & Security Corporate campuses, research labs, financial institutions, and defense facilities benefit from PCBs supporting advanced access control, biometric authentication, and surveillance integration.
Retail, Hospitality & Entertainment Hotels, shopping malls, stadiums, airports, and convention centers depend on automation systems for seamless customer experiences, energy efficiency, and crowd management.
Deployment and Acceptance
For larger deployments, establish network role limits, event load, radio airtime, commissioning and recovery with the actual implementation. Turnkey assembly can include agreed sourcing, assembly, programming and tests. Enclosures, cabling, platform certification and site acceptance must be explicitly included or assigned; board production alone does not prove a thousand-device deployment.
Your Complete Automation Electronics Partner
HILPCB supports customers and system teams with home/building-automation PCB design, engineering review, fabrication and assembly for qualified residential, commercial and industrial-control projects. Scope can include hub, sensor, RF and power integration, precision SMT, turnkey assembly, prototype-to-volume support, and agreed RF-coexistence, environmental or protocol testing; enclosure, cabling and system-test options can be quoted where applicable. Radio approvals, Matter/platform licenses, interoperability, cybersecurity, backup behavior, load count, safety commands and egress remain system-level requirements. This does not imply compatibility with every application or platform/device combination.
For a smart-home PCB quotation, provide the released fabrication/assembly files, BOM, connector and load definitions, enclosure constraints, firmware and test package. Include which local functions continue offline, permissions for each writable control and safe output/reset requirements.
Agree build quantities, supplying site, acceptance documents, records and schedule with HILPCB. Validate configured interoperability, power/communication loss, reconnection, update recovery and manual override before operational release. Any emergency-control interface needs its own approved scope and evidence.
