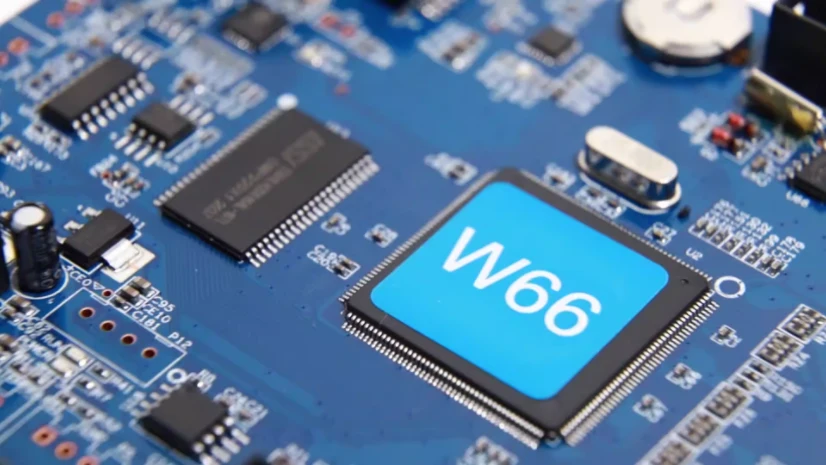

Automotive SMT assembly is the controlled manufacture of electronic assemblies to a released product specification, process plan, quality system, and customer approval path for vehicle use. ADAS sensor/compute boards and EV power-control boards share automotive discipline, but their package, RF, thermal, insulation, cleanliness, test, and failure risks require different process windows.
Key Takeaways
- AEC-Q100, AEC-Q200, and related AEC documents qualify component families under defined stress tests; they do not certify a finished PCBA.
- ISO 26262 governs functional-safety activities for road-vehicle electrical/electronic systems. Manufacturing must implement allocated safety requirements and controls, but “ISO 26262 SMT assembly” is not a solder-quality grade.
- IATF 16949 is an automotive quality-management-system standard. Confirm the manufacturing site's valid certificate, scope, customer-specific requirements, and approved process—not only a logo.
- APQP, Control Plan, PPAP, PFMEA, MSA, and SPC are connected tools. The customer defines submission level, evidence, special characteristics, and approval.
- J-STD-020 and J-STD-033 control moisture/reflow classification and handling concepts. Baking time and temperature depend on package, exposure, thickness, supplier limits, and the applicable procedure.
- SPI, AOI, and X-ray find different defect classes. X-ray does not prove metallurgy, fatigue life, cleanliness, firmware, or complete function.
- There is no universal 5% void limit, reflow profile, hipot voltage, or creepage distance for every ADAS or EV assembly.
- Release a test-coverage map, traceability schema, process-window evidence, reaction plan, and change-control triggers before automotive volume ramp.
Contents
- How Do ADAS and EV Power Assemblies Differ?
- Which Automotive Standards Apply to SMT Assembly?
- How Do APQP and PPAP Control the Manufacturing Launch?
- What Should DFM, DFA, and DFT Review?
- How Are MSL, Paste, Stencil, and Reflow Controlled?
- How Should Voiding and Hidden Joints Be Evaluated?
- How Are EV High-Voltage Cleanliness and Insulation Controlled?
- What Can SPI, AOI, X-Ray, ICT, and FCT Actually Detect?
- What Traceability and SPC Data Should Be Retained?
- How Is the Process Released From Prototype to Volume?
- What Should an Automotive SMT Assembly RFQ Include?
How Do ADAS and EV Power Assemblies Differ?
ADAS is not one board type. Radar, camera, lidar, domain-control, and sensor-fusion assemblies may combine RF channels, image sensors, fine-pitch processors, high-speed memory, SerDes, connectors, shields, thermal interfaces, optics, and calibrated mechanical alignment. The housing and optical/RF path can be as important as soldering.
EV power electronics include inverter, onboard-charger, DC/DC, battery-control, and power-distribution assemblies. Some boards only control and sense; others integrate power packages, busbars, press-fit pins, transformers, relays, or high-voltage connectors. The main traction current often does not travel through SMT copper.
Application-to-process risk matrix
| Assembly | Dominant risks | Process controls to plan | Evidence outside SMT inspection |
|---|---|---|---|
| ADAS radar | RF launch/antenna variation, BGA/LGA joints, shield grounding, warpage, contamination and calibration | stackup/finish control, paste transfer, placement, reflow, shield process, X-ray and RF test access | antenna pattern, RF calibration, radome and vehicle integration |
| ADAS camera | sensor/processor joints, optical contamination, focus/alignment, thermal stress and high-speed links | clean handling, controlled adhesive/underfill where specified, placement/reflow, optical station integration | image quality, calibration, housing seal and vehicle perception performance |
| ADAS compute | large BGA warpage, dense memory, power integrity, thermal interface and connector stress | package/board warpage study, profile, bottom-terminated-joint inspection, programming and functional test | software, cybersecurity, thermal solution and system safety behavior |
| EV gate/control board | isolation, common-mode transients, gate-loop behavior, sensor accuracy and fault response | cleanliness, isolation-part control, reflow/selective solder, dielectric/functional test | power-module switching, short-circuit and inverter-level safety tests |
| EV power assembly | large thermal pads, mixed technology, press-fit/bolted joints, high current, coating and insulation | solder/voiding criteria, selective solder or press-fit controls, torque, cleanliness, coating and X-ray | busbar/module/cooling performance, high-voltage product qualification |
A mature manufacturing plan preserves these distinctions while applying common configuration, quality, and change discipline.
Which Automotive Standards Apply to SMT Assembly?
Standards form a responsibility stack rather than one “automotive grade” certificate.
- IATF 16949 defines an automotive QMS aligned with ISO 9001 and customer-specific requirements. Certification applies to a stated site and scope; it does not approve a particular PCBA or process window.
- ISO 26262 covers functional-safety management and the concept, system, hardware, software, production, operation, service, and decommissioning lifecycle for applicable road vehicles. The safety plan allocates manufacturing controls and evidence.
- AEC-Q100/AEC-Q200 and other AEC documents define stress-test qualification for packaged integrated circuits, passive components, and other component categories. Qualified components can still be damaged, misapplied, stored incorrectly, or assembled poorly.
- J-STD-001 defines soldered electrical/electronic assembly requirements; IPC-A-610 defines acceptability criteria. The contract must state revision, class, automotive addendum if applicable, and customer exceptions.
- J-STD-020 and J-STD-033 address moisture/reflow classification and handling of moisture-sensitive devices. Component supplier instructions remain important.
- IPC-7095 provides BGA design and assembly-process guidance; IPC-7093 addresses bottom-termination components. IPC-9701 supports solder-attachment performance testing when invoked.
- IEC 60664-1, ISO 6469-3, UNECE regulations, OEM specifications, and product standards may contribute to EV high-voltage requirements depending on market and allocation.
IPC-A-610 Class 3 is not automatically required for all automotive electronics and does not prove functional safety. Agree the workmanship class and product-specific criteria with the customer.
How Do APQP and PPAP Control the Manufacturing Launch?
APQP organizes planning from requirements through process validation and feedback. PFMEA identifies process failure modes and prevention/detection controls; the Process Flow and Control Plan turn those controls into production steps, methods, frequencies, reaction plans, and records.
PPAP is the customer submission and approval mechanism. Its required evidence can include design/process records, engineering changes, DFMEA/PFMEA, flow diagram, Control Plan, MSA, dimensional and material/performance results, capability studies, qualified-laboratory evidence, samples, checking aids, customer-specific records, and the Part Submission Warrant.
“First article inspection” may be a customer requirement, but automotive PPAP is not the same as AS9102 aerospace FAI. Define the required dimensional/initial-sample report and its relationship to PPAP rather than substituting terminology.
Special characteristics must flow into drawing symbols, PFMEA, Control Plan, work instructions, inspection/test, capability evidence, traceability, and reaction plans. A Cpk value is meaningful only for a stable process, a capable measurement system, a defined characteristic, and representative data.
What Should DFM, DFA, and DFT Review?
Automotive DFM must close the loop between design, process, inspection, test, service, and field environment.
- Land patterns and paste: component supplier guidance, pad definition, stencil area ratio, aperture shape/reduction, via-in-pad fill/cap, thermal-pad segmentation and solder-mask registration
- Package/board mechanics: BGA and board warpage, component mass, CTE mismatch, depanel stress, board support, connector insertion and housing fasteners
- Panel and placement: rails, fiducials, tooling holes, component keep-outs, conveyor support, balanced panelization, traceability marks and bad-board handling
- Process mix: SMT sides, reflow count, selective/wave solder, press-fit, pin-in-paste, hand operations, cleaning, coating, potting, underfill, shields and thermal-interface material
- Test access: programming, boundary scan, flying probe/ICT, functional connectors, RF/optical calibration, high-voltage isolation and safe discharge
- Service/change: replaceable modules, calibration retention, secure firmware, alternate components, rework limits and evidence required after change
For ADAS, include the entire sensor stack: board, connector, shield, housing, antenna/radome or lens, adhesives, thermal path, alignment, calibration, and sealing. For EV power, include busbar/terminal geometry, isolation barriers, heatsink/cold plate, torque, discharge, interlocks, and safe fixture access.
How Are MSL, Paste, Stencil, and Reflow Controlled?
MSL control begins at receiving. Verify manufacturer, part number, moisture-sensitivity level, peak reflow temperature, bag/seal condition, humidity indicator card, desiccant, date, and exposure history. Track floor life through kitting, setup, line stoppage, rework, and return to dry storage.
Do not apply a universal “125°C for 24 hours” bake. Package body thickness, MSL, exposure, bake temperature, carrier/tray rating, solderability risk, oxidation, labels, tape-and-reel limits, and component supplier instructions determine the recovery method. Re-bagging does not reset absorbed moisture.
Paste alloy, flux system, powder type, storage, thaw, working life, print interval, cleaning, and compatibility must be released together. Type 4 or 5 powder may help specific fine apertures, but it changes oxidation surface area, rheology, cost, storage, and process behavior.
Develop the profile on a representative populated assembly with thermocouples at the thermal extremes and critical packages. Meet paste and component limits for ramp, soak, time above liquidus, peak, and cooling without copying a generic range. Large power components and dense BGAs can create a narrow window between cold and overheated locations.
Nitrogen can improve wetting and reduce oxidation; vacuum reflow can reduce certain voiding mechanisms. Neither is automatically necessary, and neither compensates for poor land pattern, paste volume, via design, contamination, or profile.
How Should Voiding and Hidden Joints Be Evaluated?
Void acceptance must identify package, joint type, function, measurement method, region, distribution, size, location, and customer limit. A thermal-pad void affects heat spreading differently from a BGA sphere void; a single large void differs from dispersed microvoids.
There is no universal “below 5%” target for all automotive BGAs, QFNs, power packages, or solder preforms. Start with the package/application requirement and correlate X-ray results with thermal, electrical, mechanical, and reliability evidence.
2D X-ray reveals density differences and is useful for bridges, missing balls, gross opens, voiding, and alignment. Oblique/3D or computed-tomography methods improve separation in overlapping structures. X-ray cannot reliably identify every non-wet, head-in-pillow, microcrack, intermetallic, or mechanically weak joint from one image. Cross-section, dye-and-pry, electrical tests, acoustic methods, thermal imaging, or reliability testing may be needed for investigation or qualification.
How Are EV High-Voltage Cleanliness and Insulation Controlled?
The assembly drawing must state circuit boundaries, working/transient voltages, insulation type, creepage/clearance, pollution assumptions, material group, altitude, slots/barriers, coating/potting, connectors, mounting hardware, and test points. Manufacturing then preserves those features within tolerance.
Flux residue, fingerprints, fibers, solder balls, metal debris, coating voids, and process chemicals can degrade insulation. “No-clean” means the flux is designed for a qualified no-clean process; it does not mean every residue level is acceptable for high voltage, coating adhesion, or a customer's electrochemical-migration risk.
Use cleanliness evidence matched to the risk. Ionic extraction can monitor process change, while surface-insulation-resistance or electrochemical-migration testing better addresses electrical behavior under defined bias and humidity. ROSE alone is not a universal product-acceptance proof.
Hipot voltage, waveform, ramp, duration, leakage, discharge, fixture safety, and test location come from the product safety plan. Partial-discharge testing is useful only where insulation design and acceptance criteria require it. Coating does not automatically permit reduced spacing unless the governing standard and controlled process support that claim.
What Can SPI, AOI, X-Ray, ICT, and FCT Actually Detect?
Inspection-and-test coverage matrix
| Method | Strong coverage | Important blind spots |
|---|---|---|
| 3D SPI | paste height, area, volume, offset and bridging risk before placement | paste chemistry, final joint metallurgy, hidden post-reflow behavior |
| AOI | presence, polarity, marking, placement and visible joint geometry | hidden joints, internal cracks, exact electrical value/function |
| 2D/3D X-ray | hidden-joint geometry, bridges, missing features and void distribution | many non-wet/metallurgical weaknesses, cleanliness, firmware and function |
| Flying probe | opens/shorts, component measurements and accessible-net checks without fixed fixture | limited throughput/access, dynamic function and unprobed faults |
| ICT/boundary scan | fast net/component checks, programming and structural digital coverage | inaccessible nodes, analog/RF/system behavior and fixture escapes |
| FCT | powered interfaces, sensors, actuators, communications and programmed behavior within test limits | unexercised modes, latent reliability, vehicle interactions and unspecified faults |
| Dielectric/continuity test | insulation leakage/withstand and protective-bond continuity as configured | long-term tracking, all transient conditions and complete vehicle safety |
| RF/optical calibration | sensor-path performance at defined conditions | full vehicle perception, environmental drift and software safety case |
Publish coverage by fault class and component/net, not by a single percentage without methodology. Include known escapes, false-call controls, fixture maintenance, golden-unit governance, calibration, software version, limit review, retest policy, and failure analysis.
What Traceability and SPC Data Should Be Retained?
Traceability should support containment and root cause without collecting data that cannot be related to a product. Depending on customer requirements, link serial or lot identity to:
- PCB lot/revision, component manufacturer/date/lot, approved alternates and material status
- paste/flux/adhesive/coating lots, MSL exposure/bake, storage and shelf-life
- machine/program/revision, stencil, placement, reflow profile/oven, selective solder, press-fit and torque records
- SPI/AOI/X-ray decisions and review, rework/repair, programming/calibration and test results
- operator/equipment authorization, maintenance/calibration, deviation, nonconformance and disposition
SPC should monitor inputs and outputs that control risk: paste volume, placement, profile, press-fit force, coating, torque, test drift, defect modes, false calls, first-pass yield, scrap and rework. Set reaction plans before limits are crossed; do not use aggregate yield to hide a safety-related defect trend.
How Is the Process Released From Prototype to Volume?
| Gate | Required evidence | Release question |
|---|---|---|
| Engineering build | DFM/DFA/DFT, risk register, temporary process/test plan and configuration | Can the build expose design and process risks safely? |
| Process development | stencil/profile/fixture studies, inspection programs, MSL/cleanliness/coating controls | Is a repeatable process window demonstrated? |
| Design/process validation | qualification units, reliability/environmental results, MSA, capability and failure analysis | Do product and process evidence meet allocated requirements? |
| PPAP/customer approval | required submission package, samples, Run@Rate or capacity evidence where requested | Has the customer approved this configuration and manufacturing site/process? |
| Volume production | Control Plan, trained operators, traceability, reaction plans, audit and maintenance | Is every lot built under the approved baseline? |
| Change/recertification | impact analysis, customer notification, validation and updated documents | Does the change trigger resubmission or requalification? |
Run@Rate demonstrates production under defined rate and conditions when the customer requires it. It does not replace product validation, PPAP approval, or ongoing process control.
What Should an Automotive SMT Assembly RFQ Include?
Product and program data
- Gerber/ODB++/IPC-2581, drill/rout, netlist, drawings, stackup, BOM/AVL, centroid, assembly, schematics, firmware, test specification and revision
- application and safety relevance; prototype, validation, PPAP and annual volumes; target cycle; service life; destination markets and OEM/Tier customer
- component MSL/reflow limits, special characteristics, approved alternates, obsolescence and counterfeit-prevention requirements
Process and acceptance
- IPC/J-STD revisions/class/addenda and customer workmanship criteria; stencil/paste, reflow, selective/wave solder, press-fit, cleaning, coating, potting, underfill and torque requirements
- voiding criteria by package/joint and X-ray method; profile limits; board/package warpage; cleanliness/SIR; insulation/hipot; rework limits
- packaging, ESD, moisture barrier, labeling, IMDS/material declarations where required and shelf-life controls
Quality and evidence
- IATF certificate/site scope and customer-specific requirements; APQP responsibility; PPAP level/elements; PFMEA/Control Plan ownership; MSA/capability targets
- serialization/lot traceability fields, record retention, change notification, deviation, containment, failure analysis, warranty/field-return response and audit rights
- SPI/AOI/X-ray sampling or coverage, flying probe/ICT/boundary scan/FCT/RF/optical/dielectric tests, fixture ownership, fault coverage and report format
HILPCB can review assembly buildability through SMT assembly, heavy copper PCB, and turnkey assembly workflows. Automotive approval, functional safety, environmental performance, and vehicle validation remain the responsibility of the released product program and its designated authorities.
Reference Standards and Manuals
- IATF 16949 — International Automotive Task Force
- ISO 26262 and ISO 6469-3 — International Organization for Standardization
- AEC-Q100 and AEC-Q200 — Automotive Electronics Council
- APQP, Control Plan, PPAP, FMEA, MSA, and SPC manuals — AIAG
- J-STD-001, IPC-A-610, IPC-7093, IPC-7095, and IPC-9701 — IPC
- J-STD-020 and J-STD-033 — JEDEC/IPC
- IPC-2221, IPC-6012, IPC-TM-650, and IEC 60664-1 — IPC and IEC
Confirm editions, customer-specific requirements, product applicability, acceptance criteria, and record-retention periods for each program.
Frequently Asked Questions
Does AEC-Q100 certify an automotive PCBA?
No. AEC-Q100 qualifies packaged integrated circuits under defined tests. Finished PCBA quality depends on design, materials, assembly, inspection, test, qualification, and control.
Is IPC-A-610 Class 3 mandatory for automotive electronics?
Not automatically. The customer contract defines class, revision, automotive addendum, product-specific criteria, and exceptions. Class 3 does not prove functional safety.
Does X-ray detect every BGA solder defect?
No. It is strong for hidden geometry, bridges, missing balls and voids, but some non-wet, head-in-pillow, microcrack and metallurgical weaknesses need other evidence.
Is vacuum reflow required for low-void automotive assemblies?
Only when the joint requirement and process study justify it. Land pattern, paste volume, via design, flux, profile, pressure cycle and component finish also affect voiding.
What is the correct bake for an exposed MSL 3 component?
Use J-STD-033, the package thickness/exposure history, carrier limits and component supplier instructions. A fixed 125°C/24-hour rule is unsafe as a universal answer.
Does conformal coating solve EV creepage and cleanliness problems?
No. It requires a qualified clean surface, controlled coverage and compatible materials. Spacing reductions apply only when the governing standard and validated process permit them.
Release the Evidence System With the Assembly
Automotive SMT success is a controlled chain from requirements and component status through printing, placement, soldering, cleanliness, inspection, test, traceability, PPAP, and change management. Send HILPCB the allocated acceptance and evidence package—not only Gerbers and a BOM—so process risks can be closed before validation and volume ramp.
