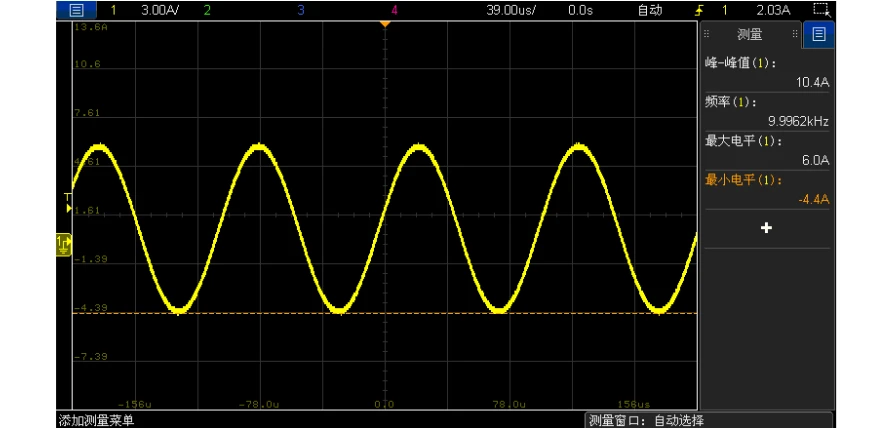

Waveform integrity is the ability of a transmitter, interconnect and receiver to preserve enough voltage and timing margin to recover symbols at the required error rate. An attractive eye at the wrong test point, pattern, clock recovery or equalization state does not prove compliance.
Key Takeaways
- Define interface, rate, measurement plane, reference receiver, pattern, equalization and BER target before reviewing an eye.
- Eye diagrams reveal combined voltage/time behavior but do not prove protocol correctness or capture every rare error.
- Trigger and clock-recovery settings change apparent jitter; use the specified method.
- BER targets are interface-specific. Do not apply
10^-12as a universal requirement or infer a low BER from a shallow eye acquisition. - Separate transmitter, channel and receiver evidence: oscilloscope, VNA/TDR, simulation and BERT answer different questions.
- Equalization trades channel compensation against noise, crosstalk, transmitter power and receiver range. More boost is not automatically better.
- Back drilling, low-loss laminate and tighter impedance tolerance are selected from channel margin and discontinuity analysis—not a universal data-rate threshold.
- Lock material model, stackup, copper, vias, connector and test method for production.
Table of Contents
- Define the Link and Measurement Plane First
- Read an Eye Diagram Without Overclaiming
- Understand Jitter by Cause and Measurement
- Separate Noise, Loss, Reflection and Crosstalk
- Apply Equalization Within a Channel Budget
- Design the PCB Channel for Margin
- Correlate Simulation, VNA, TDR, Scope and BERT
- Use a Waveform Integrity Release Matrix
- Diagnose Common Eye and BER Failures
- Waveform Integrity PCB RFQ Checklist
- Reference Standards and Responsibility Boundaries
- How HILPCB Supports Controlled Channels
- FAQ
- Conclusion
Define the Link and Measurement Plane First
“The eye is open” is not a criterion until test context is fixed. Standards define different transmitter tests, channel metrics, reference receivers and error-rate methods.
Record these conditions in the validation plan:
| Item | Why it changes the result |
|---|---|
| Interface, generation and signaling | Defines data/symbol rate, coding, levels, masks and compliance method |
| Measurement plane | Package pin, test pad, connector, cable end and receiver input include different loss and discontinuities |
| Test pattern and length | Repeating, PRBS and compliance patterns excite different ISI and aggressor states |
| Trigger or clock recovery | Loop bandwidth and reference method change displayed timing motion |
| Reference receiver/filter | Controls the bandwidth through which compliance is judged |
| Equalization state | Transmitter FFE, receiver CTLE/DFE and adaptation can open or close the eye |
| Aggressors and workload | Crosstalk, simultaneous switching and supply noise depend on system activity |
| BER target and confidence | Determines required bit count, dwell time or accepted extrapolation method |
| Fixture and de-embedding | Cables, probes, launches and fixtures can add or hide impairment |
Responsibility follows the channel boundary: the fabricator controls released board construction, the silicon owner controls Tx/Rx behavior, and the system owner controls connectors, cables, firmware, power and compliance setup.
Read an Eye Diagram Without Overclaiming
An eye overlays many unit intervals to expose bandwidth, reflection, inter-symbol interference (ISI), jitter, noise and crosstalk. Eye height/width, crossings, rise/fall time, mask hits and contours use definitions from the applicable method.
| Observation | Possible causes | Evidence needed before changing layout |
|---|---|---|
| Low eye height | Insertion loss, vertical noise, supply modulation, crosstalk or excessive termination loading | Channel loss, rail/noise correlation and aggressor test |
| Narrow eye width | ISI, periodic/random jitter, reflection or clock-recovery setup | TIE/jitter spectrum, TDR/VNA and clock-recovery settings |
| Thick or multiple edge paths | Pattern-dependent ISI, reflection, crosstalk or mode switching | Pattern correlation, impulse/pulse response and aggressor control |
| Asymmetric crossing | Duty-cycle distortion, unequal rise/fall behavior or differential imbalance | Separate rising/falling statistics and pair/mode-conversion data |
| Overshoot/ringing | Impedance discontinuity, underdamped source/load or probe/fixture artifact | TDR and measurement-system validation |
| Mask violation | Insufficient margin under the specified test | Confirm mask alignment, filter, population and acquisition depth |
Tektronix notes that a useful eye includes patterns exposing system weaknesses. Data triggering can miss transition-free runs; divided clocks can sample only part of a repeating pattern. Recovered-clock bandwidth can track out jitter or show it against a steadier reference. Follow the standard, not the prettiest setting.
Eyes have finite data depth, so rare pattern, crosstalk or noise events may be absent. BER testing checks recovered bits; the eye explains parametric margin and likely cause.
Understand Jitter by Cause and Measurement
Jitter is transition-time variation. Analysis often separates random jitter from bounded data-dependent, duty-cycle, periodic and uncorrelated components. Decomposition and extrapolation must match instrument, standard and data behavior.
Do not present TJ = DJ + 2Q × RJ as universal. It relies on statistical assumptions; correlated noise, non-Gaussian tails, adaptation, spread spectrum and limited depth can invalidate a simple extrapolation.
Use several views together:
- Time-interval error (TIE): shows transition timing versus the chosen clock reference.
- Histogram: shows distribution, but can hide periodic relationships.
- Jitter spectrum: links periodic components to clocks, converters or modulation.
- Bathtub curve: shows BER versus sampling time under a defined receiver/clock model.
- Pattern correlation: separates data-dependent ISI from uncorrelated timing noise.
- Rail and aggressor correlation: identifies supply or crosstalk modulation.
Clock, transmitter, channel ISI, discontinuities, crosstalk and receiver recovery contribute. Define each budget term and prevent double counting.
Separate Noise, Loss, Reflection and Crosstalk
Use frequency- and time-domain evidence to separate simultaneous causes.
Insertion loss attenuates high-frequency content and spreads pulses. Assess magnitude, phase and loss slope across the required band.
Return loss and TDR expose discontinuities at launches, vias, connectors and terminations. TDR locates impedance events but does not prove eye or BER.
Crosstalk depends on coupling, spacing, references, transitions, pattern and termination. Assess NEXT/FEXT and mixed-mode conversion as required.
Power/ground noise modulates amplitude, threshold and clock phase. Correlate rails with eye or errors under production workloads.
External interference enters connectors, references or power. Reproduce enclosure, cables and grounding before blaming the PCB.
Apply Equalization Within a Channel Budget
Equalization compensates predictable channel behavior, not severe noise, nonlinearity or random defects.
| Technique | Primary action | Tradeoff to validate |
|---|---|---|
| Transmitter FFE/pre-emphasis/de-emphasis | Shapes present and neighboring symbols before the channel | Swing, transmitter power, crosstalk and allowed coefficient range |
| Receiver CTLE | Boosts high-frequency content relative to low frequency | Amplifies high-frequency noise and aggressors; may overload stages |
| Receiver DFE | Subtracts estimated post-cursor ISI using prior decisions | Error propagation, adaptation behavior and limited pre-cursor correction |
| Retimer/redriver | Restores or conditions a link segment | Added jitter, latency, power, protocol support and test boundary |
Sweep approved transmitter presets, receiver equalization, voltage, temperature, process and aggressors. A trained setting pinned at an extreme indicates little reserve.
Do not claim fixed “10–20 dB recovery.” Allowable loss and equalization are interface- and silicon-specific; use vendor models and compliance limits.
Design the PCB Channel for Margin
Allocate loss, reflection, crosstalk and skew budgets across package, launches, traces, vias, connector and cable.
- Choose laminate using design Dk, Df, glass-weave behavior, copper profile, moisture/temperature and supplier process capability at relevant frequency.
- Build controlled impedance from the final stackup and copper treatment, not a nominal online calculator.
- Keep differential geometry and reference continuity through breakouts and transitions; add nearby return vias where references change.
- Minimize stubs and discontinuities. Use back drilling, blind/buried vias or alternate layer assignment when analysis shows the stub consumes margin.
- Control pair skew while avoiding unnecessary serpentine coupling. System skew includes package, connector and cable—not PCB length alone.
- Space aggressors from victims according to the crosstalk budget, with simultaneous worst-case activity.
- Include test launches/coupons designed for the intended VNA/TDR method and de-embedding.
No rule says every path above 10 Gbps needs back drilling. Stub length, spectrum, via geometry and channel budget decide.
Correlate Simulation, VNA, TDR, Scope and BERT
Each tool provides different evidence:
| Tool | Best question | Common limitation |
|---|---|---|
| 3D EM/channel simulation | Will proposed geometry meet budgets across corners? | Model quality and missing package/connector/material detail |
| IBIS-AMI simulation | How do transmitter/channel/receiver algorithms interact statistically or bit-by-bit? | Model availability, configuration and proprietary abstraction |
| VNA | What are insertion/return loss, crosstalk and mode conversion? | Calibration, fixture/de-embedding and bandwidth/dynamic range |
| TDR/TDT | Where are impedance and time-domain discontinuities? | Spatial resolution and fixture/probe influence |
| Oscilloscope | What waveform, eye and jitter reach the defined plane? | Bandwidth/noise, clock recovery, data depth and probing |
| BERT | Does the link meet error-rate and margin requirements? | Long test time at rare-error targets; limited root-cause detail |
Tektronix highlights removing cable, connector and fixture effects to reach the intended plane. De-embedding can amplify noise or model errors; validate S-parameters, calibration, bandwidth and reference planes before trusting the corrected eye.
Use a Waveform Integrity Release Matrix
No single screenshot replaces this evidence chain.
| Release gate | Controlled inputs | Required output | Decision |
|---|---|---|---|
| Requirements | Interface/version, plane, BER, pattern, reference receiver, equalization and environment | Signed channel/test specification | Is success measurable and owned? |
| Pre-layout | Package/connector/cable models, stackup options and corners | Feasibility and budget allocation | Is architecture viable? |
| Post-layout | Extracted routes, vias, launches and aggressors | SI/AMI simulation across corners/settings | Is layout ready to release? |
| Fabrication qualification | Production stackup, coupons and test launches | Impedance plus TDR/VNA correlation | Does hardware match the model? |
| Electrical validation | Calibrated fixtures, defined clock recovery and workload | Eye/jitter plus BER or compliance evidence | Does the link meet its specification? |
| Production validation | Lots, approved substitutions and environmental corners | Repeatability/capability and failure disposition | Can volume preserve margin? |
Archive raw waveforms, S-parameters, calibration/de-embedding, settings, firmware, patterns and serial/revision. A screenshot alone is weak failure-analysis evidence.
Diagnose Common Eye and BER Failures
| Symptom | Likely causes | Next discriminating test |
|---|---|---|
| Simulated eye passes; measured eye fails | Wrong material/roughness model, fixture, package, via or transmitter setting | Compare measured S-parameters/TDR with model block by block |
| Eye looks clean; BER errors remain | Rare crosstalk/noise, protocol issue, burst error or shallow acquisition | Long BERT/error log with aggressor and workload correlation |
| BER passes only at maximum equalization | Excess loss/ISI or incorrect preset/training | Sweep channel/settings; inspect adaptation limit and loss budget |
| One lane fails | Local via/connector defect, skew, crosstalk or assembly damage | Lane-to-lane TDR/VNA and physical inspection |
| Errors vary with temperature | Material loss, clock/PLL, silicon margin or connector contact | Temperature sweep with rail, jitter and channel evidence |
| Different labs report different eyes | Plane, pattern, clock recovery, filter, probe or de-embedding mismatch | Reconcile a shared test-method checklist and raw data |
Waveform Integrity PCB RFQ Checklist
Interface: protocol/generation, data or symbol rate, NRZ/PAM format, lane count, channel topology, target BER, compliance document and required margin.
Models and constraints: transmitter/receiver or IBIS-AMI models, package/connector/cable S-parameters, presets/equalization ranges, impedance, loss, crosstalk and skew budgets.
PCB package: schematic, Gerber/ODB++/IPC-2581, stackup, laminate/copper profile, differential geometry, via/back-drill details, reference transitions, coupons and test launches.
Test method: measurement plane, pattern, aggressors, clock recovery, reference receiver, fixture/calibration/de-embedding files, instruments, environmental corners and acceptance limits.
Production control: approved material and alternates, stackup tolerance, impedance test, lot/sample plan, critical connector and BOM substitutions, traceability and change/requalification rules.
Reference Standards and Responsibility Boundaries
- IBIS Specification — IBIS Open Forum
- IBIS-AMI Specification — IBIS Open Forum
- IEEE 802.3 — IEEE
- PCI Express Base Specification — PCI-SIG
- USB specifications — USB Implementers Forum
- JEDEC JESD204 series — JEDEC
- IPC-2141 — IPC
- IPC-2251 — IPC
- IPC-TM-650 — IPC
Applicable specifications and test methods depend on the selected interface and product. HILPCB can manufacture controlled constructions and support coupons, test access and DFM. The product owner remains responsible for silicon/model rights, channel architecture, compliance interpretation, test correlation, firmware/training behavior and final system qualification.
How HILPCB Supports Controlled Channels
HILPCB can review stackup, material availability, copper profile, controlled impedance, via stubs, back-drill data, reference transitions, coupons and test launches before fabrication. High-speed PCB manufacturing supports dense digital interconnects, while high-frequency PCB manufacturing supports approved low-loss material constructions.
For assembled validation units, turnkey PCB assembly can align approved connectors and critical parts with traceability and inspection. Exact impedance tolerance, VNA/TDR scope and acceptance evidence are confirmed per quotation rather than asserted as universal capability.
FAQ
Does an open eye diagram prove a high-speed link will have low BER?
No. The eye may have limited acquisition depth and may omit rare patterns, crosstalk bursts or protocol faults. BER also depends on the receiver, clock recovery, equalization and logical data. Use the specified eye/compliance method together with BERT or system error evidence.
What is a good BER target for waveform integrity?
The interface and reliability allocation set the target; 10^-12 is not universal. State whether it is measured, extrapolated or after error correction, plus confidence/test duration.
Can equalization fix a poor PCB channel?
Equalization compensates predictable loss/ISI within Tx/Rx range. It cannot recover severe noise, crosstalk, mode conversion or defects. A setting at its limit is a warning.
When should a high-speed PCB via be back drilled?
Back drill when the unused via stub's modeled or measured resonance/reflection consumes the channel budget and the fabrication tolerance is manageable. Data rate alone is insufficient; consider layer assignment, stub length, signal spectrum, launch geometry and the complete channel.
Conclusion
Waveform integrity is released through a controlled evidence chain, not one eye screenshot. Send HILPCB the interface requirements, models, stackup, extracted constraints, via/back-drill data and measurement plan so fabrication and assembly preserve the channel that simulation and test actually qualified.
