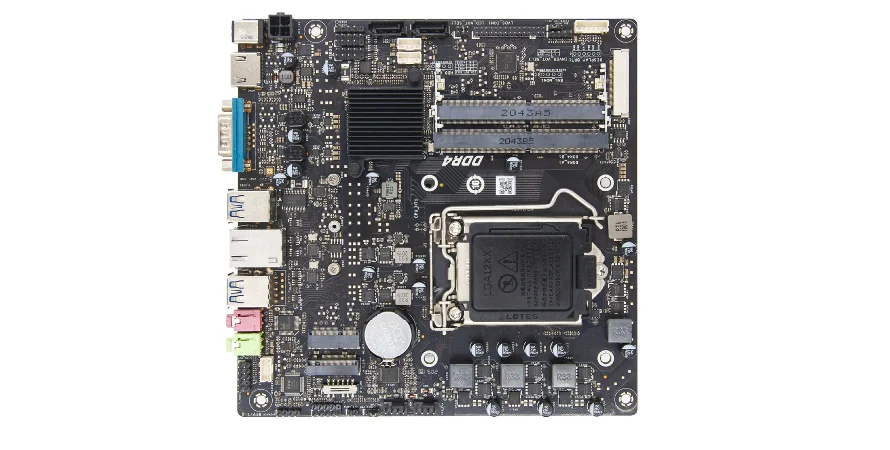

High-Density Motherboard PCB Manufacturing with Advanced Materials

Compare motherboard PCB stack-ups, fine-pitch fabrication, assembly and release records, then prepare a manufacturing package for prototype and repeat builds.

A motherboard connects the main processing, memory, power and I/O functions of a computer or embedded system. HILPCB fabricates custom motherboard PCBs and provides assembly routes for fine-pitch BGA populations, application-specific stack-ups and selected materials. Specify whether the order is for a bare board, populated PCBA or integrated module so the quote includes the right sourcing, tooling and tests. Before fabrication, HILPCB can provide stack-up simulation and review, fast-turn and high-layer scheduling options when the build is eligible, and a dedicated order contact to coordinate fabrication, assembly, packaging, global shipment and records. HILPCB will handle design files and project information under an NDA or agreed confidentiality terms; schedule and combined process limits are confirmed for each order.

Industrial computers and high-end consumer devices may share interfaces while needing different lifecycles, cooling and mechanical constraints. Release those requirements with the layout before comparing prototype and production routes.

Visit our PCB Products Overview or explore advanced categories like Backplane PCBs, IC Substrate Boards, High-Tg PCBs, and HDI PCB platforms.

How HilPCB Builds Complex Motherboard PCBs

We support multilayer motherboard PCB designs that require:

  • Application-specific layer counts: the high-speed route lists 2–20 standard layers and reviewed builds up to 48; an 8-, 12- or 20-layer motherboard is selected from its escape, reference and power requirements
  • High-Tg or low-loss dielectrics where reflow, mechanical behavior or the channel-loss budget requires them; specify the exact grade and construction
  • Controlled impedance for the selected DDR4/DDR5, PCIe and USB devices: ±10% standard or reviewed ±5% on the high-speed route, with agreed geometry and coupons
  • Via-in-pad, blind/buried vias and back-drilled structures where package escape or stub analysis justifies them
  • Hybrid stack-ups for thermal, mechanical, or shielding needs
  • Reviewed copper weight and current paths for VRM regions, including vias and connector bottlenecks; thicker copper must remain compatible with the fine-line construction

Embedded computers, workstations, AI accelerators and industrial motherboards can use these routes in different combinations. Confirm material, thickness, copper and via structure together rather than combining each advanced limit into one assumed build.

Engineering and Stack-up Support for Custom Motherboards

Every custom motherboard PCB has unique routing rules, layer assignments, and material constraints. At HilPCB, we offer pre-fabrication services to optimize your design before manufacturing begins:

Engineering Services Description
Stack-up and impedance review Define copper/dielectric thickness, material grade, target geometry and coupon method; agree any modeling scope before release
DFM review Check trace/space, drill registration and capture, anti-pads, solder mask, via fill/cap and panel constraints
Material guidance Compare specified Isola, Shengyi, Panasonic, Rogers or approved alternatives using frequency/method, availability, reflow and construction data
Critical tolerances Supply device-specific timing/skew and impedance requirements plus connector, mounting-hole and board-outline datums
Current and cooling review Identify VRM/load currents, power map, package thermal pads, sink/TIM and airflow conditions; define any thermal evaluation scope

For example, a denser BGA may require a different escape structure, while a longer PCIe path may need lower loss or stub treatment. A higher Tg does not solve either problem by itself. The stack-up decision should identify the constraint being addressed and the fabrication or test evidence needed to accept it.

Assembly, Logistics, and Post-Sales Assurance

As a full-service motherboard PCB manufacturer and assembly provider, we cover:

  • SMT for BGA, QFN and CSP packages, with footprint, stencil, thermal-pad and hidden-joint inspection review
  • Mixed assembly (SMD + THT) with selective soldering
  • Reflow profiling for the actual board thermal mass, package exposure limits and side sequence
  • Programming, electrical/FCT options and fixture work to the quoted coverage and customer acceptance procedure
  • Packaging and international shipment terms matched to the assembly, ESD/moisture requirements and destination
  • Quoted payment, delivery and sourcing responsibilities for the order

Use our Gerber Viewer to inspect layer artwork and the 3D Viewer for supported model review. Include the controlled stack-up and mechanical drawings in the manufacturing package so layer appearance and model views are tied to released dimensions and materials.

Reliability Matters, From Prototypes to Scale

Telecom, medical, aerospace and industrial-automation programs can impose different lifecycle, material and evidence requirements. State the applicable customer specification, workmanship/fabrication class and revision, environment and release plan. Available controls include:

  • Bare-board AOI/electrical testing and assembly SPI/AOI, with selected X-ray for agreed hidden-joint locations
  • Lamination and registration controls for HDI stack-ups
  • IPC Class 2 or Class 3 fabrication/assembly acceptance where applicable, with the relevant document, revision and project requirements identified
  • Agreed first-article, material/lot, reflow-profile, inspection, programming and ICT/FCT records, with format and delivery defined at quotation

We also work alongside customers developing backplane-to-motherboard combinations, where signal integrity and mechanical alignment must be precisely matched.

Prepare a Motherboard PCB or Assembly Inquiry

Send the fabrication/drill files, stack-up and impedance table, BOM with approved part numbers and alternates, placement data, assembly drawings and quantities. Highlight BGA pitch, via-in-pad/fill, high-current paths, critical connector/mechanical datums, heat-sink mounting and the intended board environment.

For a populated motherboard, include the released firmware/BIOS or FPGA image, programming instructions, CPU/memory or other customer-supplied devices, host fixture and pass/fail criteria. HILPCB’s turnkey assembly supports sourcing and PCBA work, with kitted or partial-turnkey options where your team controls selected parts. Box-build integration can add the approved enclosure, harness and cooling arrangement.

Ask the quote to identify the eligible construction, material/sourcing risks, first-article gate, inspection/test coverage and required records, alongside tooling, schedule and delivery terms. That gives a prototype and its repeat orders a consistent configuration and acceptance basis. Arrange any required NDA before transferring controlled design files.

Frequently Asked Questions

What do computer circuit board, mainboard pcb, and pcb computer mean?

A motherboard, mainboard or system board is the primary board connecting a computer’s processing, memory and I/O functions. It may use a CPU socket and expansion slots, or soldered processors and memory in an embedded design. “Computer circuit board” is broader: graphics, storage and power boards are also circuit boards inside a computer. Terms such as “PCB computer” are informal, so identify the actual board and whether the order covers the bare PCB or assembled PCBA.
