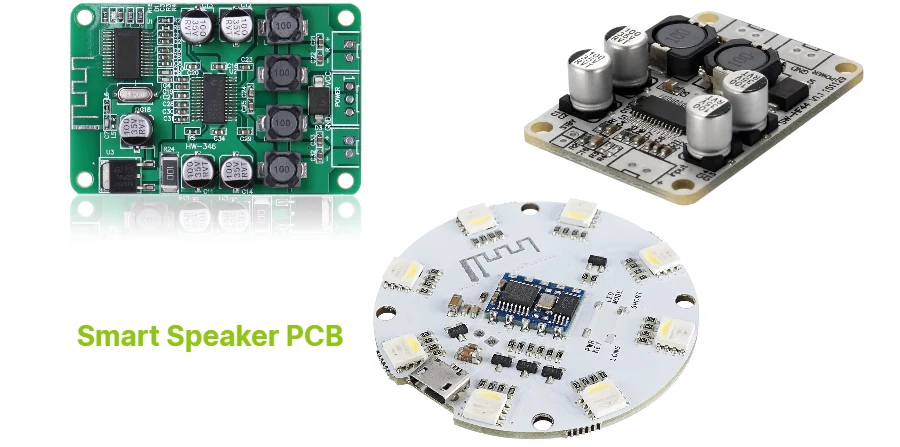

A smart speaker PCB connects microphone capture, processing, audio output, connectivity and power. The right build depends on whether the product is mains- or battery-powered, uses cloud or local recognition, and acts as an audio player, smart-home controller or both. Those choices affect the board, enclosure, firmware and test plan together.
HILPCB provides fabrication and SMT/THT/turnkey assembly for the released design, with approved sourcing, programming, inspection and defined electrical/functional tests. Bring the microphone/driver and wireless-module requirements into the build review; acoustic performance and platform approval need a specified product configuration and responsible validation team.

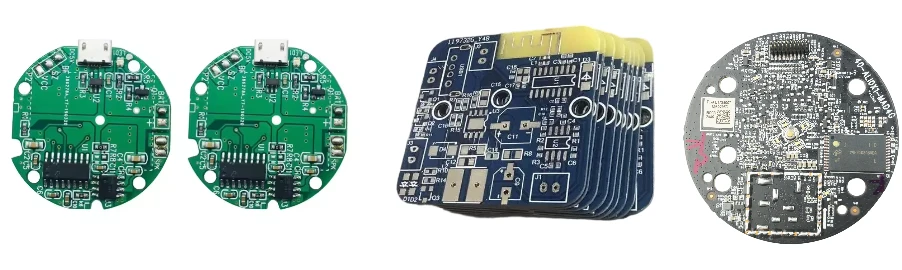

Smart Speaker PCB Architecture and Intelligent Audio Processing
Choose the required functions rather than including every processor or protocol:
- Connectivity: Wi-Fi and Bluetooth devices need the bands, profiles, antenna and host interfaces required by the product. Wi-Fi 6 and a “Bluetooth 5.x” label alone do not establish audio-profile or ecosystem support.
- Processing: A module, MCU/SoC or separate DSP can perform wake-word, echo cancellation, noise reduction and beamforming as its software permits. Multicore ARM or an AI accelerator is an architecture choice, not a requirement for every speaker.
- Smart-home control: Matter is an application/connectivity protocol over IP transports such as Wi-Fi, Thread and Ethernet; BLE can support setup. Zigbee is a separate protocol that may require a bridge. These control networks should not be assumed to carry a whole-home audio stream.
- Audio output: Select the codec/interface, Class-D amplifier, driver/load, protection and acoustic enclosure together.
- Microphones and interface: Define analog versus digital microphone connections, array geometry/ports, touch/buttons, LED ring/matrix and any proximity sensor.
TI’s smart-speaker architecture discussion illustrates microphone, processing, audio, power and interface trade-offs. The CSA Matter FAQ distinguishes the underlying transports and bridging, while Bluetooth SIG’s LE Audio FAQ separates LE Audio from Classic Audio support.
A 6–8-layer multilayer construction can be a candidate for a dense design, rather than a universal smart-speaker stackup. HILPCB’s multilayer route lists 4–12 layers standard and reviewed builds up to 64; choose the layers from fan-out, return paths, RF/clock routing, power and cost. Local wake-word recognition, local command interpretation and cloud services are different workloads; state which functions must remain available offline and the memory/power/security requirements.
Advanced Manufacturing for IoT Audio Devices
The fabrication and assembly review should connect the RF, audio and mechanical constraints:
- Wireless construction: Match the released module/antenna reference, stackup and copper keepouts. RF laminates are options when the loss/geometry requires them; a 2.4/5GHz module carrier does not automatically need a specialty substrate.
- Dense processing: HILPCB’s HDI route lists 75/75µm standard and reviewed 50/50µm trace/space with microvia/build-up options. Confirm package fan-out, fill/cap, stencil and inspection as one compatible construction.
- Signal and power integrity: Use interface-specific geometry for RF/digital links, continuous returns and separation from high-current switching paths. Low-frequency audio does not use one universal controlled-impedance target.
- Thermal/mechanical fit: Review processor/amplifier dissipation, connector loads, enclosure mounts and microphone/driver locations before panel and assembly release.
- Microphone handling: Identify acoustic ports, lands, gasket interfaces and solder/cleaning restrictions from the selected component instructions. Dust, paste, coating or cleaning material in the port can alter response or damage the device; protect the opening through assembly and inspection.
SMT assembly supports standard 0201 components and 0.4mm pitch; finer parts or BGA/CSP need package/process review. Turnkey assembly adds approved BOM sourcing and programming/defined tests. Specify the microphone/audio fixture, firmware, calibration procedure and required records; wireless certification and full acoustic/platform validation are separate program activities with assigned ownership.
Power Management and Connectivity Optimization
Define operating states and installed conditions before estimating power or thermal margin:
- Always-on voice: Budget wake-word capture/processing, radio state, memory, regulator quiescent current and any privacy/mute function. Lower-power standby must still meet the required wake/response behavior.
- Dynamic operation: Measure idle, playback, voice capture, simultaneous radio traffic and reconnect/update states at a common input-power boundary.
- Amplifier supply: Review load impedance, audio level, clipping/distortion limit, peaks, protection and supply droop. Class-D switching and speaker leads can create EMI; follow the selected amplifier layout/filter guidance and verify the actual enclosure/cabling.
- Heat: Model processor/amplifier dissipation with enclosure, ventilation and mounting. Thermal-board services can support a suitable power/thermal module and FEA/IR evaluation. Select its construction and cooling boundary for the actual power map and enclosure.
- Commercial power: Where PoE is selected, define the powered-device interface, isolation/power budget and audio load; otherwise review the actual mains adapter or battery/charger route.
- Coexistence: Include Wi-Fi/Bluetooth/control-radio activity, clocks, converter noise and microphone front-end behavior in the validation configuration. Antenna placement and uninterrupted returns matter alongside any firmware coexistence mechanism.
Smart Speaker PCB Applications and Market Segments
Smart Speaker PCB technology serves diverse IoT and audio market segments:
- Voice Assistant PCB for Premium Smart Home Hubs with Multi-Room Audio
- WiFi Speaker PCB for Portable and Battery-Powered Speakers with Voice Control
- IoT Speaker PCB for Commercial and Enterprise Audio Systems
- AI Speaker PCB for Advanced Home Automation with Local Voice Processing
- Wireless Speaker PCB for Outdoor and Rugged Smart Speakers
- Alexa Speaker PCB and Google Assistant PCB for Customer-Selected Platform Programs
- Smart Home Audio PCB for Built-in and Architectural Audio Solutions
- Voice Control PCB for Appliances and IoT Device Integration
Whole-home audio needs a defined transport, buffering and synchronization scheme; adding a mesh control radio does not establish synchronized audio. Local processing can reduce cloud dependence for specified functions, while privacy also depends on firmware, storage, accounts and data handling. Personal audio products share codec/amplifier concerns in a smaller assembly; see headphones PCB considerations.
Comprehensive Ecosystem Solutions for Smart Speaker Development
HILPCB can review the approved component and mechanical package through the physical build workflow. Define which items the customer supplies, which are sourced, and which engineering/validation tasks remain with the platform or product team.
Wireless connectivity and control:
- Approved Wi-Fi/Bluetooth, Zigbee/Thread/Matter or cellular module/host parts, with exact model, antenna and firmware
- Required controller, bridge or border-router roles and provisioning/identifier ownership
- Module approval conditions and final-product RF/EMC test responsibility
Audio and voice components:
- Microphone array, analog codec or digital interface and clock requirements
- Processor/DSP software image and approved settings
- Class-D amplifier and speaker driver/load, harness and protection
- Enclosure/chamber drawings, gasket/seal and microphone-port alignment supplied for integration review
Smart-home integration:
- Customer-selected Alexa, Google Assistant or other platform requirements and current approval/eligibility conditions
- Released protocol stack, cloud/device-management and mobile-app interfaces supplied by the responsible software team
- Manufacturing programming, configuration and test steps agreed with that team; a fitted module alone does not grant whole-product ecosystem approval
Supporting Hardware and Mechanical Integration
Enclosure and electrical integration can drive the assembly route as strongly as board density.
Environment and mechanics: Define any target IP54/IP67 enclosure test, port membranes/gaskets, mounting, temperature and vibration conditions for outdoor, portable or automotive installations. Review conformal-coating exclusions around microphones, antennas, contacts and sensors. A coated PCB alone does not establish the complete product’s ingress rating.
User interface: Include touch surfaces, LED ring/matrix, capacitive/mechanical buttons and proximity sensors in the mechanical drawings and functional procedure. Confirm alignment, light paths, harness polarity and any acoustic interference from the user interface.
Power and charging: USB-C, wireless charging, PoE, battery management and solar-input options require the selected source/interface, load, protection and enclosure information. For portable/outdoor speakers, include battery/charger restrictions, peak audio demand and the actual available solar/adapter energy rather than assuming extended runtime from a charging feature alone.
HILPCB’s box-build route can connect boards, enclosure/harness assembly, defined programming/test, labels and packaging when those items belong in the order. Provide the drawings, approved components, assembly instructions and test fixtures/procedures needed for the specified integration.
Why Choose HILPCB for Smart Speaker PCB Manufacturing
For projects that need it, HILPCB can support wireless and antenna optimization, voice-processing and acoustic design, and calibration assistance. RF, voice, wake-word, noise and multi-device tests, as well as platform pre-compliance or certification support, can be scoped with the responsible platform and software owner. HILPCB can also support project-defined IoT protocol-stack development and integration and mobile control/configuration app development. Cloud connectivity and device-management platform support can be scoped to the approved platform and software responsibilities; platform ownership and licensing remain with the responsible owner. Board assembly does not itself certify a component or guarantee recognition, privacy, range or final-product approval.
HILPCB connects the RF/HDI or multilayer construction with approved sourcing, SMT/THT, firmware programming and defined inspection/test records. The useful handoff ties the BOM/board revision, stencil/profile, microphone handling, module configuration and test limits to the same pilot assembly. Available first-article, profile, selected inspection, programming, ICT/FCT and lot records can be scoped in the quotation.
For an inquiry, send Gerber/ODB++, drill/stackup data, BOM/AVL/CPL, quantity and target build stage. Add microphone and speaker/enclosure drawings, antenna keepouts, power/audio operating states, firmware/configuration and any calibration/provisioning procedure. State audio levels, microphone/channel checks, radio/coexistence conditions, fixture ownership and required records. HILPCB can review a compatible fabrication, assembly or box-build route and the open items that must close before pilot/repeat release.
Frequently Asked Questions About Smart Speaker PCB Design and Manufacturing
What are the main technical challenges in a voice-assistant PCB?
Microphone capture during playback, echo/noise processing, radio coexistence, peak audio power and heat must work in the installed enclosure. Define ports/gaskets, microphone/driver geometry, clock/return paths, firmware and required voice behavior together; board assembly alone does not determine recognition accuracy.
How is reliable Wi-Fi and voice operation verified?
Use the released antenna/enclosure, firmware and microphone paths. Define network/reconnect/coexistence conditions, audio stimulus and level, voice/noise scenarios, limits and records. HILPCB can quote defined board/assembly tests and programming; environmental room coverage, speech performance and platform validation need their assigned procedure and team.
What is needed for an Alexa or Google Assistant product build?
Confirm the customer’s selected platform and current program conditions with its provider. Supply the approved module/processor, software, security/provisioning requirements and acoustic/RF test plan. HILPCB’s manufacturing scope can cover the released physical build and defined configuration/tests; a component approval or IPC workmanship class does not replace final-product platform approval.
Can consumer and commercial audio assemblies use the same manufacturing route?
They can share fabrication/SMT/THT and sourcing processes, while their actual components, enclosure and acceptance differ. Home hubs, portable/outdoor products, built-in audio, appliance voice interfaces, intercom/public-address and enterprise systems need their own power, mounting, connectivity and functional scope. Automotive or healthcare use also requires the relevant customer qualification and program controls.
