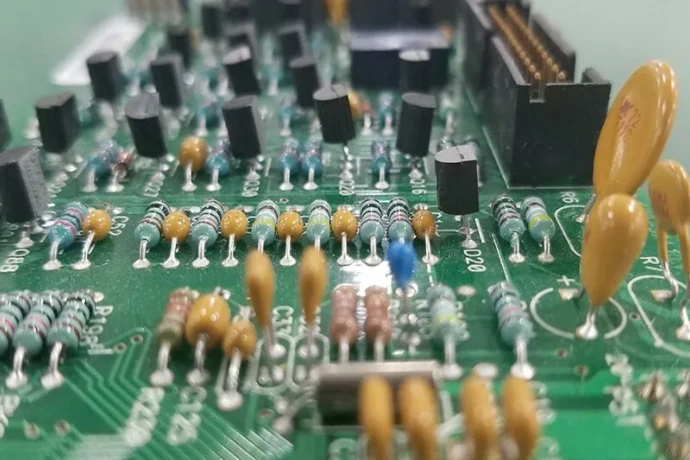

Through-Hole Soldering for Power and Cooling PCBAs

Through-hole soldering supports power connectors and heavy components when current paths, mechanical support, hole geometry, solder access and thermal profiles are designed together.

Through-hole soldering is useful for power connectors, transformers, bulk capacitors and other leaded components when the assembly needs mechanical retention or a suitable current path through the board. It does not provide a current rating or a thermal advantage by itself. The lead, contact, plated barrel, copper connection and cooling conditions must all support the load.

Power supplies and cooling controllers often combine THT/through-hole soldering with SMT assembly. The practical challenge is to solder high-thermal-mass joints without overheating nearby parts, then verify the finished assembly at its intended current and mechanical load. Set those conditions before committing the PCB layout and assembly route.

Where Through-Hole Components Help Power Distribution

A power distribution network (PDN) must deliver the required voltage during steady load and transients. Bulk capacitors, inductors, terminals and power modules can use either THT or surface-mount packages. Select the component by its electrical and mechanical ratings, then design a manufacturable connection.

  1. Current path: Check the component or connector's derating data, pin cross-section, finished-hole size, barrel plating and copper neck-downs. Current entering a plated hole can reach connected inner and bottom layers, but the narrowest or hottest element still limits the path. Compare measured temperature rise at the intended current; a generic SMT package size or THT pad cannot establish a safe ampere rating. For example, an assumed 20 A path with 2 mΩ total resistance dissipates I²R = 0.8 W. That calculation identifies a heat source; it does not prove that the connector or joint can tolerate it.
  2. Mechanical retention: Leaded connectors and heavy components can benefit from through-board attachment. Use mounting pegs, brackets or chassis support where insertion force, cable pull or component mass would otherwise load the solder joints. Validate the actual shock, vibration and mating-cycle requirements rather than assuming THT joints are a fixed multiple stronger than SMT.
  3. Heat flow: A component's leads, tab and case provide different thermal paths. A THT power package intended for a heatsink may reject most heat through its case; an SMT package with an exposed pad may transfer heat effectively into PCB copper. Use the package thermal model and mounting instructions to select copper spreading, thermal vias or a heatsink. High Thermal PCBs are an option when the substrate or isolation layer is the thermal bottleneck, rather than a universal improvement for every power board.

PDN Impedance Targets and THT–SMT Decoupling

Set a rail's target impedance from its allowed voltage excursion and load-current change: Ztarget ≈ ΔV / ΔI. As a first-pass example, a 50 mV allowance for a 10 A step gives 5 mΩ. Allocate that voltage budget among DC drop, regulator response, capacitor ESR and interconnect inductance; the load's actual transient specification controls the final design.

  • Bulk energy and regulator response: Large electrolytic or polymer capacitors support slower load changes while the regulator responds. THT and SMT options both exist. Compare capacitance under operating conditions, ESR, ripple-current rating, lifetime and mounting constraints.
  • Board-level decoupling: Low-inductance MLCC connections near load pins support faster current changes. Select values using the device vendor's recommendations and a model that includes DC-bias effects, ESR, ESL and mounting inductance. Mixing values does not automatically flatten impedance; parallel branches can create anti-resonance peaks.
  • Package and plane response: At higher frequencies, package/on-die capacitance, plane geometry and short return paths become increasingly important. The crossover frequencies depend on the component models and interconnect, so do not assign fixed frequency bands solely by THT versus SMT packaging.

Throughout the NPI EVT/DVT/PVT (New Product Introduction) phases, PDN validation is a core task. During the EVT (Engineering Verification Test) phase, engineers use vector network analyzers (VNAs) to measure actual impedance on prototype boards and compare it with the simulated impedance-versus-frequency curve to verify design compliance. In the DVT (Design Verification Test) phase, more rigorous load transient tests are conducted, using electronic loads to simulate worst-case current steps (dI/dt) while observing voltage droop (Vdroop) and overshoot to ensure the collaborative THT-SMT strategy performs effectively in real-world conditions.

⚡ PDN Design and Verification Implementation Process

From target impedance definition to physical verification, ensuring the integrity of the Power Delivery Network (PDN).

1
Requirement Definition and Budgeting

Define the power-rail target impedance from allowable ripple and transient-current spectrum (without assuming a universal 1 mΩ limit) and allowable voltage ripple/transient droop.

2
Component Selection and Modeling

Combine THT high-capacity capacitors with SMT ceramic capacitors using vendor SPICE or S-parameter models with mounting parasitics.

3
Multi-Dimensional Simulation Modeling

Perform frequency-domain (impedance) and time-domain (transient) simulations using professional tools, including PCB parasitic parameters.

4
Physical Layout and Routing

Follow the "shortest path" principle, place decoupling capacitors close to loads, ensure plane integrity, and minimize loops.

5
Prototype Validation and Iteration

During NPI phase, use VNA for impedance measurement and oscilloscope for transient testing, then iterate by comparing actual measurements with simulations.

6
Production Import and Standardization

Complete FAI, validate critical process parameters such as THT soldering, and solidify standards into SOPs.

Transient Loads: Calculate the Connection Penalty

Load steps stress both the regulator and the local interconnect. For an illustrative 10 A change in 1 µs, an assumed 5 nH current loop contributes V = L × dI/dt = 50 mV before accounting for resistance and capacitor response. Shortening the supply-and-return loop can therefore matter as much as adding capacitance. This is a calculation example, not a processor specification or a measured HILPCB result.

Bulk capacitors, nearby MLCCs, package capacitance and the regulator respond together according to their impedances. They do not take turns at universal nanosecond or microsecond boundaries. Simulate the rail, then apply the specified load step and measure droop, overshoot and settling with a suitable low-inductance probing arrangement.

  • Reduce mounting inductance: Keep capacitor and connector current loops short. A plated THT pin already connects to layers assigned to that net; additional vias help only where they improve the actual current or return path. Include their geometry in the model.
  • Balance copper and assembly access: Wide copper paths and planes reduce resistance. Heavy Copper PCBs, including 3 oz and thicker options, can help when copper cross-section limits the design, but thicker copper does not by itself guarantee low loop inductance. It also increases soldering thermal mass and affects etching and spacing requirements.

Thermal Relief, Solder Access and Conformal Coating

A power joint must conduct current in service and reach a solderable temperature during assembly. A direct plane connection improves electrical conduction but can draw heat away from the barrel during soldering. Thermal-relief spokes reduce that heat sinking, at the cost of added electrical resistance and a narrower current path.

  • Select the connection deliberately: For a high-current connector or power lead, compare a direct connection with relief geometry using current, temperature-rise and solder-profile results. Avoid a universal spoke width or count. Check whether internal planes make the top of a thick board difficult to wet, and leave room for selective-solder nozzles, pallets and nearby SMT parts.
  • Size the hole from tolerances: Use the maximum lead dimensions, finished-hole tolerance after plating, insertion requirements and required annular ring. For rectangular leads, check the diagonal. An oversized hole can make solder fill difficult; an undersized hole can damage the lead or barrel during insertion. Press-fit holes follow the connector manufacturer's specification and are not ordinary soldered-hole clearances.
  • Plan heat removal from the package: Add thermal vias or copper spreading where the device's thermal model calls for them. Verify electrical isolation before connecting a live device tab or drain to a heatsink or chassis. Via filling, plugging and solder-wicking controls should be specified when they affect the solder land or thermal interface.
  • Define coating coverage: Conformal coating can reduce exposure to moisture and contamination when selected for the environment and applied to a clean, dry assembly. It does not replace enclosure protection, electrical clearances or cleanliness control. Tall THT parts create shadowed regions; specify masking for connectors, test points and service areas, then inspect coverage, cure and thickness to the coating process requirements. Fluorescent UV inspection helps locate coverage gaps when the material supports it, but does not prove thickness or insulation performance.

💎 Key Points for THT High-Reliability Design and Manufacturing

Four design and process checks for THT solder joints before production release.

⚙ Precision Matching of Apertures and Pads

Set finished-hole dimensions from the lead envelope, plating and hole tolerances, insertion method and annular-ring requirement; confirm the resulting joint can be soldered.

🔥 Fine-Tuned Wave Soldering Process

Profile preheat, solder contact and cooling at the high-mass and heat-sensitive locations. Select wave, selective, robotic or hand soldering to suit access and volume.

💨 Strategic Application of Thermal Via Arrays

Use thermal vias where the package-to-board heat path benefits; define via filling or plugging when solder wicking or the thermal interface requires it.

💦 Conformal Coating Coverage

Inspect specified coating coverage around tall components and pin roots; mask connectors, test points and other defined keep-outs.

NPI Validation: Solder Fill, Support and Functional Test

HilPCB offers automatic component insertion and IQC, FAI, AOI, X-ray and FCT services for the agreed build. Engineering support includes PDN, thermal and DFM/DFT work, custom ICT/FCT fixture development, and conformal coating or potting when specified. Release acceptance follows the ordered class, finished-hole evidence, solder profile and actual load; no universal THT current or lifetime advantage is implied.

During NPI EVT/DVT/PVT, use first articles to close the risks identified during layout and route review. Record the solder alloy and flux, thermal profile at difficult joints, board support, component orientation and inspection criteria. Recheck the profile when copper construction, component mass or the soldering route changes.

First Article Inspection (FAI) should assess solder wetting, barrel fill, pin protrusion, bridges and mechanical fit against the contractually specified IPC-A-610 and J-STD-001 editions, class and applicable exceptions. A single percentage is not a complete acceptance rule. Visual inspection covers accessible surfaces; X-ray sampling or cross-sections can address hidden barrel-fill questions according to the agreed plan. Cross-sections are destructive, and neither inspection method demonstrates operating-current capability by itself.

For a power connector, separate the release decisions: verify the soldered joint, measure voltage drop and temperature rise at the defined load, and check the required mechanical retention. For a fan or pump controller, add start-up, stalled-load protection and commanded-speed response where these belong to the product test specification. Define who owns these tests and which results must accompany the build.

In the mass production phase, automated testing becomes the foundation of efficiency and quality. This requires precise Fixture Design (ICT/FCT). PCBA with numerous THT components presents unique challenges for test fixture design:

  • Height Avoidance: Tall electrolytic capacitors, heat sinks, and connectors create "no-fly zones" for test probes. Fixture design must accurately model the 3D contours of these components, incorporating slots, cutouts, or longer probes to navigate around obstacles.
  • Probe Stability: THT solder joints are typically larger and uneven, demanding higher contact stability from test probes. Crown or spear-tipped probes may be required to ensure reliable contact across varied surfaces.
  • Support and Anti-Warping: The weight of THT components can cause PCB deformation during testing, affecting probe contact. An optimal Fixture Design (ICT/FCT) solution must include sufficient support pillars on the PCB underside, especially in high-stress areas, to maintain board flatness.

A well-designed test fixture is the prerequisite for high-coverage, high-stability in-circuit testing (ICT) and functional testing (FCT), serving as the final defense to check specified assembly-level functions and support acceptance decisions. HILPCB’s Through-hole Assembly Services include route review and inspection/test planning for the actual THT population, access constraints and acceptance criteria.

Choose the Assembly Route Before Releasing the Board

HILPCB supports wave, selective, robotic and hand-soldering routes for through-hole and mixed-technology assemblies. Broad THT populations may suit wave soldering with a suitable pallet; a few power connectors beside bottom-side SMT may suit selective soldering. Odd-form parts and low-volume builds may justify robotic or hand soldering. These choices change fixture cost, access requirements and repeatability, so compare them before fixing component locations.

For an assembly review, send the fabrication data, BOM and placement files, connector and power-component datasheets, assembly drawing, underside component heights, target current and ambient conditions. Flag heat-sensitive parts, allowed solder alloys, coating/masking requirements and the required acceptance class. Include test access and the functional test procedure if the quotation includes Fixture design (ICT/FCT).

Ask the quotation to identify the proposed soldering sequence, pallet or fixture needs, joints requiring profile or fill validation, and inspection/test scope. If component sourcing is part of the project, Turnkey PCBA Assembly combines BOM procurement with the fabrication and assembly handoff. Product thermal, safety and environmental qualification still needs the power-supply or cooling-system manufacturer's defined limits and validation.

A useful first build resolves the difficult joints before volume production: approved hole and relief geometry, a reproducible solder profile, agreed inspection criteria and test results at the intended load. Those outputs make the next build easier to release and quote.
