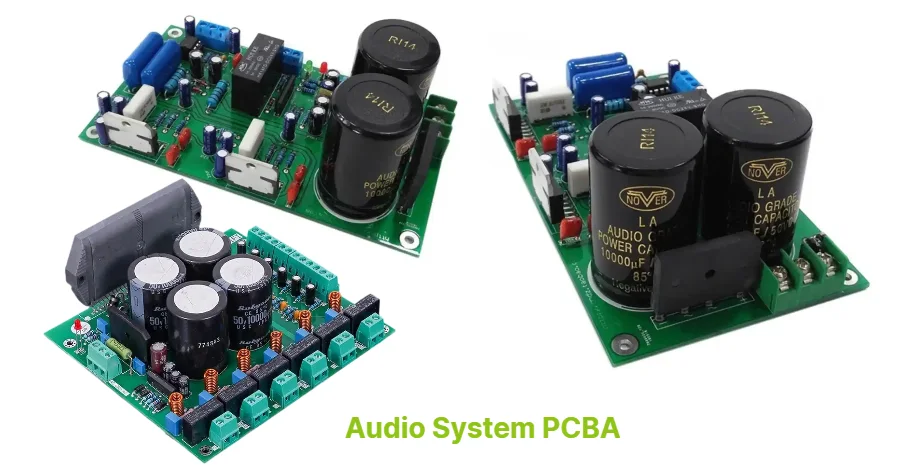

Selecting an Audio System PCB supplier requires more than confirming fabrication capability. Engineers and procurement teams should decide whether a manufacturer can control the three factors that determine audio product risk: signal integrity, thermal reliability, and production evidence. Before awarding a build, review the PCB layer structure, grounding approach, material selection, assembly controls, and verification data such as impedance reports, electrical testing records, and thermal validation.
A high-fidelity audio PCB must preserve low-level analog signals while managing high-power amplifier stages, digital interfaces, wireless communication, and thermal loads. The supplier should preserve the released stackup, geometry and assembly controls; the product team verifies noise, distortion and temperature on the populated design. A low-noise DAC board and a high-current Class-D stage need different evidence.
What should engineers evaluate before selecting an Audio System PCB manufacturer?
Audio electronics combine sensitive analog circuits with high-speed digital and power sections. The PCB architecture directly affects noise floor, distortion, EMI behavior, and long-term reliability.
A typical audio PCB may include:
- Class-AB or Class-D amplifier ICs
- DAC/ADC chips for digital-to-analog and analog-to-digital conversion
- Op-amps for preamplification and tone control
- LDO or switch-mode power conditioning circuits
- Bluetooth, Wi-Fi, and DSP modules for wireless and smart audio functions
The main engineering decision is whether the PCB structure provides enough separation between these functions. Many mixed-signal audio designs use multilayer stackups, though layer count should follow routing density, return-current control and EMC needs to separate analog routing, digital logic, and power distribution. Proper stack-up management reduces crosstalk and EMI while maintaining stable audio performance.
Use multilayer PCB construction when signal isolation, controlled return paths, or power distribution require additional routing layers. For many audio products, stackups range from simple two-layer boards to more complex multilayer layouts depending on circuit density and performance requirements.
FR4 PCB materials remain common for audio products because of mechanical stability and availability. High-Tg FR-4 may improve thermal margin for qualified soldering cycles and service conditions; Tg alone does not establish long-term product reliability.
Which PCB parameters create the highest audio performance risk?
The table below summarizes the engineering parameters that should be reviewed during supplier selection.
| Parameter | Design input to specify | Audio performance risk | Evidence to request |
|---|---|---|---|
| Layer count | Compare two-layer or multilayer candidates from routing, references and density | Poor return paths or placement can couple power/digital noise into analog inputs | Approved stackup and layout/DFM review |
| Heat path | Package thermal pad, copper/vias, TIM, heatsink and enclosure ambient | A high-conductivity material cannot compensate for a poor contact or package connection | Temperature measurements under a defined signal, load and supply |
| Output stage | Channel count, load impedance, supply and continuous/peak duty | Shared power paths and narrow connectors can cause drop, heating and EMI | Current-path review and populated-amplifier load test |
| Digital audio | Selected sample rates, word lengths, bus mode and clock source | Timing, reference noise or firmware mismatch can corrupt data or audio | Interface waveform/timing and end-to-end format validation |
| Temperature | Product ambient, device junction and assembly limits | A component qualification grade is not a complete board rating | Part/laminate data and product-specific environmental tests |
| Finish and contacts | Solder lands versus repeatedly mated connector fingers | A finish suitable for soldering may be unsuitable for contact wear | Finish/connector specification and assembly compatibility |
| Copper | Required finished thickness, path width and local neck-downs | Excess resistance increases heating and voltage loss | Fabrication drawing, finished-copper confirmation and load measurements |
| Dielectric properties | Exact grade where the actual digital/RF channel requires it | A generic FR-4 Dk cannot establish a USB/RF channel or an audio noise floor | Material data at relevant conditions and impedance evidence when specified |
How should engineers select an audio PCB supplier by application?
The matrix below distinguishes design concerns from supplier deliverables. Audio SNR and THD+N are measured at defined circuit or device operating conditions and cannot be inferred from a bare PCB stackup.
| Application | System-level concerns (not universal PCB acceptance limits) | PCB design focus | Evidence to request |
|---|---|---|---|
| Bluetooth speaker | Acoustic/electrical distortion, RF coexistence and battery runtime | Grounding, RF isolation and low-noise power distribution | Stackup, assembly inspection and agreed finished-device tests |
| Smart speaker | Microphone sensitivity, wireless performance and digital-noise coupling | Analog/digital partitioning and return paths | PCB inspection plus system EMC and audio tests where contracted |
| Hi-Fi DAC | Converter noise, distortion and clock quality at specified loads | Reference cleanliness, ground return and sensitive analog routing | Layout review and system SNR/THD+N measurements under stated conditions |
| Professional/studio audio | Interface integrity, dynamic range and noise at defined operating levels | Shielding, clock routing and balanced-signal return paths | Customer-specific electrical/audio validation and assembly records |
| Class-D amplifier | Output-stage switching EMI, supply transients and thermal rise | Output-loop layout, current paths and thermal spreading | Thermal analysis, current-path review and finished-amplifier measurements |
| Automotive audio | Vehicle EMC, vibration, temperature and product-specific quality requirements | Robust interconnects, power filtering, mechanical support | Approved vehicle-program qualification and PCBA inspection plan |
Use the matrix to define a project-specific RFQ: a PCB fabricator should provide agreed board-acceptance evidence, while audio SNR, THD+N and acoustic performance require an appropriate assembled-product test plan and measurement conditions.
How should analog and digital audio sections be separated on a PCB?
The layout strategy determines whether a PCB maintains clean audio reproduction or introduces unwanted noise.
Use the selected codec/DAC/amplifier reference design as the starting point:
- Place preamplifier, converter and switching-power/output sections so noisy currents do not flow through low-level input references.
- Follow the IC vendor’s analog/power/digital ground connections. A star point can help a particular power topology, but do not split every ground plane or force a digital return around a gap.
- Keep supply/return decoupling loops short and check regulator noise, stability and rejection at the frequencies that affect the circuit.
- Keep op-amp feedback and converter reference paths compact; guard or shield high-impedance nodes only where the actual circuit calls for it.
- Route balanced analog inputs as a matched pair where applicable, and maintain the required common-mode and protection behavior.
- Apply each digital interface’s own topology, timing and termination rules.
I2S is normally a single-ended clock/data bus, not a differential pair. Check bit/frame clock, data setup/hold, edge rate and return paths against the selected devices. USB uses differential routing; S/PDIF may use a coaxial electrical or optical interface with different requirements. Sample rate and bit depth are component/firmware capabilities, not PCB fabrication ratings. Avoid treating all “digital audio” traces as one impedance target.
High-gain amplifier sections should not share uncontrolled current return paths with low-level analog inputs. Ground-plane planning, power filtering, and component placement should be reviewed before fabrication.
What manufacturing processes matter for high-fidelity audio PCBs?
Audio PCB production requires consistent fabrication and assembly controls because small manufacturing variations can affect performance.
A production-ready audio PCB process commonly includes:
- The released two-layer or multilayer construction with its approved materials and finished geometry
- Tight trace and space control based on design requirements
- A finish selected for solderability and storage; repeated connector contacts need their own plating and wear specification
- SMT assembly for op-amps, DSPs, and microcontrollers
- Through-hole insertion and wave, selective, robotic or hand soldering for the actual connector/capacitor population, with access and thermal review
Turnkey assembly can include BOM procurement, firmware loading and agreed functional tests when the programming data, fixture, stimulus and limits are supplied. For complete audio products, turnkey assembly and box-build assembly support can integrate PCB assemblies into speakers, wall panels, and head units.
Which PCB assembly option is best for audio production volumes?
| Manufacturing approach | Best fit | Engineering consideration |
|---|---|---|
| PCB fabrication only | Teams with internal assembly capability | Requires separate SMT sourcing, testing, and logistics management |
| PCB plus SMT assembly | Audio modules, amplifier boards, DAC boards | Requires validated BOM, assembly drawings, and test requirements |
| Turnkey assembly | Products requiring procurement and production coordination | Supplier must manage BOM availability and firmware/system testing |
| Box-build assembly | Finished speakers, wall panels, and complete audio equipment | Requires enclosure, wiring, and final functional integration |
The correct option depends on whether the primary risk is PCB fabrication, component sourcing, assembly consistency, or final product integration.

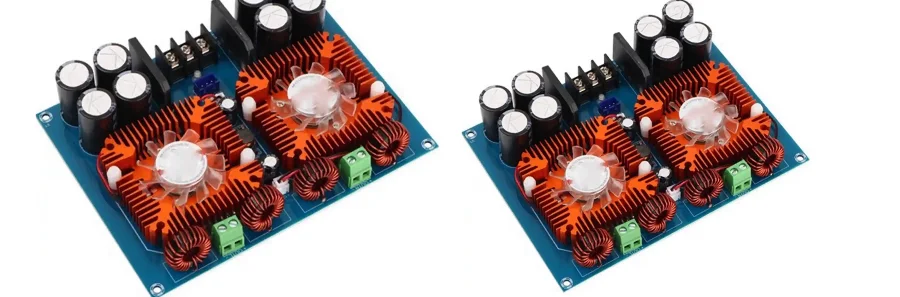

How do thermal design and power delivery affect amplifier PCB reliability?
Power amplifier boards create concentrated thermal loads, especially in sustained-output tests. Calculate loss at the actual signal, load and supply conditions; the loudspeaker output rating is not heat dissipated in the amplifier.
For an explicitly assumed 20 W total output and 90% amplifier-stage efficiency, input power is 20/0.90 ≈ 22.2 W and amplifier-stage loss is about 2.2 W. This is a budget example, not a measured product result. Include regulator, DSP and other losses outside the chosen measurement boundary; avoid counting idle or filter loss twice if it is already included in the efficiency figure. Efficiency varies with output level and operating mode, so check the relevant device curves rather than using the same value at idle and full output.
Class-D amplifier designs often require:
- Copper pours for heat spreading
- The manufacturer’s thermal-pad/via construction for board-cooled packages; account for solder wicking and fill/capping where required
- Adequate copper thickness for power paths
- Component placement that separates heat sources from sensitive analog circuits
High thermal PCB solutions are used when standard materials cannot provide sufficient heat management. Thermal analysis should verify temperature rise under operating load rather than relying only on theoretical calculations.
For automotive and industrial products, use the actual mounting location, ambient, mission profile and customer requirements for environmental tests. An IC qualified for −40°C to +125°C does not assign that range to the populated PCB, connectors or enclosure.
What audio PCB applications require different design decisions?
Audio PCB requirements vary significantly by product type.
Common examples include:
- 2.1 channel desktop amplifiers with BT/USB/line-in switching
- Smart speakers with Wi-Fi streaming and voice interfaces
- Professional rack-mount DAC modules with I2S + SPDIF
- Multi-zone wall amplifiers for home audio distribution
- Multi-channel automotive Class-D head units, with output power defined at a stated supply, load and distortion limit
- Karaoke systems with dual-mic and reverb mixing ICs
A consumer Bluetooth speaker prioritizes size, power efficiency, and wireless integration. A professional DAC module prioritizes noise performance, clock stability, and interface integrity. An automotive amplifier prioritizes thermal endurance and environmental reliability. Personal audio products such as headphone PCBs and true wireless earbuds add tighter space, battery, and antenna constraints.
What files and specifications should be included in an Audio PCB RFQ?
A complete RFQ package reduces manufacturing ambiguity and allows suppliers to provide meaningful technical feedback.
Submit:
- Gerber fabrication files
- PCB drill files
- Via drawing
- PCB stackup requirements
- Layer count requirements
- Material specifications
- Copper weight requirements
- Board thickness requirements
- Assembly drawings
- Pick-and-place files
- Bill of Materials (BOM)
- Component sourcing requirements
- Schematic files when design review is required
- Test requirements
- Firmware loading requirements if applicable
Agree the requested deliverables before ordering; list the sample plan, acceptance limits, test owner and any fixture charges. Useful evidence can include:
- PCB stackup confirmation
- Material datasheets
- Fabrication capability confirmation
- Cross-section analysis where it addresses the specified fabrication risk
- Controlled impedance report when required
- Amplifier thermal results at the specified signal, duty, supply, load and enclosure condition, where contracted
- Electrical test records
- Functional test procedure
- Audio verification data such as THD+N measurement, frequency response, SNR testing, and crosstalk analysis when applicable
How does Audio System PCB testing verify production quality?
Audio electronics require verification beyond visual inspection. Define frequency, amplitude, supply, gain, channel state, load, measurement bandwidth/weighting and firmware for audio tests. THD+N and SNR numbers with different conditions are not comparable. For bridge-tied-load outputs, use a suitable differential analyzer/load connection; do not assume one speaker terminal is signal ground.
Testing may include:
- In-circuit testing (ICT)
- Functional verification
- Impedance control validation
- Frequency response testing
- THD+N measurement
- Signal-to-noise ratio testing
- Crosstalk analysis
- Temperature cycling
- Humidity resistance testing
- Vibration testing
- EMI/RFI compliance testing
For wireless and digital audio products, verification should also cover communication interfaces including Bluetooth, Wi-Fi, USB Audio, SPDIF, and I2S.
Why do audio manufacturers choose HILPCB for custom Audio System PCB projects?
HILPCB supports audio programs from prototype through scaled production, with layout review, stackup optimization and thermal and assembly-integration engineering for consumer, professional and embedded products. SNR, THD+N, driver contact and thermal results are assessed on the agreed assembly, fixture and operating conditions.
HILPCB supports fabrication, SMT assembly, mixed through-hole assembly and turnkey sourcing/build coordination for audio boards. The SMT service lists SPI/AOI and selected hidden-joint X-ray, plus customer-defined programming and electrical test routes. Define the package risks and deliverable records with the quotation.
For a DAC, amplifier, Bluetooth speaker or intercom build, add exact codec/amplifier/radio part numbers, channel/load requirements, quiet-input references, thermal interfaces and output-connector data to the fabrication/BOM/placement package. Include the approved audio test procedure and fixture/firmware access when tested assemblies are requested. Ask the quote to identify open DFM items, component substitutions, assembly/box-build scope and audio-test costs so purchasing compares the same delivered board or product.
Audio System PCB Frequently Asked Questions
What digital audio formats can an Audio System PCB support?
Analog interfaces may include balanced or unbalanced XLR/TRS arrangements and normally unbalanced RCA; follow the actual circuit and connector wiring. Digital interfaces may include I2S, SPDIF, USB Audio, Bluetooth, and Wi-Fi streaming. If the product needs rates such as 44.1, 48, 96 or 192 kHz, 32-bit words or DSD, verify that the converter, clocking, host interface and firmware support the requested mode. Those are system configurations, not board-material ratings.
What testing should be requested for a high-fidelity audio PCB?
Request electrical testing, functional verification, impedance validation, and audio performance testing. For audio products, THD+N measurement, frequency response, SNR testing, and crosstalk analysis provide direct evidence of signal quality.
Are automotive audio PCBs different from consumer audio PCBs?
Their requirements follow the vehicle location, customer specification, EMC, supply disturbances, vibration, temperature and quality-system scope. An automotive IC temperature grade or ENIG/OSP finish does not qualify the complete audio board. Define the board and assembled-system tests for that vehicle program.
What manufacturing documentation should accompany production audio PCBs?
Release the approved fabrication, BOM, placement, assembly and test revisions as production inputs. Agree which material/lot references, electrical and inspection records, firmware/calibration identifiers and audio-test results accompany each lot or unit. A complete input package and a shipment evidence package serve different purposes.
Which PCB technology is suitable for amplifier and DAC products?
The correct choice depends on power level, board density, thermal requirements, and signal sensitivity. Two-layer or multilayer construction can be appropriate; select return paths, thermal features and assembly processes from the actual amplifier, DAC or wireless circuit.
Frequently Asked Questions
What should an amplifier PCB quotation identify?
It should identify the approved construction and copper, component-sourcing responsibility, SMT/THT sequence, thermal attachment, inspection, programming and agreed load/audio tests. Provide the supply, output load, channel count, signal conditions and pass/fail limits so a fabricated board is not confused with a validated amplifier assembly.
