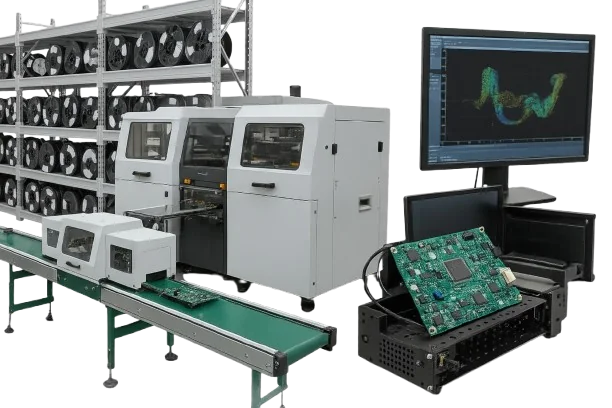

Turnkey PCB Assembly | BOM Sourcing to Box Build, Prototype to 1M+ Units
End-to-end turnkey assembly with BOM lifecycle control, authorized sourcing, ±8–25 μm (plus/minus eight to twenty-five micrometers) placement, 3D SPI/AOI/X-ray, and system-level testing. Seamless handoff to box build with MES traceability.
Turnkey Scope & Supply Chain Control Excellence
Single accountability from validation to volumeTurnkey assembly unifies component sourcing, manufacturing and testing into a single accountable workflow, eliminating multi-vendor handoffs that often introduce 15–25% (fifteen to twenty-five percent) schedule delays. Our early BOM scrub reviews lifecycle status, parametric equivalence and alternates; EOL alerts are typically issued 6–12 months (six to twelve months) before discontinuation to secure form-fit-function replacements or last-time buys.
All procurement flows through authorized distribution wherever possible; when constraints require brokers, we enforce authentication via XRF analysis, decapsulation and electrical screening per AS6081. Component traceability links supplier lots, date codes and certificates to the MES traveler record for each build.
Critical Risk: Disconnected sourcing and manufacturing often create visibility gaps—untracked alternates, mixed date codes or mismatched revisions—causing latent quality escapes and rework costs downstream.
Our Solution: We deploy AVL-controlled sourcing synchronized with ECO management across prototype, small-batch and large-volume assembly. Engineering changes are revision-controlled through our QMS and linked directly to traveler data for full backward traceability. FPY typically exceeds 98–99% (ninety-eight to ninety-nine percent), with DPPM below 500 (five hundred) on mature programs. Procurement, assembly and test all operate under IATF 16949 and ISO 13485.

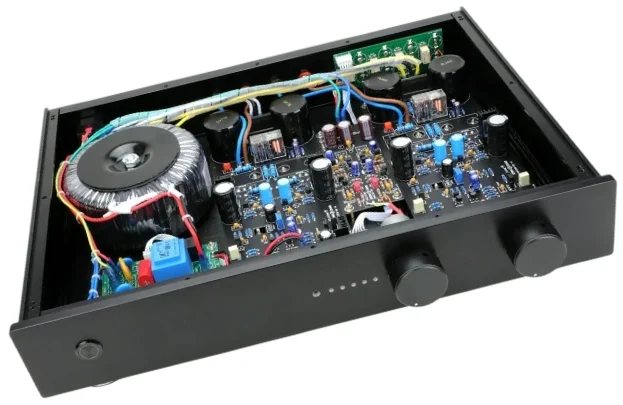

For final delivery, turnkey programs extend naturally into box build under the same quality umbrella, supporting supply chain visibility and customer audits. For design manufacturability alignment, see our DFM guidelines and ECO change control frameworks.
- BOM lifecycle monitoring with proactive EOL management
- Alternates qualification (typically 3–5 sources — three to five sources)
- Consolidated logistics and buffer-stock strategies
- Unified DFM/DFT reviews before commitment

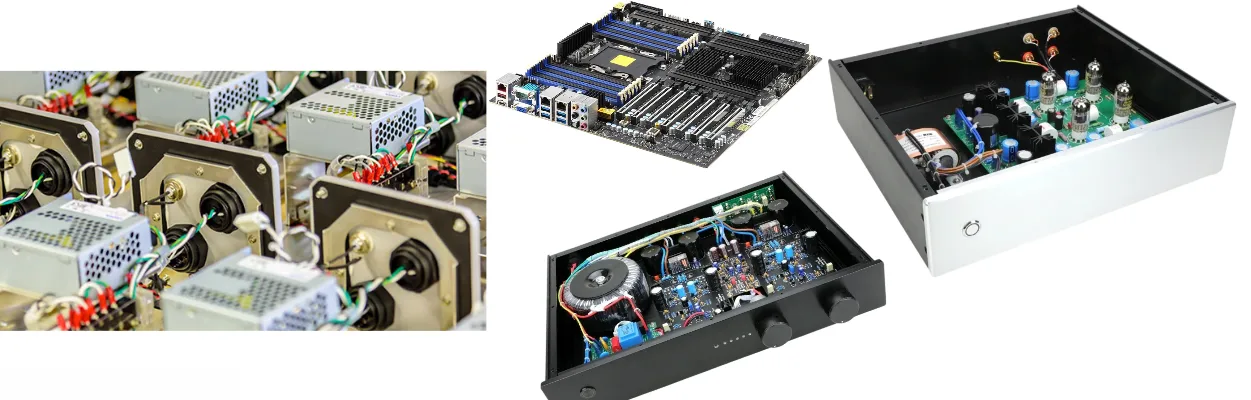

- Direct transition to box build after board-level validation
🚀 快速报价请求
🔧 获取完整制造能力
Process Control, Test Coverage & System Integration

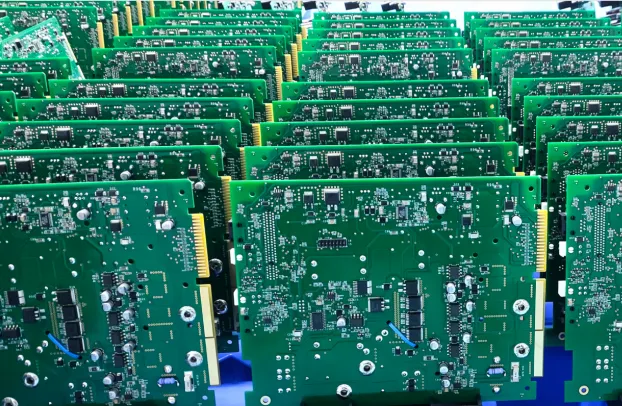

Print → Place → Reflow with multi-stage verification3D SPI holds paste volume within ±10% (plus/minus ten percent); placement vision checks maintain ±8–25 μm (plus/minus eight to twenty-five micrometers) accuracy. Reflow profiles (ramp, soak, TAL, peak) are logged for reproducibility. Post-reflow AOI and sample X-ray address hidden joints. For mixed-tech boards, we add through-hole via wave/selective solder with nitrogen to reduce oxidation by ~50–70% (fifty to seventy percent).
Test strategy blends ICT (manufacturing defects), flying probe (low-volume flexibility), boundary scan (digital), and functional testing at system level. When the design is stable, we scale to volume assembly or close the loop through box build with firmware loading and final configuration.
- 3D SPI/AOI with defect detection typically >95% (greater than ninety-five percent)
- Sample X-ray for BGA/QFN void criteria (≤25% — less than or equal to twenty-five percent)
- ICT/FCT/Boundary-scan planning at NPI
- Conformal coating 25–75 μm (twenty-five to seventy-five micrometers) when specified
- Unit-level serialization with MES traveler records
Turnkey Assembly Technical Capabilities
From kitted builds to full box build integration
| Parameter | Standard Capability | Advanced Capability | Standard |
|---|---|---|---|
Service Type | Kitted / Partial Turnkey | Full Turnkey + Box Build | Service scope |
Assembly Types | SMT, THT | Mixed tech, PoP/SiP, fine-pitch BGA | IPC-A-610 / J-STD-001 |
Board Types | FR-4, Multilayer | Rigid-Flex, Flex, MCPCB, Ceramic | IPC-6012/6013 |
Component Size | 0201, 0.4 mm (zero point four millimeter) pitch | 01005, 0.2–0.25 mm (zero point two to zero point two five) BGA/CSP | IPC-7351 |
Placement Accuracy | ±25 μm @ 3σ (plus/minus twenty-five micrometers at three sigma) | ±8 μm @ 3σ (plus/minus eight micrometers at three sigma) | Machine spec |
Inspection | 3D SPI, 2D/3D AOI | X-ray (AXI), ionic cleanliness check | IPC-A-610 / IPC-CH-65B |
Testing | FCT (functional) | ICT, flying probe, boundary scan, burn-in | Customer spec |
Traceability | Batch-level records | Unit serialization + component lot tracking | QMS |
Lead Time | 5–10 days (five to ten days) | 24–48 h (twenty-four to forty-eight hours) quick-turn | Production schedule |
准备开始您的PCB项目了吗？
无论您需要简单的原型还是复杂的生产运行，我们先进的制造能力确保卓越的质量和可靠性。30分钟内获取您的报价。
Turnkey DFM/DFA/DFT Optimization Guidelines
Plan test access early: test points ≈0.75 mm diameter on 2.54 mm pitch (about zero point seven five millimeter on two point five four millimeters) support bed-of-nails ICT; tight designs can rely on flying probe or boundary scan. Align stencil design with package mix—see our stencil design notes—and control paste transfer ratio >0.66 (greater than zero point six six). For BGA, avoid open vias; use via-in-pad filled/planarized to keep coplanarity within ±25 μm (plus/minus twenty-five micrometers). For quoting transparency, review assembly quote guidance.
需要专家设计审查？
我们的工程团队提供免费的DFM分析和优化建议
Complete Turnkey Manufacturing Process Flow
Flow: BOM validation → sourcing → incoming IQC/MSL → SMT (print/SPI/place/reflow) → AOI/X-ray → THT (wave/selective) → cleaning/coating → test (ICT/FCT/boundary scan) → box build. Lead-free SAC305 profiles commonly peak at 245–250 °C (two hundred forty-five to two hundred fifty degrees Celsius) with time-above-liquidus 60–90 s (sixty to ninety seconds). Selective solder preheat 100–130 °C (one hundred to one hundred thirty degrees Celsius) protects nearby SMT with 3–5 mm keep-outs (three to five millimeters).
Lifecycle Management & Risk Mitigation
We monitor lifecycle and allocation trends, proposing alternates with form-fit-function checks. Long lead items receive buffer-stock recommendations (typically 4–8 weeks — four to eight weeks). Counterfeit risk is controlled by inspection and XRF/electrical screening. For RF or thermal constraints, coordinate materials with high-frequency PCB, Rogers PCB, or ceramic PCB teams.
Integrated Quality Systems & Performance Metrics
Workmanship per IPC-A-610 Class 2/3, with SPC dashboards tracking paste volume, placement offsets and FPY. AOI detects polarity/alignment; X-ray checks hidden joints (BGA voids ≤25% — less than or equal to twenty-five percent). Environmental stress (thermal cycling, vibration) and cleanliness testing support high-reliability programs. See PCBA quality control and ISO 9001 notes for documentation and audit readiness.
Value Engineering & Total Cost of Ownership
Panel utilization typically improves material efficiency by 10–20% (ten to twenty percent); consolidated procurement reduces component spend by 10–25% (ten to twenty-five percent). Unified project management lowers coordination overhead by 30–50% (thirty to fifty percent). Our BOM optimization and quote planning reveal early savings without compromising reliability.
准备优化您的PCB成本？
获得详细的成本分析和最大价值建议
Market-Specific Turnkey Solutions
Medical (ISO 13485) emphasizes DHR/traceability; automotive (IATF 16949) adds PPAP and extended environmental testing; aerospace (AS9100) extends documentation retention (10+ years — ten or more years). Telecom programs benefit from coordinating with high-speed PCB/backplane PCB for controlled-impedance builds. Consumer/IoT prioritize speed-to-market with NPI cycles of 4–8 weeks (four to eight weeks).
Engineering Assurance & Certifications
Experience: hundreds of turnkey ramps from EVT/DVT through MP with stable FPY.
Expertise: stencil/paste process control, BGA via-in-pad mitigation, selective solder windows, and DFT.
Authoritativeness: ISO 9001 baseline with workflows for IATF 16949 and ISO 13485; audits supported end-to-end.
Trustworthiness: MES ties reel IDs and lot codes to placements, reflow profiles and test data; quality packs include reports for functional testing and ICT coverage.
常见问题
What files are required for a turnkey quote?
How do you handle component obsolescence and allocation?
Can you support system-level testing and final configuration?
What lead times can I expect?
How is quality documented?
